33502PLATE SUB-ASSY, SHIFT LEVER

main33502-60060i199001-199208

main33502-60070i199001-199002

main33502-60071i199002-199208

main33502-60140i199208-200103

main33502-60150i199208

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×9i199001-199208

OD=8.8

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13018×2i199208

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-60010i199208-199303

main33055-60011i199303-200103

main33055-60020i199208-199303

main33055-60021i199303

main33503-60030i199001-199208

main33503-60040i199001-199208

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109×2i199001-199208

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20120-C0i199201-199208

BLACK,TRIM1#,4#; INTERIOR PACKAGE,BLACK,TRIM1#,4#

main33504-60070-01i199001-199201

BLACK,TRIM1#,4#

main33504-60080-01i199208-199501

BLACK,TRIM1#,4#

main33504-60090-01i199001-199201

BLACK,TRIM1#,4#

main33504-60100-01i199010-199208

MALAYSIA CKD SPEC,BLACK,TRIM1#,4#

main33504-60110-01i199001-199201

BLACK,TRIM1#,4#

main33504-60120-C0i199208-199308

BLACK,TRIM1#,4#; MALAYSIA CKD SPEC,BLACK,TRIM1#,4#; URETHANE,BLACK,TRIM1#,4#

main33504-60121-C0i199901-200103

MALAYSIA CKD SPEC,BLACK,TRIM1#

main33504-60130-C0i199208-199501

BLACK,TRIM1#,4#

main33542-20100-C0i199208-199901

BLACK,TRIM1#,4#

main33542-20140-C0i199603-199604

WINTER EDITION,BLACK,TRIM1#,4#

main33542-20150-C0i199208-199909

BLACK,TRIM1#,4#

main33542-20160-C0i199308-199909

INTERIOR PACKAGE,BLACK,TRIM1#,4#

main33542-32080-01i199001-199208

BLACK,TRIM1#,4#

main33542-32090-01i199001-199208

BLACK,TRIM1#,4#

main33542-60070-01i199001-199208

BLACK,TRIM1#,4#

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-60080i199001-199002

main33511-60081i199002-199208

main33511-60082i199303-200103

main33511-60090i199001-199208

main33511-60091i199303

33511BBUSH (FOR CONTROL SHAFT)

main90386-15003×2i199001-199208

33550BBOLT, W/WASHER (FOR FLOOR SHIFT)

main90119-06088×6i199001-199208

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i199208

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04014i199001-199208

33554CAP, SHIFT LEVER

main33554-60021i199001-199208

main33554-60040i199001-199208

main33554-60050i199001-199208

33555BOOT, SHIFT LEVER

main33555-60050i199001-199208

main33555-60070i199001-199011

main33555-60071i199208

33622BPLUG, SHIFT LEVER KNOB

main33622-60010i199001-199208

33622CPLUG, SHIFT LEVER KNOB, NO.2

main33622-60020i199001-199208

33623BUTTON, SHIFT LEVER KNOB

main33623-20060-C0i199208-199901

BLACK,TRIM1#,4#

main33623-20070-C0i199909

BLACK,TRIM4#

main33623-32050-01i199001-199208

BLACK,TRIM1#,4#

main33623-32060-01i199001-199208

BLACK,TRIM1#,4#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009i199001-199208

33625SLEEVE, SHIFT LEVER KNOB

main33625-32010i199208

33631ROD, DETENT

main33631-30060i199001-199208

main33631-60050i199208

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07074i199001-199208

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003i199001-199208

33635GUIDE, WIRE (FOR SHIFT LEVER)

main33635-60010i199001-199208

main33635-60030i199208

33647GWASHER, WAVE (FOR CONTROL LINK SHAFT)

main90206-17001i199002-199208

33711EBUSH (FOR CONTROL SHAFT LEVER)

main90389-08005i199001-199208

33711FLEVER, CONTROL SHAFT (FOR FLOOR SHIFT)

main33711-60030i199001-199208

33711HGROMMET (FOR CONTROL SHAFT LEVER)

main90480-17177i199001-199208

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010i199001-199208

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main90389-08005i199001-199208

33723TGROMMET (FOR CONNECTING ROD SWIVEL)

main90480-17177i199208

33886STOPPER, SHIFT LEVER

main33886-16010i199001-199208

35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)

main35569-60030i199001-199208

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-60070i199001-199208

main35906-60100i199208

35921PLATE, CONTROL POSITION INDICATOR

main35921-60050i199001-199208

main35921-60060i199001-199208

main35921-60100i199208-200103

main35921-60110i199208

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-60050i199001-199208

main35971-60060i199001-199208

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60050i199001-199208

main35974-60060i199001-199208

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-60050i199001-199208

main35975-60060i199208

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9046312570

main90463-12570

9046814017

main90468-14017

9056012050

main90560-12050

9094901039

main90949-01039

9331515012

main93315-15012

9411041000

main94110-41000

9413000802

main94130-00802

9451101000

main94511-01000

9451200800

main94512-00800

9461210800

main94612-10800

9461310800

main94613-10800

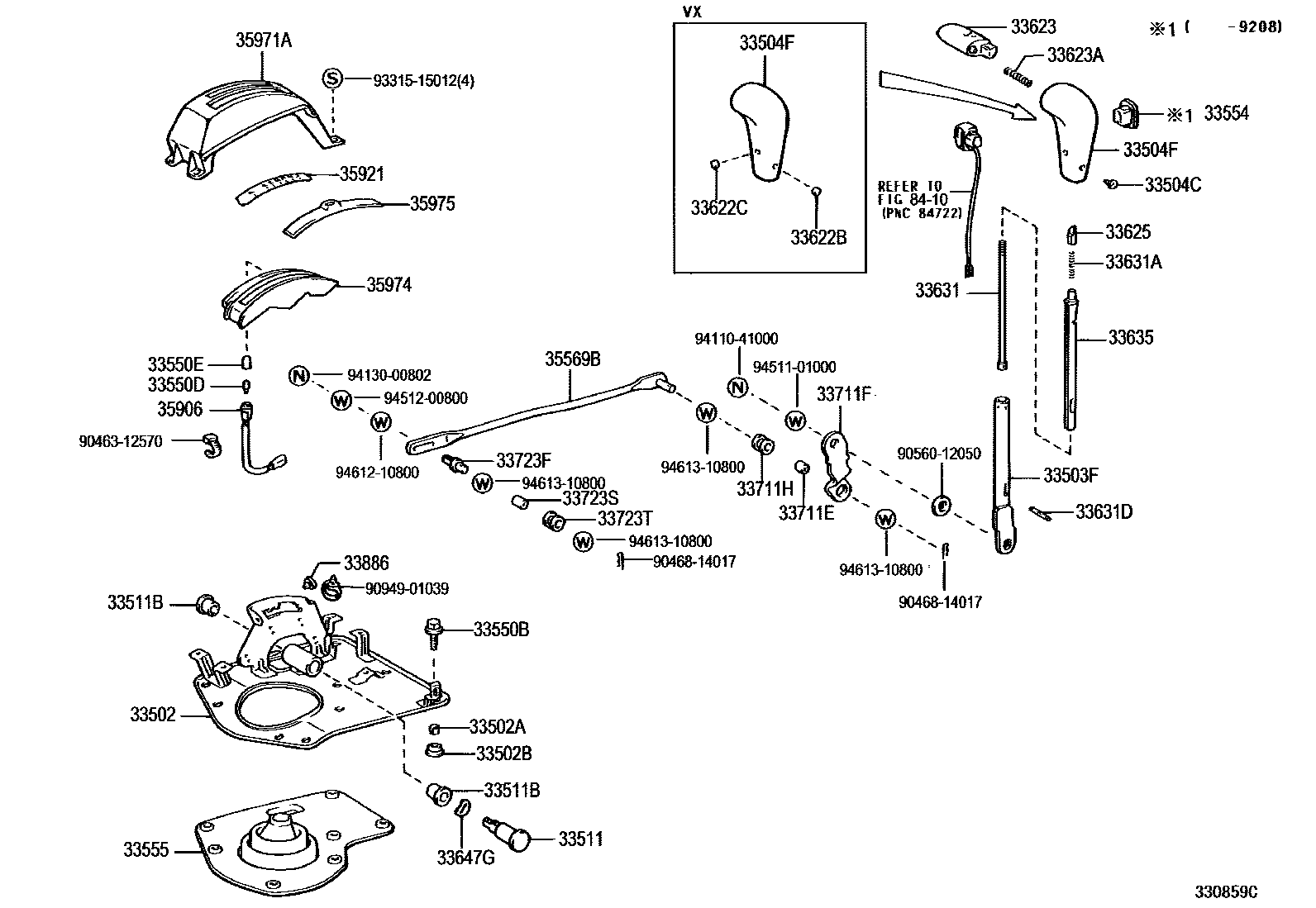

SHIFT LEVER & RETAINER
