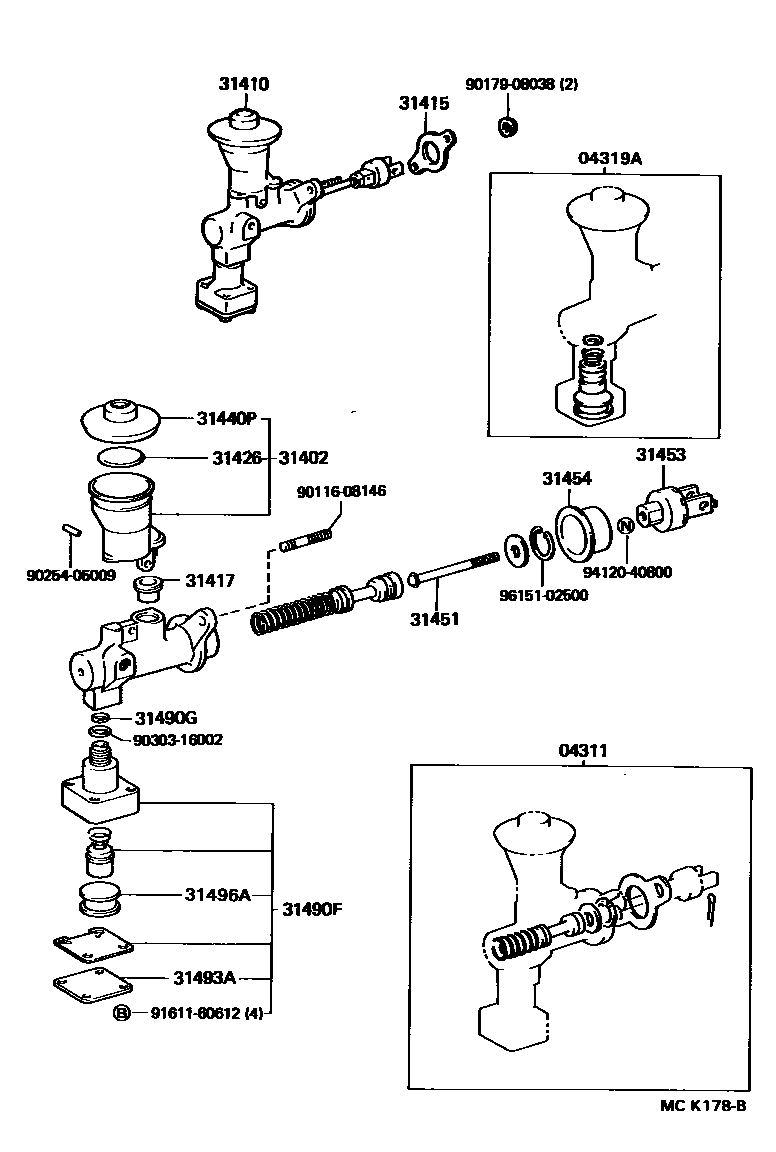

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0005 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iFZJ80..5F..GX..EFI;FZJ80..RHD..VX..CBR;FZJ80,HDJ80,HZJ80..5F..(GX,STD)..(CBR,DSL,TD2)199208-199501

TYPE A:REFER ILLUST.

main04311-60110iHDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX199208-199501

TYPE B:REFER ILLUST.

04319ACYLINDER KIT, CLUTCH ACCUMULATOR

main04319-36011iHDJ80,HZJ80..5F..VX199001-199009

main04319-60020iHDJ80,HZJ80..5F..(GX,STD)199208-199405

main04319-60030iHDJ80,HZJ80..5F..VX199208-199305

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iFZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)199001-199208

main31402-60030iHDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX199208-199501

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60050iFZJ80,HDJ80,HZJ80..LHD..5F..VX199208-199501

main31401-60070iHDJ80..RHD..5F..VX199208-199501

main31410-60350iFZJ80..RHD..VX;FJ80,FZJ80..MTM..(GX,STD)199001-199208

main31410-60370iHDJ80,HZJ80..5F..(GX,STD)199208-199307

main31410-60371iHDJ80,HZJ80..5F..(GX,STD)199307-199405

main31410-60372iHDJ80,HZJ80..5F..(GX,STD)199405-199501

main31410-60520iFZJ80..5F..GX..EFI199208-199501

main31410-60550iFZJ80..5F199501

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iFZJ80,HDJ80,HZJ80..5F199501

main47275-14010iHDJ80..5F..VX;FZJ80,HZJ80..LHD..5F..VX199208-199501

sub47275-26010

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iFJ80,FZJ80,HDJ80,HZJ80..MTM199001-199208

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iFJ80,FZJ80,HDJ80,HZJ80..MTM199001-199208

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iFJ80,FZJ80,HDJ80,HZJ80..MTM199001-199208

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

main31451-60080iFZJ80..5F..GX..EFI;FZJ80,HDJ80,HZJ80..5F..(GX,STD)..(CBR,DSL,TD2)199307-199501

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iFZJ80..5F199501

main31404-36031iHDJ80,HZJ80..5F..(GX,STD)199208-199307

main31453-35010iFZJ80..RHD..VX;FJ80,FZJ80..MTM..(GX,STD)199001-199208

main31453-60020iHDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX199001-199208

31454BOOT, CLUTCH MASTER CYLINDER

main31454-60020iFZJ80..5F..GX..EFI;FZJ80..RHD..VX..CBR;FZJ80,HDJ80,HZJ80..5F..(GX,STD)..(CBR,DSL,TD2)199208-199501

main47265-20050iHDJ80..5F..VX;FJ80,FZJ80,HZJ80..LHD..5F..VX199001-199208

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iHDJ80,HZJ80..5F199501-200103

main31490-60020iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

sub90430-16011

main31490-60030iHDJ80,HZJ80..5F..VX..GEN199001-199107

main31490-60031iHDJ80,HZJ80..LHD..5F..VX199208-199501

main31490-60040iHDJ80..5F..VX..ARL199001-199107

main31490-60041iHDJ80..RHD..5F..VX199107-199208

main31490-60090iFZJ80..5F..GX..EFI199208-199501

sub31490-60091

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-09253iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

main90430-16005iHDJ80,HZJ80..5F..(GX,STD)199405-199501

31493ABRACKET, CLUTCH ACCUMULATOR

main31493-27030iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

main31493-60010iHDJ80,HZJ80..LHD..5F..VX199001-199208

main31493-60020iHDJ80..RHD..5F..VX199208-199501

31496ACUSHION, CLUTCH ACCUMULATOR

main31496-35020iHDJ80,HZJ80..5F..(GX,STD)199208-199405

9011608146

main90116-08146

9017908038

main90179-08038

9025405009

main90254-05009

9030316002

main90303-16002

9161160612

main91611-60612

9412040800

main94120-40800

9615102500

main96151-02500

22 parts on this diagram · 4 diagrams in section
