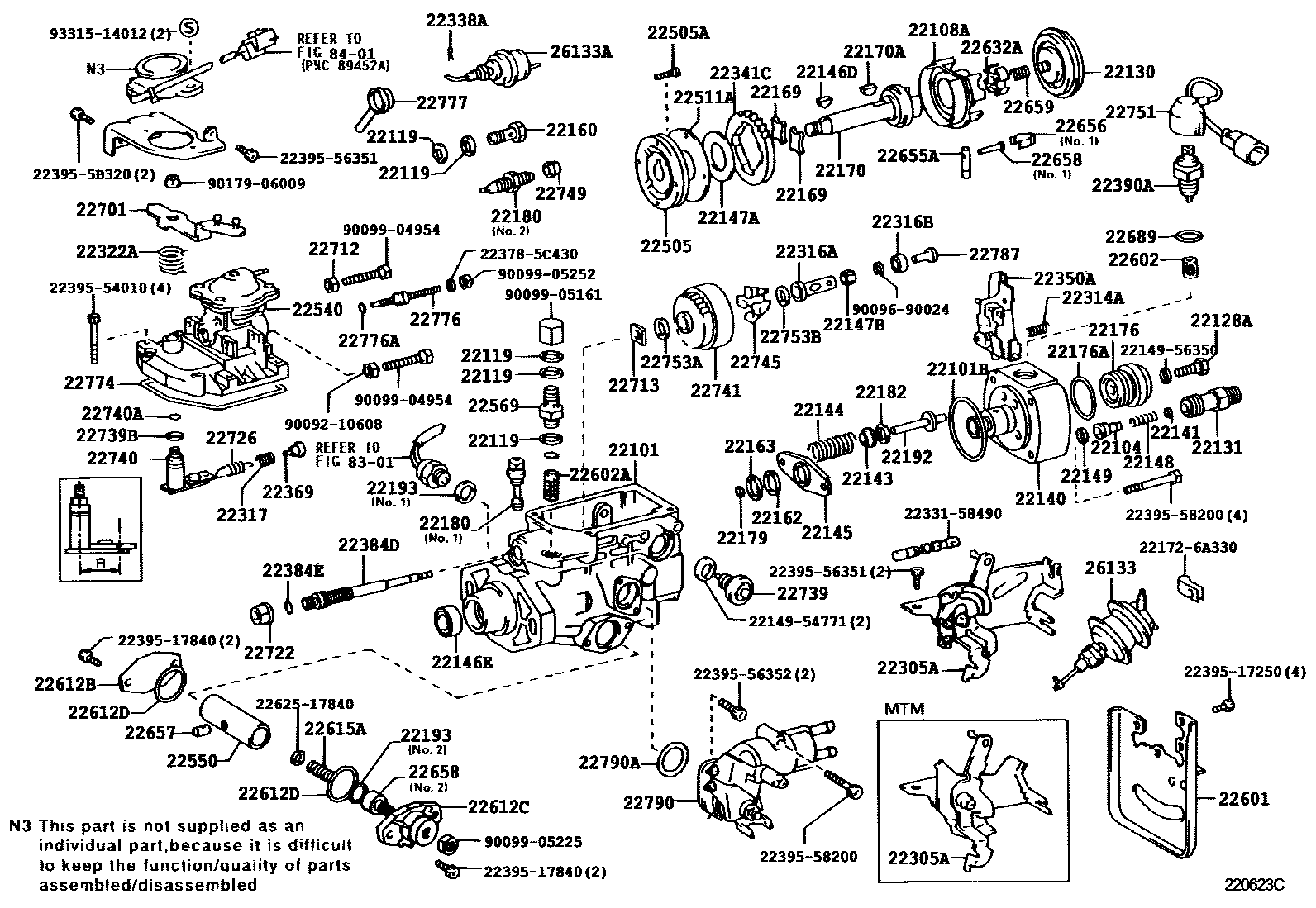

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICKUP); W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA SPEC
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
COLD AREA SPEC
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.92
T=1.94
T=1.96
T=1.98
T=2.02
T=2.04
T=2.06
T=2.08
T=2.12
T=2.14
T=2.16
T=2.18
T=2.22
T=2.24
T=2.26
T=2.28
T=2.32
T=2.34
T=2.36
T=2.38
T=2.42
T=2.44
T=2.46
T=2.48
T=2.52
T=2.54
T=2.56
T=2.58
T=2.62
T=2.64
T=2.66
T=2.68
T=2.72
T=2.74
T=2.76
T=2.78
T=2.82
T=2.84
T=2.86
T=2.88
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=1.91
T=1.93
T=1.97
T=1.99
T=2.01
T=2.03
T=2.07
T=2.09
T=2.11
T=2.13
T=2.17
T=2.19
T=2.21
T=2.23
T=2.27
T=2.29
T=2.31
T=2.33
T=2.37
T=2.39
T=2.41
T=2.43
T=2.47
T=2.49
T=2.51
T=2.53
T=2.57
T=2.59
T=2.61
T=2.63
T=2.67
T=2.69
T=2.71
T=2.73
T=2.77
T=2.79
T=2.81
T=2.83
T=2.87
T=2.89
T=2.91
T=2.92
T=2.93
T=2.96
T=2.97
T=2.98
T=3.01
T=3.02
T=3.03
T=3.06
T=3.07
T=3.08
T=3.11
T=3.12
T=3.13
T=3.16
T=3.17
T=3.18
T=1.95
T=2.05
T=2.15
T=2.25
T=2.35
T=2.45
T=2.55
T=2.65
T=2.75
T=2.85
T=2.94
T=2.99
T=3.04
T=3.09
T=3.14
T=3.19
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.2
NO.2
NO.1
NO.1
W(HIGH ALTITUDE COMPENSATOR); W(HIGH ALTITUDE COMPENSATOR),NO.1
NO.1
main22180-58200i1HZ..HZJ80..GCC,GEN;1HZ..HZJ80..STD..ARL; 1HZ..HZJ80..GX..ARL; 1HZ..HZJ80..STD..ARL199001-199208
NO.1; W(TACHOMETER PICK UP),NO.1
NO.2; W(TACHOMETER PICK UP),NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
main22193-17020×2i1HZ..HZJ80..GX..ARL; 1HZ..HZJ80..GX..GCC;1HZ..HZJ80..RHD..5F..STD..GEN; 1HZ..HZJ80..STD..ARL; 1HZ..HZJ80..STD..GEN; 1HZ..HZJ80..STD;1HZ..HZJ80..GX..GCC; 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,VX)..GEN199109-199208
NO,1; NO.1; W(HIGH ALTITUDE COMPENSATOR),NO.1; W(TACHOMETER PICK UP),NO,1; W(TACHOMETER PICK UP),NO.1
main22193-55031i1HZ..HZJ80..4FC;1HZ..HZJ80..STD..GEN; 1HZ..HZJ80..RHD..5F..GEN;1HZ..HZJ80..LHD..MTM..LUB199108-199208
W(HIGH ALTITUDE COMPENSATOR),BELLOWS COMPONENT; W(HIGH ALTITUDE COMPENSATOR),NO.3
W(HIGH ALTITUDE COMPENSATOR &TACHOMETER PICK UP),PUMP HOUSING SIDE; W(TACHOMETER PICK UP)
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.60
ID=0.65
ID=0.70
ID=1.10
ID=1.30
ID=1.20
ID=0.00 & 0.5,W(HIGH ALTITUDE COMPENSATOR)
ID=0.00 & 1.0,W(HIGH ALTITUDE COMPENSATOR)
ID=0.80
ID=0.90
ID=1.20
ID=0.75
ID=0.85
MARK 157
MARK 158,SWING OUT BACK DOOR EDITION(PHILIPPINES)
MARK 159
ID=0.5 & 0.7
ID=0.5 & 0.75
ID=0.5 & 0.8
MARK 163,*HAC
MARK 160
MARK 161
MARK 162
ID=1.0 & 0.7
ID=1.0 & 0.75
ID=1.0 & 0.8
ID=0.625
ID=0.625
ID=0.55
ID=0.6
ID=0.65
ID=0.55
ID=0.6
ID=0.65
ID=1.00; ID=1.00,SPEED METER+COMBI METER
MARK 26
MARK 28
ID=0.75
MARK 45,W(HIGH ALTITUDE COMPENSATOR)
ID=1.35 & 2,L=11.6
MARK 23,*HAC
ID=0.8
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.15,L=7.3
K=0.08,L=6.5
22322ASPRING, RETURN
22338APIN, LEVER CONNECTING
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
W(TACHOMETER PICK UP)
W(HIGH ALTITUDE COMPENSATOR)
SWING OUT BACK DOOR EDITION(PHILIPPINES)
22369SEAT, GOVERNOR SPRING
22384DSHAFT, GOVERNOR
W(HIGH ALTITUDE COMPENSATOR)
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22540COMPENSATOR SUB-ASSY, BOOST
W(HIGH ALTITUDE COMPENSATOR)
SWING OUT BACK DOOR EDITION(PHILIPPINES)
W(HIGH ALTITUDE COMPENSATOR)
22550PISTON ASSY, TIMER
22569SCREW, OVERFLOW
22601BRACKET SUB-ASSY, IDLE UP
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
main22193-17840×2i1HZ..HZJ80..LHD..SOB;1HDFT,1HZ..HDJ80,HZJ80..RHD;1HDT,1HZ..HDJ80,HZJ80..5F..VX..GEN199503-199607
COLD AREA SPEC
22615ASPRING, TIMER OUTER
K=0.18,L=33.8
K=0.19,L=33.7
K=0.20,L=33.6
K=0.16,L=32.3
K=0.18,L=32.0,NO.1
K=0.20,L=31.8,NO.1
K=1.7,L=27.9
K=2.50
K=2.80
K=3.10
K=3.40
K=2.00,W(HIGH ALTITUDE COMPENSATOR)
K=2.30,W(HIGH ALTITUDE COMPENSATOR)
K=2.60,W(HIGH ALTITUDE COMPENSATOR)
K=1.90,W(HIGH ALTITUDE COMPENSATOR)
K=2.10,W(HIGH ALTITUDE COMPENSATOR)
K=2.30,W(HIGH ALTITUDE COMPENSATOR)
K=2.50,W(HIGH ALTITUDE COMPENSATOR)
K=2.70,W(HIGH ALTITUDE COMPENSATOR)
K=1.08,SWING OUT BACK DOOR EDITION(PHILIPPINES),NO.1
K=1.18,SWING OUT BACK DOOR EDITION(PHILIPPINES),NO.1
K=1.27,SWING OUT BACK DOOR EDITION(PHILIPPINES),NO.1
K=1.37,SWING OUT BACK DOOR EDITION(PHILIPPINES),NO.1
K=1.96,NO.1
K=2.16,NO.1
K=1.77,NO.1
K=1.57,NO.1
K=9.1
K=5.7
K=0.16,L=34.2
K=0.17,L=31.4
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.1
NO.1
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
NO.1
NO.1
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 383
MARK 384
MARK 381
MARK 382
ANGLE=0.0
ANGLE=5.0
ANGLE=10.0
MARK 555
MARK 556
MARK 557
MARK 528
MARK 529
MARK 530
MARK 247
MARK 290
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22726SPRING, SPEED CONTROL
K=0.25
K=0.28
22739BOLT, GOVERNOR LINK SUPPORT
22739BWASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
R=20.0
R=15.5
R=13.3
R=17.5
R=23
R=14.5
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
COLD AREA SPEC
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
main22751-17140i1HZ..HZJ80..STD..ARL; 1HZ..HZJ80..VX..GCC;1H#..HDJ80,HZJ80..(GX,VX)..(ARL,GEN)199001-199208
W(TACHOMETER PICK UP)
W(FUEL SUB TANK); W(TACHOMETER PICK UP)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22777CAP, RUBBER(FOR BELLOWS)
NO.2
NO.1
NO.3
22787PLUG, GOVERNOR SLEEVE
L=4.4
L=4.6
L=4.8
L=4.9
L=5.0
L=5.1
L=5.2
L=5.3
L=5.4
L=5.5
L=5.6
L=5.7
L=5.8
L=2.1
L=2.5
L=2.9
L=3.3
L=3.7
L=4.1
L=4.5
L=4.9
L=2.8
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.3
L=4.5
L=4.7
L=5.9
L=6.0
L=6.1
L=6.2
L=6.3
L=6.4
L=6.5
L=6.6
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
COLD AREA SPEC
22790ARING, O(FOR TIMER COVER)
COLD AREA SPEC
26133ACTUATOR SET, IDLE-UP
26133AACTUATOR SET, IDLE-UP
8301METER
8401SWITCH & RELAY & COMPUTER
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956350GASKET, DELIVERY VALVE
main22149-56350
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
2233158490LEVER, GOVERNOR STOP
main22331-58490
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239517250BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-17250
2239517840BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-17840
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
223955B320BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B320
2262517840WASHER, TIMER SENSOR ADJUSTING
main22625-17840
9009210608
main90092-10608
9009690024
main90096-90024
9009904954
main90099-04954
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9017906009
main90179-06009
9331514012
main93315-14012
112 parts on this diagram · 7 diagrams in section
