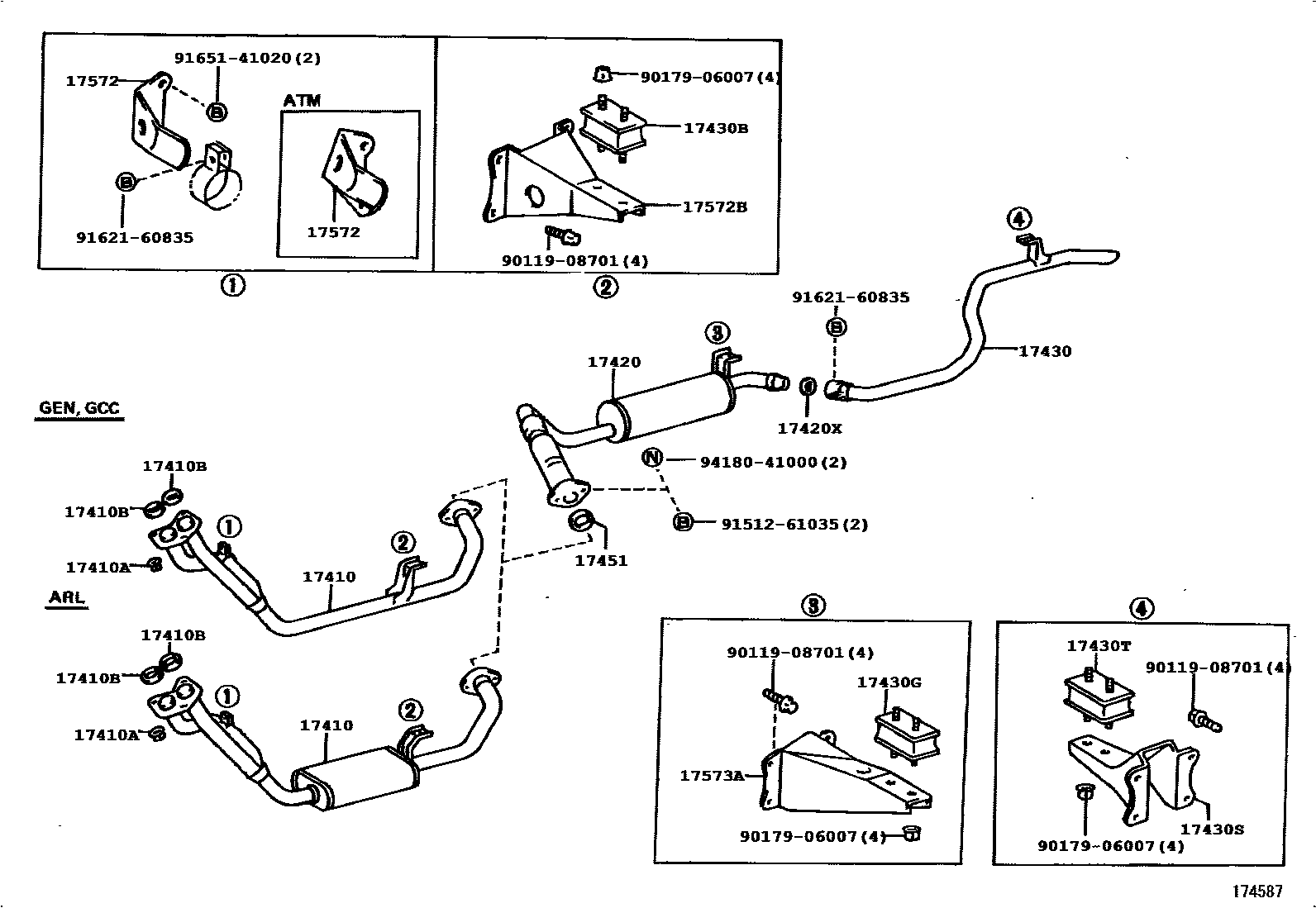

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
MALAYSIA CKD SPEC
MALAYSIA CKD SPEC
NO.1
NO.2
NO.2
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
W(CONVERTER),FRONT
FRONT
FRONT
REAR
W(CONVERTER),REAR
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
NO.1
NO.2
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9011908701
main90119-08701
9017906007
main90179-06007
9151261035
main91512-61035
9162160835
main91621-60835
9165141020
main91651-41020
9418041000
main94180-41000
20 parts on this diagram · 5 diagrams in section
