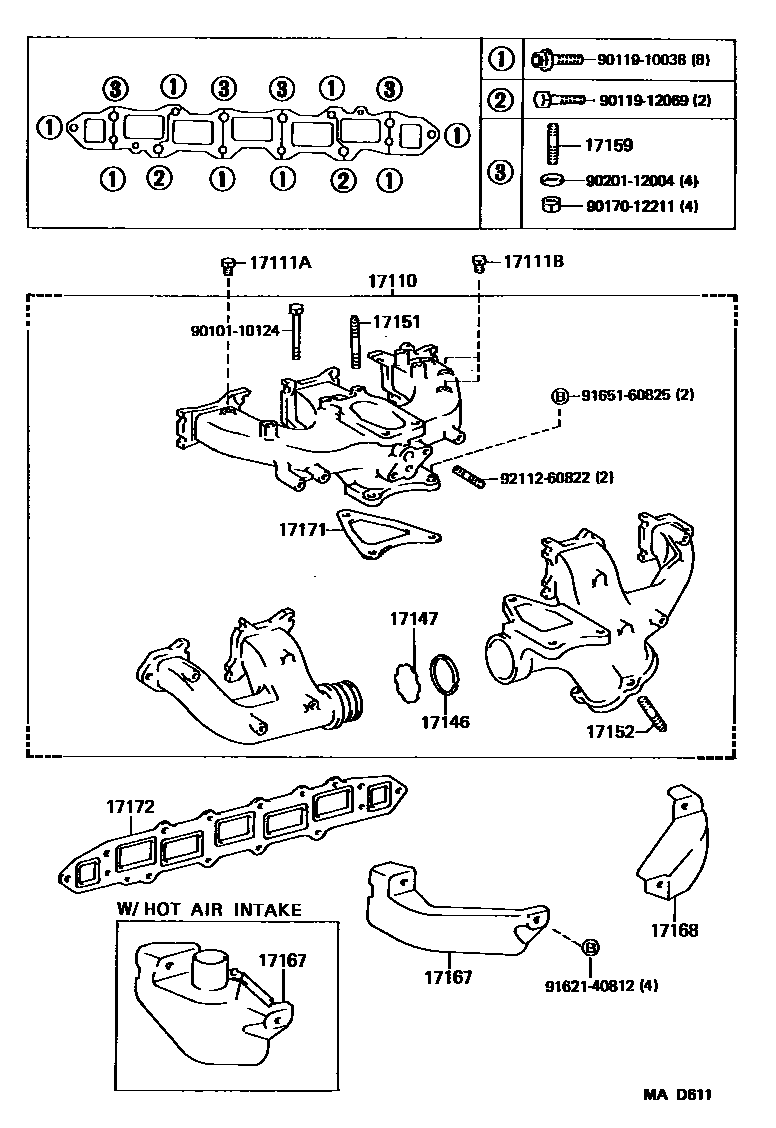

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17110MANIFOLD ASSY

main17100-61100i3F..FJ80199001-199208

17111MANIFOLD, INTAKE

main17101-17020i1HDFT..HDJ80199501-199801

main17101-66010i1FZF..FZJ80199208-200109

main17101-66020i1FZFE..FZJ80..4FC199901

main17111-17010i1H#..HDJ80,HZJ80199001-199206

main17111-17011i1HDT,1HZ..HDJ80,HZJ80199208-199709

main17111-17012i1HDT,1HZ..HDJ80,HZJ80199709-199805

main17111-17013i1H#..HDJ80,HZJ80199805-199905

main17111-17014i1H#..HDJ80,HZJ80199905-200002

main17111-17015i1H#..HDJ80,HZJ80200002-200103

main17111-61040i3FE..FJ80199001-199208

17111APLUG, NO.1

main90345-51006i3F..FJ80..ARL,GEN;3F..FJ80..4FC..GX..GCC199001-199208

17111BPLUG, NO.2

main90345-51006i3F..FJ80..VX..GCC;3F..FJ80..4FC..GX..GCC199001-199201

17146RING, EXHAUST MANIFOLD

main17151-17010×2i1HD#,1HZ..HDJ80,HZJ80199208-200103

main17151-61010i3F..FJ80199001-199208

17147SPRING, EXHAUST MANIFOLD

main17152-61010i3F..FJ80199001-199208

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08042×4i3F..FJ80199001-199208

main90116-08371×4i1FZF..FZJ80199201-199208

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10087×3i3F..FJ80199001-199208

main90126-10006×4i1FZ#..FZJ80199208

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10025×12i1H#..HDJ80,HZJ80199001-199002

main90116-10169×13i1FZ#..FZJ80199208

EXHAUST MANIFOLD

main90116-10171×12i1HD#,1HZ..HDJ80,HZJ80199208-200103

main90116-12011×4i3F#..FJ80199001-199208

main90126-08008×2i1FZ#..FZJ80199208

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-17010i1HZ..HZJ80199208-199802

main17167-17011i1HZ..HZJ80199802-200103

main17167-17020i1HDT..HDJ80199001-199206

main17167-17021i1HDT..HDJ80199208-199803

main17167-17022i1HDT..HDJ80199803-200103

main17167-17050i1HDFT..HDJ80199501-199801

sub17167-17051

main17167-61040i3F..FJ80199001-199208

main17167-61050i3F..FJ80..GX..ARL199001-199208

NEW ZEALAND SPEC

main17167-61070i3FE..FJ80199001-199208

main17167-66030i1FZF..FZJ80..GEN199208-200109

main17167-66040i1FZF..FZJ80..GCC199201-199208

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-61020i3F..FJ80199001-199208

main17168-61030i3FE..FJ80199001-199208

main17168-66020i1FZF..FZJ80199201-199208

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-17010i1H#..HDJ80,HZJ80199001-199208

main17171-17020×2i1HDFT..HDJ80199501-199801

main17171-61020i3F..FJ80199001-199208

main17171-66010i1FZFE..FZJ80199208-199901

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-61060i3FE..FJ80199001-199208

main17172-61070i3F..FJ80199001-199208

9010110124

main90101-10124

9011910038

main90119-10038

9011912069

main90119-12069

9017012211

main90170-12211

9020112004

main90201-12004

9162140812

main91621-40812

9165160825

main91651-60825

9211260822

main92112-60822

21 parts on this diagram · 9 diagrams in section
