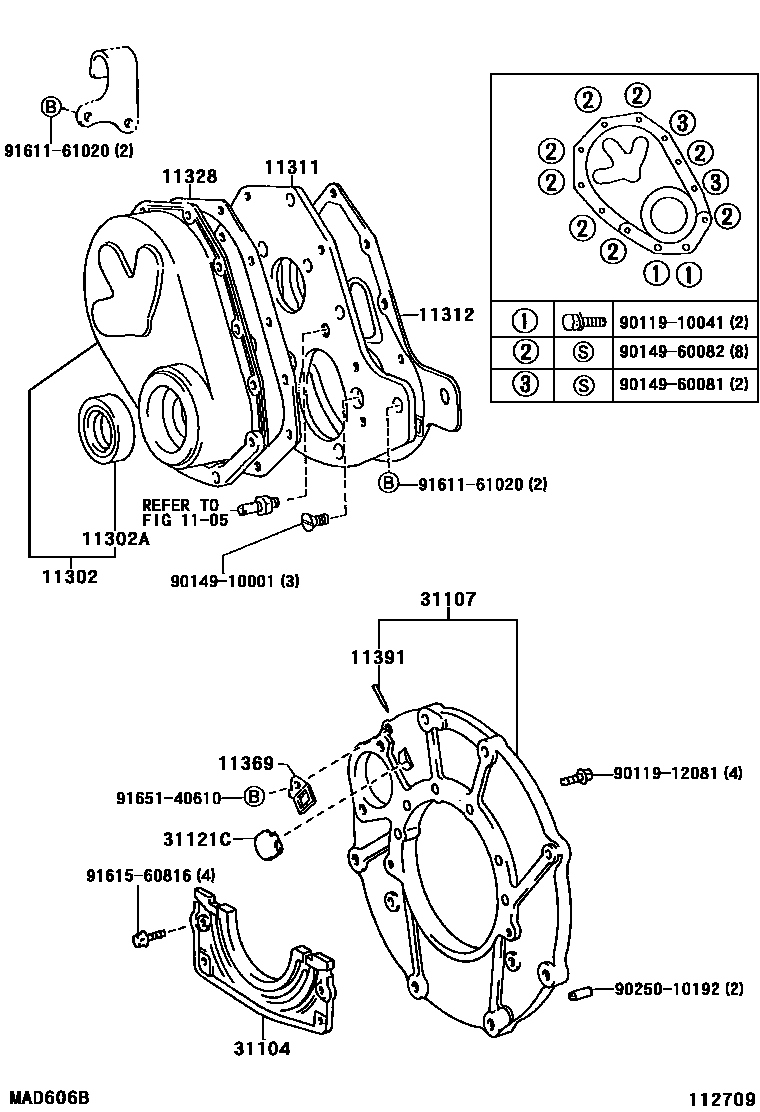

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-61031i3F#..FJ80199001-199208

main11310-66020i1FZF..FZJ80199201-199208

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45008i3F#..FJ80199001-199208

main90311-52022i1FZ#..FZJ80199208

main90311-58006i1H#..HDJ80,HZJ80199801-200103

NO.1

main90311-58007i1H#..HDJ80,HZJ80199001-199208

NO.2

11311PLATE, FRONT END

main11311-61020i3F#..FJ80199001-199208

11312GASKET, FRONT END PLATE

main11312-61021i3F#..FJ80199001-199208

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-17010i1HDT,1HZ..HDJ80,HZJ80199208-199801

main11328-17020i1HDFT..HDJ80199501-199503

main11328-17021i1HDFT..HDJ80199503-199512

main11328-17022i1HDFT..HDJ80199512-199801

main11328-61010i3F#..FJ80199001-199208

main11328-66020i1FZ#..FZJ80199208

11369COVER, FLYWHEEL HOUSING FRONT

main11369-60011i3F#..FJ80..4FC199001-199208

11391POINTER, TIMING

main11391-60040i3F..FJ80..MTM199001-199208

31104COVER SUB-ASSY, CLUTCH HOUSING UNDER

main31104-60040iFJ80..MTM199001-199208

31107PLATE SUB-ASSY, CLUTCH HOUSING ADAPTER

main31107-60010iFJ80..MTM199001-199006

main31107-60011iFJ80..MTM199006-199208

31121CCOVER, CLUTCH HOUSING ADAPTER PLATE

main31121-60030iFJ80..MTM199001-199208

9011910041

main90119-10041

9011912081

main90119-12081

9014910001

main90149-10001

9014960081

main90149-60081

9014960082

main90149-60082

9025010192

main90250-10192

9161161020

main91611-61020

9161560816

main91615-60816

9165140610

main91651-40610
