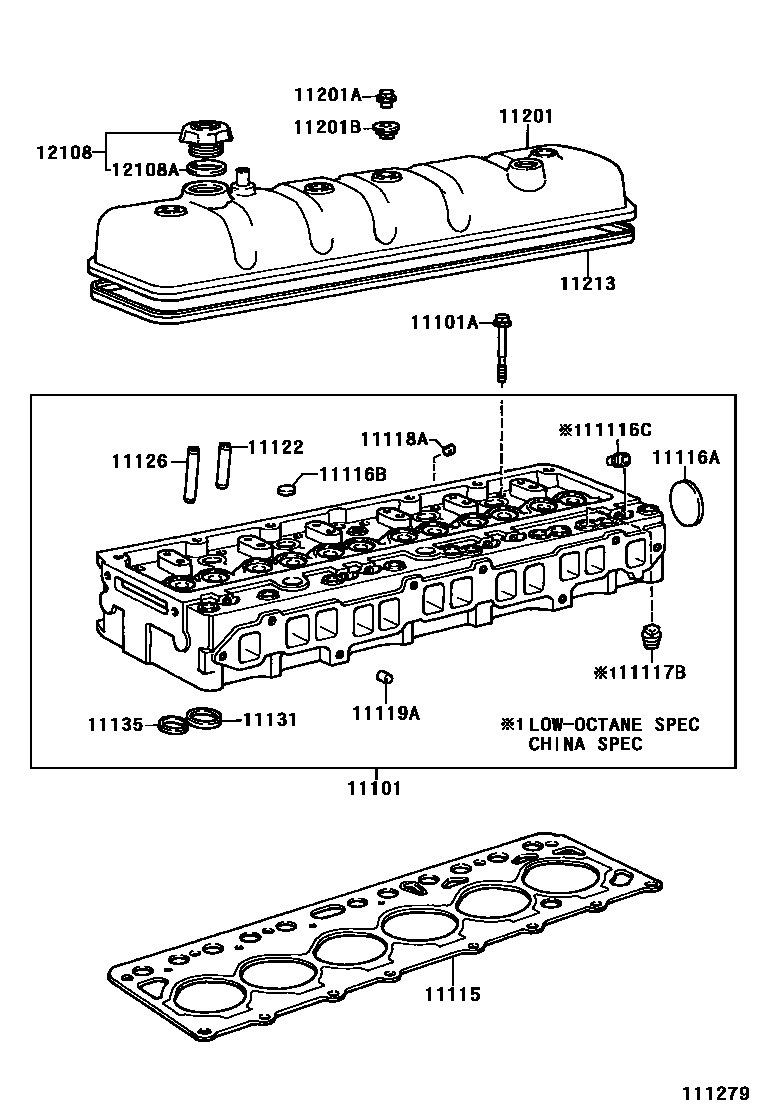

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-17011
sub11101-17012
sub11101-17041
W/O(EXHAUST EMISSION CONTROL)
sub11101-69096
sub11101-69097
COLOMBIA SPEC OR VENEZUELA SPEC
11101ABOLT(FOR CYLINDER HEAD SET)
W(AIR CONDITIONER)
W(AIR CONDITIONER),TYPE A
TYPE A
TYPE B
W(AIR CONDITIONER),TYPE B
NO.1
NO.2
11115GASKET, CYLINDER HEAD
MARK 1,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
T=1.40
sub11115-66030
sub11115-66031
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
EXHAUST EMISSION CONTROL(LOW OCTANE)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
EXHAUST EMISSION CONTROL(LOW OCTANE)
11118APLUG, STRAIGHT, NO.1
11119APIN, STRAIGHT, NO.1
L=18,OD=8
L=53.5,OD=9
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
19 parts on this diagram · 6 diagrams in section
