ENGINE OVERHAUL GASKET KIT

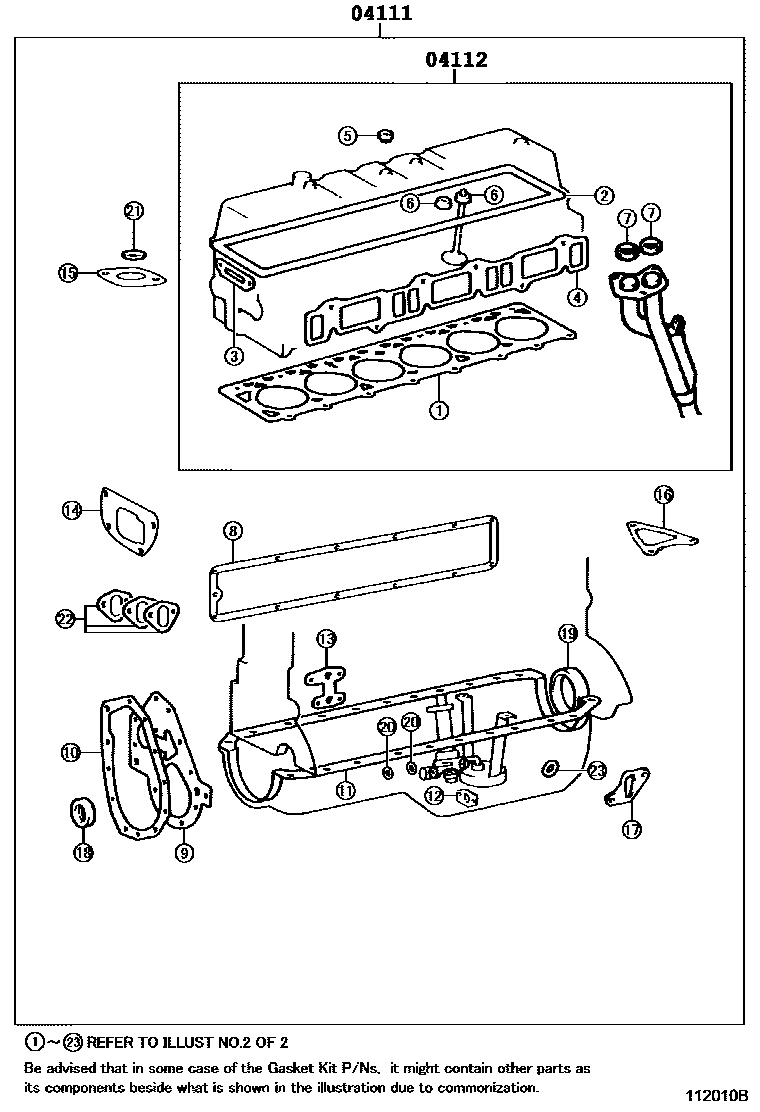

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i199208-199705

main04111-17011i199705-199707

main04111-17012i199707-200103

main04111-17020i199001-199208

main04111-17021i199501-199707

main04111-17022i199707-200103

main04111-17040i199501-199507

main04111-17041i199507-199801

main04111-61080i199001-199208

main04111-61090i199001-199110

main04111-61091i199110-199208

main04111-66030i199208-199803

main04111-66031i199803-199906

main04111-66033i199906-199908

main04111-66034i199908-200404

main04111-66040i199201-199208

main04111-66041i199803-199906

main04111-66043i199906-199908

main04111-66044i199908-200109

main04111-66060i200404

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i199208-199705

main04112-17011i199705-199707

main04112-17012i199707-200103

main04112-17020i199001-199208

main04112-17021i199707-200103

main04112-17040i199501-199507

main04112-17041i199507-199801

main04112-61070i199001-199208

main04112-61080i199001-199110

main04112-61081i199110-199208

main04112-66020i199208-199803

main04112-66021i199803-199906

main04112-66023i199906-199908

main04112-66024i199908-200109

main04112-66030i199208-199803

main04112-66031i199803-199906

main04112-66033i199906-199908

main04112-66034i199908-200404

main04112-66050i200404

2 parts on this diagram · 14 diagrams in section
