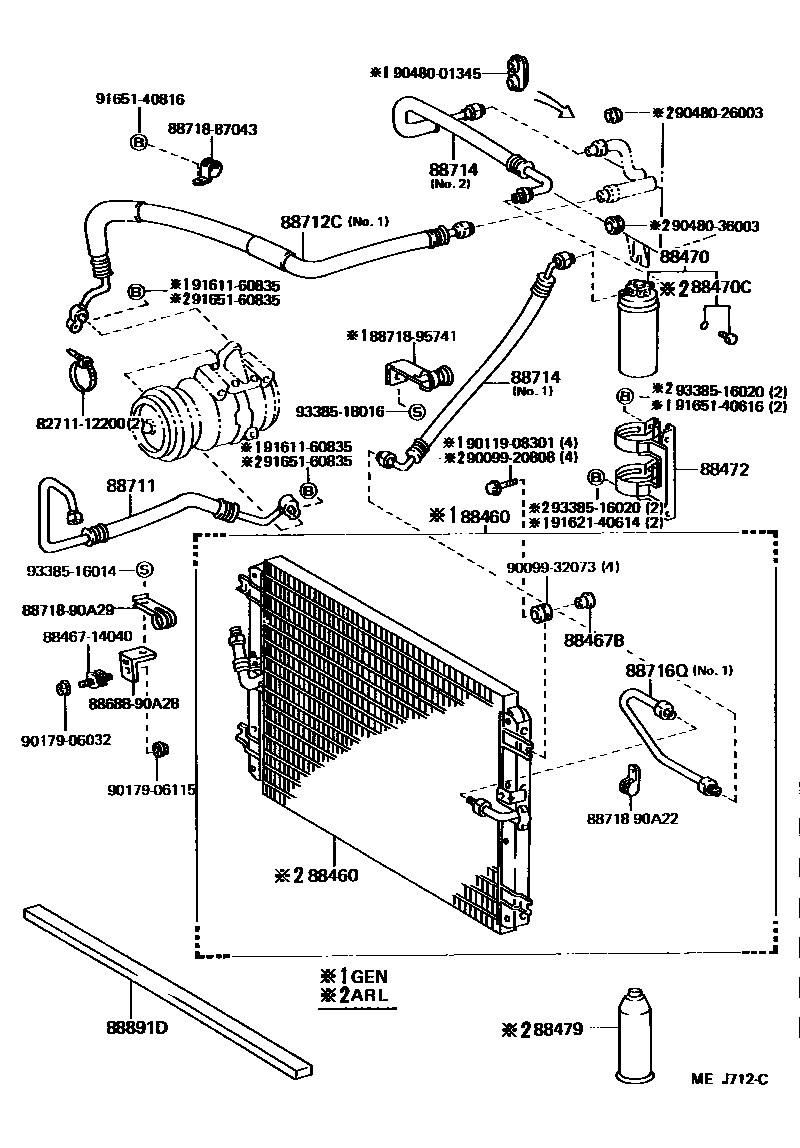

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1DUAL AIR CONDITIONER 0008 1DUAL AIR CONDITIONER 0009 1DUAL AIR CONDITIONER 0010 1DUAL AIR CONDITIONER 0011 1DUAL AIR CONDITIONER 0012 1DUAL AIR CONDITIONER 0013 1COOL BOX

88460CONDENSER ASSY, COOLER

main88460-90A10iFJ62..LUB..ARL; FJ62..STD..ARL198708-199001

W(SINGLE AIR CONDITIONER)

main88460-90A11iHJ6#..LUB..ARL; HJ60..STD..ARL198708-199001

W(SINGLE AIR CONDITIONER)

main88460-90A12iBJ60,FJ62..RHD..GEN; FJ62..HRF..ARL; FJ62..SRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER)

main88460-90A13iHJ6#..SRF..GX..ARL; HJ60..RHD..GEN; HJ61..HRF198708-199001

W(DUAL AIR CONDITIONER)

main88460-90A14iBJ60,FJ62..LHD198708-199203

main88460-90A15iHJ60..LHD198708-199001

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88469-22010×4iBJ60,FJ62,HJ6#198708-199203

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iBJ60;FJ62..ME;HJ60..5F..SOB;FJ62..STD..ARL;HJ60..LHD..STD198708-199001

main88471-30280iHJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203

W(DUAL AIR CONDITIONER)

88470CBOLT, FUSE

main88475-12020iFJ62,HJ6#..ARL198708-199001

88472BRACKET, RECEIVER TANK, NO.1

main88472-90A00iBJ60..RHD;FJ62,HJ60..STD..ARL; HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC)198708-199001

W(SINGLE AIR CONDITIONER)

main88472-90A01iBJ60,FJ62,HJ60..LHD198708-199203

main88472-90A04iFJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

W(DUAL AIR CONDITIONER)

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004×2iFJ62,HJ6#..ARL198708-199001

250G

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-90A09iFJ62..ARL,GEN198808-199203

main88711-90A10iHJ6#198708-199001

main88711-90A11iBJ60198708-199001

main88711-90A13iFJ62..ME198808-199001

88712CHOSE, SUCTION

main88712-90A09iFJ62..LHD..GEN198708-199203

main88712-90A10iBJ60..RHD198708-199001

main88712-90A11iBJ60..LHD198708-198808

main88712-90A12iHJ60..RHD..GEN198708-199001

main88712-90A13iHJ60..LHD..LUB198708-199001

main88712-90A15iFJ62..5F..HRF..GEN;FJ62..5F..HRF..VX..ME;FJ62..LHD..(4F,4FC)..HRF198708-199001

NO.1

main88712-90A16iHJ60..GX..ARL;HJ60..RHD..GEN198708-199001

NO.1

main88712-90A17iHJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX198708-199001

NO.2

main88712-90A20iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88712-90A21iHJ61..HRF; HJ61..SRF198708-199001

NO.1

main88712-90A22iHJ60..HRF; HJ60..LHD..SRF..LUB198708-199001

NO.1

main88712-90A23iHJ6#..LUB..ARL; HJ60..STD..ARL198708-199001

main88712-90A24iHJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)198708-199001

NO.3

main88712-90A28iFJ62..HRF..ARL; FJ62..RHD..5F..SRF..GX;FJ62..RHD..(4F,4FC)..SRF; FJ62..STD..ARL198708-199001

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-90A01iBJ60..RHD;FJ62,HJ60..STD..ARL; HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC)198708-199001

NO.2

main88721-90A05iFJ62..RHD..5F..LUB;FJ62..RHD..(4F,4FC); FJ62..STD..ARL198708-199001

NO.1

main88721-90A07iFJ62,HJ60..HRF..GX..GEN; FJ62..ME;BJ60,HJ60..LHD..SOB;FJ62..LHD..STD..GEN198708-199001

NO.1

main88721-90A08iFJ62,HJ60..LHD..SRF..(GX,VX)..GEN198708-199203

NO.2

main88721-90A12iBJ60..RHD;HJ60..STD..ARL; HJ6#..LUB..ARL;HJ60..RHD..GEN198708-199001

NO.1

main88721-90A14iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88721-90A15iFJ62..LHD..STD..GEN; HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..GX..(ARL,GEN)198708-199001

NO.4

main88721-90A17iHJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..RHD..STD..GEN;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..SRF..LUB;HJ6#..(4FC,5F)..SRF..LUB;FJ62..5F..SRF..GX..(ARL,GEN)198708-199203

NO.5

88716QPIPE, COOLER REFRIGERANT LIQUID, Q

main88716-90A15iFJ62..5F..HRF..VX..ME;FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..(4F,4FC)..HRF198708-199001

NO.4

main88716-90A18iFJ62..5F..SRF..VX;HJ60..LHD..SRF..LUB;FJ62..LHD..SRF..SOB..GEN;FJ62..LHD..5F..SRF..LUB..GEN;FJ62..LHD..(4F,4FC)..SRF..LUB198708-199203

NO.5

main88716-90A30iHJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)198708-199001

NO.8

main88716-90A31iFJ62,HJ61..HRF..ARL;FJ62,HJ60..RHD..GX..GEN198708-199001

COOL BOX

main88716-90A32iFJ62..SOB..VX;HJ60..LHD..LUB;FJ62..SOB..GX..GEN;FJ62..5F..LUB..VX..ME;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..(4F,4FC)..LUB198708-199203

COOL BOX

main88716-90A38iHJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX198708-199001

NO.7

main88716-90A39iHJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203

NO.9

main88716-90A40iFJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

NO.2

main88716-90A41iBJ60..RHD;FJ62..STD..ARL; FJ62..HRF..ARL; FJ62..RHD..5F..SRF..GX;FJ62..RHD..(4F,4FC)..SRF198708-199001

NO.1

main88716-90A42iHJ60..RHD..GEN;HJ6#..SRF..GX..ARL; HJ60..STD..ARL; HJ61..HRF198708-199001

NO.1

main88716-90A43iFJ62..HRF..GEN; FJ62..ME;BJ60..LHD198708-199001

NO.1

main88716-90A44iHJ60..HRF; HJ60..LHD..SRF..LUB198708-199001

NO.1

main88716-90A46iFJ62,HJ60..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF; FJ62..4FC..VX..ARL;FJ62..HRF..GX..ARL198708-199001

NO.4

main88716-90A47iHJ61..HRF; HJ61..SRF198708-199001

NO.4

main88716-90A48iHJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF; HJ61..HRF;FJ62..4FC..VX..ARL;FJ62..HRF..GX..ARL198708-199001

NO.5

main88716-90A49iHJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF; HJ61..HRF;FJ62..4FC..VX..ARL;FJ62..HRF..GX..ARL198708-199001

NO.6

main88716-90A50iFJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

NO.3

88891DPACKING D (FOR COOLER)

main88578-90A01iFJ62..LUB..ARL; FJ62..STD..ARL198708-199001

W(SINGLE AIR CONDITIONER)

main88578-90A02iFJ62..HRF..ARL; FJ62..SRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER)

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8868890A28BRACKET, COOLER DIAPHRAGM

main88688-90A28

8871887043PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87043

8871890A22PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90A22

8871890A29PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90A29

8871895741PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95741

9009920808

main90099-20808

9009932073

main90099-32073

9011908301

main90119-08301

9017906032

main90179-06032

9017906115

main90179-06115

9048001345

main90480-01345

9048026003

main90480-26003

9048036003

main90480-36003

9161160835

main91611-60835

9162140614

main91621-40614

9165140616

main91651-40616

9165140816

main91651-40816

9165160835

main91651-60835

9338516014

main93385-16014

9338516020

main93385-16020

9338518016

main93385-18016

34 parts on this diagram · 13 diagrams in section
