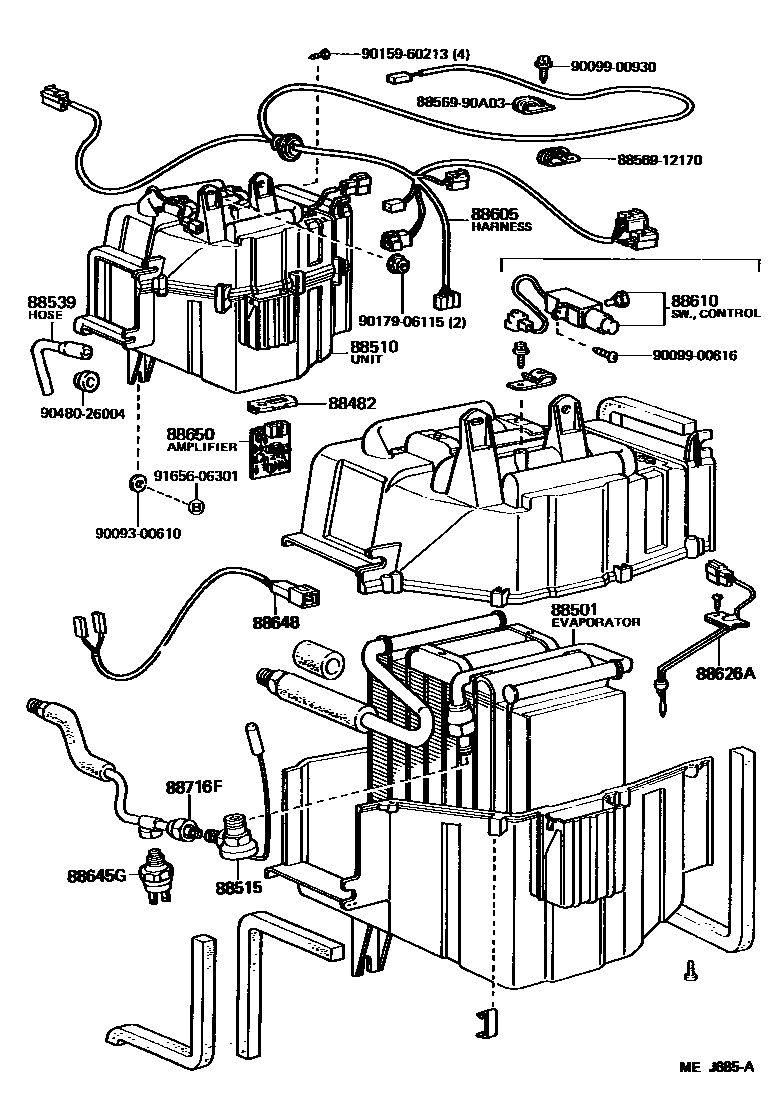

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT COOLER 0002 1FRONT COOLER 0003 1DUAL FRONT COOLER 0004 1DUAL REAR CO0LER 0005 1COOL BOX

88482CAP, COOLER

main88482-60010iFJ62198708-199203

main88482-90A00iBJ60,HJ6#198708-199001

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-90A05iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88501-90A06iBJ60,HJ61..RHD..SRF;FJ62,HJ60..SRF..GX..ARL;FJ62,HJ60..RHD..STD..GEN; FJ62,HJ6#..SRF..ARL; FJ62,HJ60..RHD..GX..GEN; FJ62,HJ61..HRF..ARL198708-199001

FRONT

main88501-90A07iFJ62,HJ60..HRF..GX..GEN; FJ62..ME;BJ60,HJ60..LHD..SOB;FJ62..LHD..STD..GEN198708-199001

FRONT

main88501-90A08iFJ62..STD..GEN;HJ60..RHD..STD..GEN;FJ62,HJ6#..SRF..GX..ARL; HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX)198708-199001

REAR

88510UNIT ASSY, COOLER

main88510-90A02iBJ60,FJ62..RHD..GEN; HJ60..RHD..GEN198708-199001

W(HEATER & SINGLE AIR CONDITIONER,FRONT; W(SINGLE AIR CONDITIONER),FRONT

main88510-90A03iBJ60,FJ62..RHD..GEN198708-199001

W(SINGLE AIR CONDITIONER),FRONT

main88510-90A04iBJ60,HJ60..ME;FJ62..STD..ME; FJ62..(GX,VX)..ME; HJ60..LHD..LUB198708-199001

FRONT; W(HEATER & SINGLE AIR CONDITIONER,FRONT; W(SINGLE AIR CONDITIONER),FRONT

main88510-90A05iFJ62..STD..ME;FJ62..LHD..GEN;BJ60,HJ60..LHD..SOB198708-199203

W(SINGLE AIR CONDITIONER),FRONT

main88510-90A10iFJ62,HJ6#..LUB..ARL; FJ62,HJ60..STD..ARL198708-199001

FRONT; W(SINGLE AIR CONDITIONER),FRONT

main88510-90A15iFJ62..HRF..ARL; FJ62..RHD..GEN; FJ62..SRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER),FRONT; W(HEATER & DUAL AIR CONDITIONER,FRONT

main88510-90A16iFJ62..RHD..GEN198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88510-90A17iHJ60..RHD..GEN;HJ6#..SRF..GX..ARL; HJ61..HRF198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88510-90A19iFJ62..HRF..GEN; FJ62..HRF..VX..ME; FJ62..SRF..VX..ME198708-199001

W(DUAL AIR CONDITIONER),FRONT; W(HEATER & DUAL AIR CONDITIONER,FRONT

main88510-90A20iFJ62..HRF..GEN198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88510-90A21iHJ60..HRF; HJ60..LHD..SRF..LUB198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88510-90A22iHJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203

W(DUAL AIR CONDITIONER),REAR

main88510-90A29iHJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX198708-199001

W(DUAL AIR CONDITIONER),REAR

88515VALVE, COOLER EXPANSION

main88515-87003iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88515-87004iFJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN); FJ62..ME;HJ60..SOB;BJ60,HJ61..SRF;FJ62..STD..(ARL,GEN);FJ62,HJ60..SRF..GX..ARL198708-199001

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-90A00iFJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN); FJ62..ME;HJ60..SOB;BJ60,HJ61..SRF;FJ62..STD..(ARL,GEN);FJ62,HJ60..SRF..GX..ARL198708-199001

FRONT

main88539-90A01iFJ62..STD..GEN;HJ60..RHD..STD..GEN;FJ62,HJ6#..SRF..GX..ARL; HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX)198708-199001

REAR

main88539-90A02iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-90A09iBJ60,HJ60..ME;FJ62..STD..ME; FJ62..(GX,VX)..ME;FJ62,HJ60..STD..ARL; HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN198708-199001

FRONT; W(HEATER & SINGLE AIR CONDITI0NER),FRONT; W(SINGLE AIR CONDITIONER),FRONT

main88605-90A10iBJ60;FJ62..GEN;FJ62..STD..ME;HJ60..LHD..SOB198708-199203

W(SINGLE AIR CONDITIONER),FRONT

main88605-90A17iFJ62..5F..SRF..VX;FJ62..5F..SRF..GX..ARL;FJ62..4FC..SRF..LUB..(ARL,ME); FJ62..HRF..GEN; FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER),FRONT; W(HEATER & DUAL AIR CONDITIONER),FRONT

main88605-90A18iFJ62..HRF..GEN198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88605-90A19iHJ6#..HRF; HJ60..RHD..GEN;HJ60..LHD..4F..GX;HJ6#..(4FC,5F)..SRF..LUB198708-199001

W(DUAL AIR CONDITIONER),FRONT

main88605-90A25iHJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX198708-199001

W(DUAL AIR CONDITIONER),REAR,NO.1

main88605-90A26iHJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX198708-199001

W(DUAL AIR CONDITIONER),REAR,NO.2

main88605-90A27iHJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203

W(DUAL AIR CONDITIONER),REAR,NO.2

88610SWITCH ASSY, COOLER CONTROL

main88610-90A03iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88610-90A04iFJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

REAR

main88610-90A05iFJ62..5F..HRF..VX..ME;FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..(4F,4FC)..HRF198708-199001

REAR

main88610-90A06iBJ60..RHD;FJ62,HJ60..STD..ARL; FJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

FRONT

main88610-90A07iFJ62,HJ60..HRF..GEN; FJ62..ME;BJ60,HJ60..LHD..SOB198708-199001

FRONT

88626AHOLDER, THERMISTOR

main88626-90A00iBJ60,FJ62,HJ6#..RHD198708-199001

main88626-90A01iBJ60,FJ62,HJ60..LHD198708-199203

88645GSWITCH, PRESSURE

main88645-30250×2iFJ62,HJ6#..ARL198708-199001

88648WIRING, COOLER, NO.1

main88648-90A00iBJ60,FJ62,HJ6#198708-199203

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-90A02iFJ62..5F..STD..GEN;FJ62..(4F,4FC)..(ARL,GEN);FJ62..5F..(GX,VX)..(ARL,GEN)198708-199203

W(SINGLE AIR CONDITIONER),FRONT

main88650-90A03iBJ60;HJ60..5F..SOB;HJ60..LHD..STD; HJ6#..LUB;HJ60..RHD..STD..GEN198708-199001

FRONT; W(SINGLE AIR CONDITIONER),FRONT

main88650-90A05iFJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN)198708-199203

W(DUAL AIR CONDITIONER),FRONT

main88650-90A06iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

main88650-95J02iHJ6#..HRF; HJ60..RHD..GEN;HJ60..LHD..4F..GX;HJ6#..(4FC,5F)..SRF..LUB198708-199001

W(DUAL AIR CONDITIONER),FRONT

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-90A26iBJ60..RHD;FJ62,HJ60..STD..ARL; HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC)198708-199001

W(SINGLE AIR CONDITIONER)

main88716-90A27iFJ62..ME;BJ60,HJ60..LHD..SOB198708-199001

main88716-90A28iFJ62,HJ61..HRF..ARL; HJ6#..SRF..GX..ARL;FJ62..RHD..5F..SRF..GX;FJ62,HJ60..RHD..(4F,4FC)..SRF198708-199001

W(DUAL AIR CONDITIONER)

main88716-90A29iFJ62..5F..HRF..VX..ME;FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..(4F,4FC)..HRF198708-199001

W(DUAL AIR CONDITIONER)

main88716-90A33iHJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME)198708-199203

COOL BOX

8856912170CLAMP (FOR COOLER RELAY)

main88569-12170

8856990A03CLAMP (FOR COOLER RELAY)

main88569-90A03

9009300610

main90093-00610

9009900816

main90099-00816

9009900930

main90099-00930

9015960213

main90159-60213

9017906115

main90179-06115

9048026004

main90480-26004

9165606301

main91656-06301

21 parts on this diagram · 5 diagrams in section
