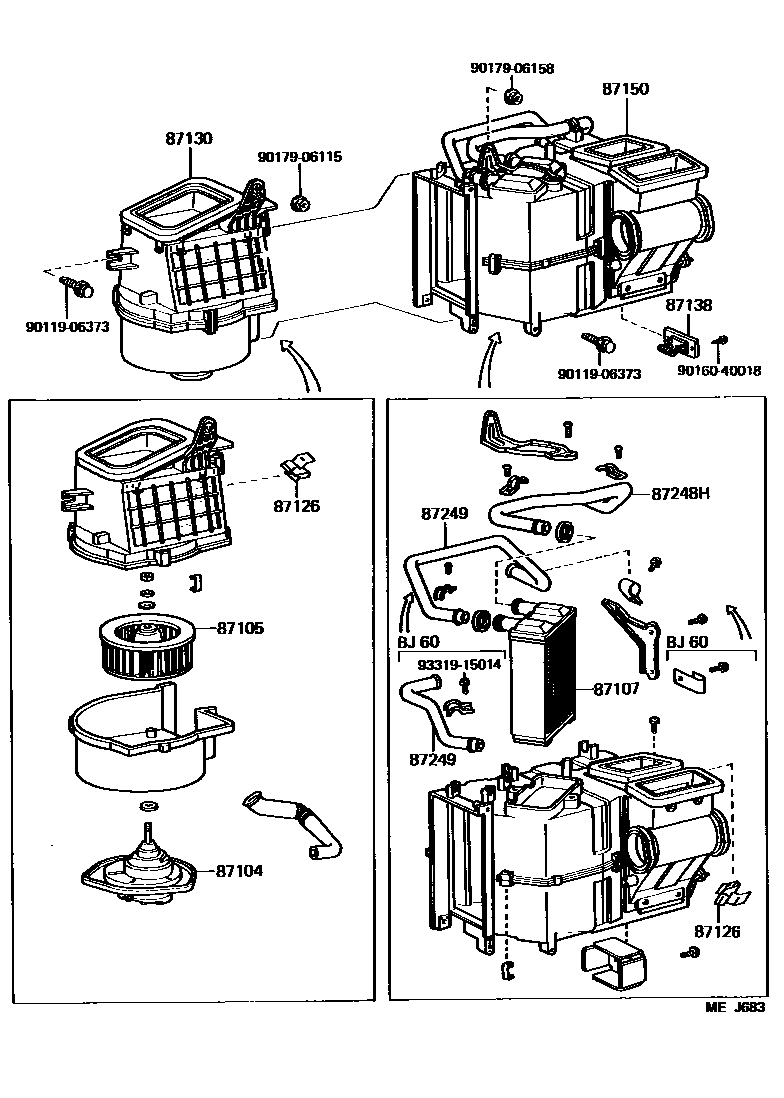

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT HEATER 0002 1BOOST VENTILATOR 0003 1REAR HEATER(BENCH SEAT) 0004 1REAR HEATER(SEPARATE SEAT)

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-87003iFJ62..HRF..GEN;HJ60..(GX,STD)..(ARL,GEN);BJ60,FJ62,HJ61..SRF..(GX,STD)..(ARL,GEN)198708-199203

REAR

main87104-90A00iBJ60,FJ62,HJ6#198708-199203

FRONT

main87104-90K03iBJ60,FJ62,HJ60..STD..GEN; HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)198708-199001

REAR; W(FR SEPARATE SEAT),REAR

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iBJ60,FJ62,HJ60..LHD198708-199203

FRONT

main87105-14030iBJ60,FJ62,HJ6#..RHD198708-199001

FRONT

main87105-87002iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

REAR

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-90A00iHJ60..GX,VX;HJ60..RHD..STD;BJ60,FJ62,HJ61..ARL,ME198708-199001

FRONT

main87107-90A01iFJ62..HRF..GEN;HJ60..(GX,STD)..(ARL,GEN);BJ60,FJ62,HJ61..SRF..(GX,STD)..(ARL,GEN)198708-199203

REAR

main87107-90A06iBJ60,FJ62,HJ60..STD..GEN; HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)198708-199001

W(FR SEPARATE SEAT)

87126CLAMP, HEATER CONTROL

main87126-16010iBJ60,FJ62,HJ6#198708-199203

BLOWER

main87126-90A01×2iBJ60,FJ62..GEN;HJ60..LHD..STD; BJ60;FJ62..GEN;FJ62..STD..ME;HJ60..LHD..SOB198708-199203

RADIATOR; W(HEATER),RADIATOR

87130BLOWER ASSY, HEATER, FRONT

main87130-90A00iBJ60,FJ62,HJ6#..RHD198708-199001

main87130-90A01iBJ60,FJ62,HJ60..LHD198708-199203

87138RESISTOR, HEATER BLOWER

main87138-22030iBJ60,FJ62,HJ6#198708-199203

FRONT

main87138-90K02iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

REAR

87150RADIATOR ASSY, HEATER

main87150-90A08iFJ62,HJ6#..RHD198708-199001

main87150-90A09iFJ62,HJ60..LHD198708-199203

main87150-90A10iBJ60..RHD198708-199001

main87150-90A11iBJ60..LHD198708-198808

87248HPIPE, HEATER WATER INLET

main87248-90A00iBJ60,FJ62,HJ6#..RHD198708-199001

main87248-90A01iBJ60,FJ62,HJ60..LHD198708-199203

87249PIPE, WATER

main87248-90A02iFJ62,HJ6#..RHD198708-199001

main87248-90A03iFJ62,HJ60..LHD198708-199203

main87248-90A04iBJ60..RHD198708-199001

main87248-90A05iBJ60..LHD198708-198808

9011906373

main90119-06373

9016040018

main90160-40018

9017906115

main90179-06115

9017906158

main90179-06158

9331915014

main93319-15014

14 parts on this diagram · 4 diagrams in section
