MIRROR

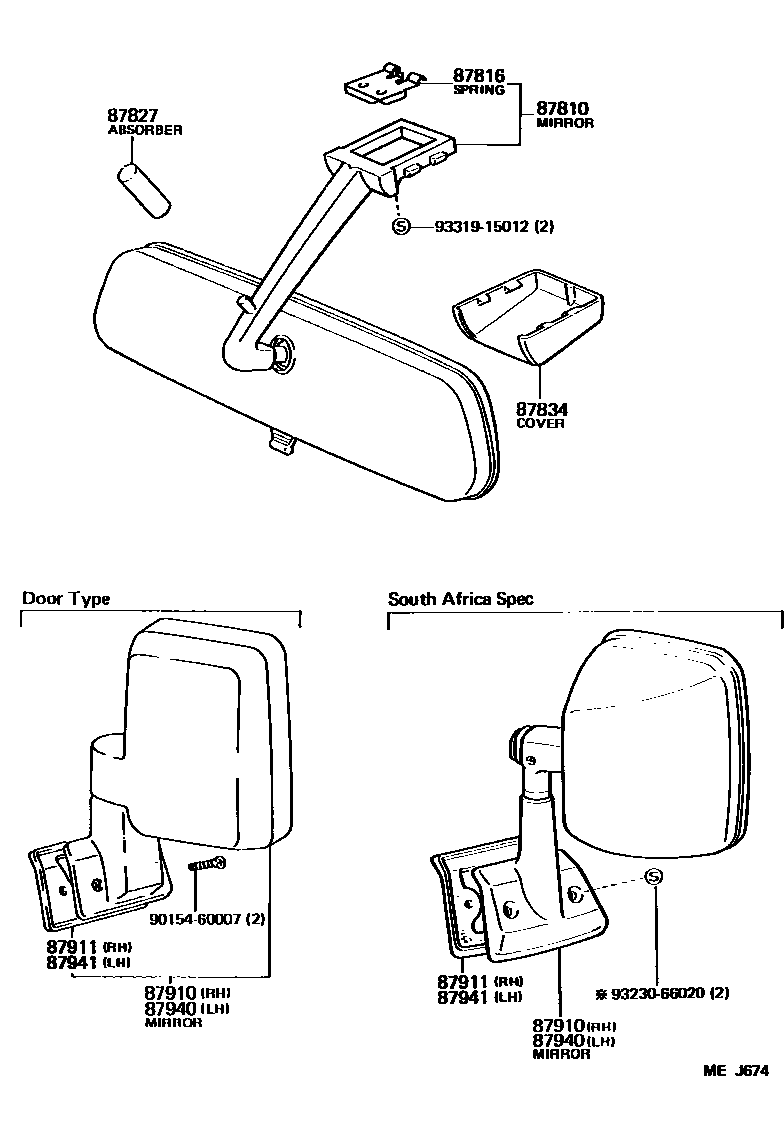

87810MIRROR ASSY, INNER REAR VIEW

main87810-90A03iHJ60..LUB;FJ62,HJ61..GX,VX;FJ62,HJ60..STD..ARL198708-199203

main87810-90A05iFJ62..STD..(GEN,ME);BJ60,HJ60..SOB..(GEN,ME)198708-199001

main87810-90A06iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC

87816SPRING, INNER REAR VIEW MIRROR

main74372-90A00iBJ60,FJ62,HJ6#198708-199203

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90A00iFJ62,HJ60..RHD..STD..GEN198708-199001

SOUTH AFRICA SPEC,L=40

main87828-90A01iBJ60,HJ61;HJ60..LUB;FJ62..GX,VX;FJ62,HJ60..STD..ARL198708-199203

L=45

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-14011iFJ62199001-199203

main87834-14011-28iBJ60,FJ62,HJ6#..GX,VX; BJ60,FJ62,HJ60..STD198708-199001

IVORY,TRIM1#,4#; IVORY,TRIM4#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87903-90A04iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC

main87910-90A07iBJ60,FJ62,HJ6#..RHD198708-199001

main87910-90A09iFJ62,HJ60..RHD..GX..GEN198708-199001

PLANE/PLATED TYPE

main87910-90A11iFJ62,HJ61..VX..ARL;FJ62,HJ60..RHD..GX..GEN198708-199001

PLANE/PLATED REMOTE CONTROL TYPE

main87910-90A17iFJ62,HJ60..LHD..GX..GEN198708-199203

main87910-90A18iFJ62,HJ60..LHD..GX..GEN198708-199203

CONVEX/PLATED TYPE

main87910-90A19iFJ62,HJ60..LHD..(GX,VX)..GEN; FJ62..VX..ME198708-198911

CONVEX/PLATED REMOTE CONTROL TYPE

main87910-90A20iFJ62..VX..ME198911-199001

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-90A03iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC

main87911-90A05iFJ62,HJ60..RHD..GX..GEN198708-199001

EXTERIOR PACKAGE OR OUTER RR VIEW MIRROR

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87903-90A04iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC

main87940-90A06iBJ60,HJ61..RHD;FJ62,HJ60..ARL; FJ62,HJ60..RHD..GEN198708-199001

main87940-90A07iFJ62..STD..ME;BJ60,FJ62,HJ60..LHD..(GX,STD)..GEN198708-199203

main87940-90A08iFJ62,HJ60..RHD..GX..GEN198708-199001

PLANE/PLATED TYPE

main87940-90A09iFJ62,HJ60..LHD..GX..GEN198708-199203

PLANE/PLATED TYPE

main87940-90A10iFJ62,HJ61..VX..ARL;FJ62,HJ60..RHD..GX..GEN198708-199001

PLANE/PLATED REMOTE CONTROL TYPE

main87940-90A11iFJ62,HJ60..LHD..(GX,VX)..GEN; FJ62..VX..ME198708-198911

PLANE/PLATED REMOTE CONTROL TYPE

main87940-90A15iFJ62,HJ60..LHD..(GX,VX)..GEN198911-199203

PLANE/PLATED REMOTE CONTROL TYPE

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87911-90A03iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC

main87911-90A05iFJ62,HJ60..RHD..GX..GEN; FJ62,HJ60..RHD..STD..GEN198708-199001

9015460007

main90154-60007

9323066020

main93230-66020

9331915012

main93319-15012

11 parts on this diagram · 1 diagram in section
