SPEAKER

0001 1FRONT SPEAKER 0002 1REAR SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

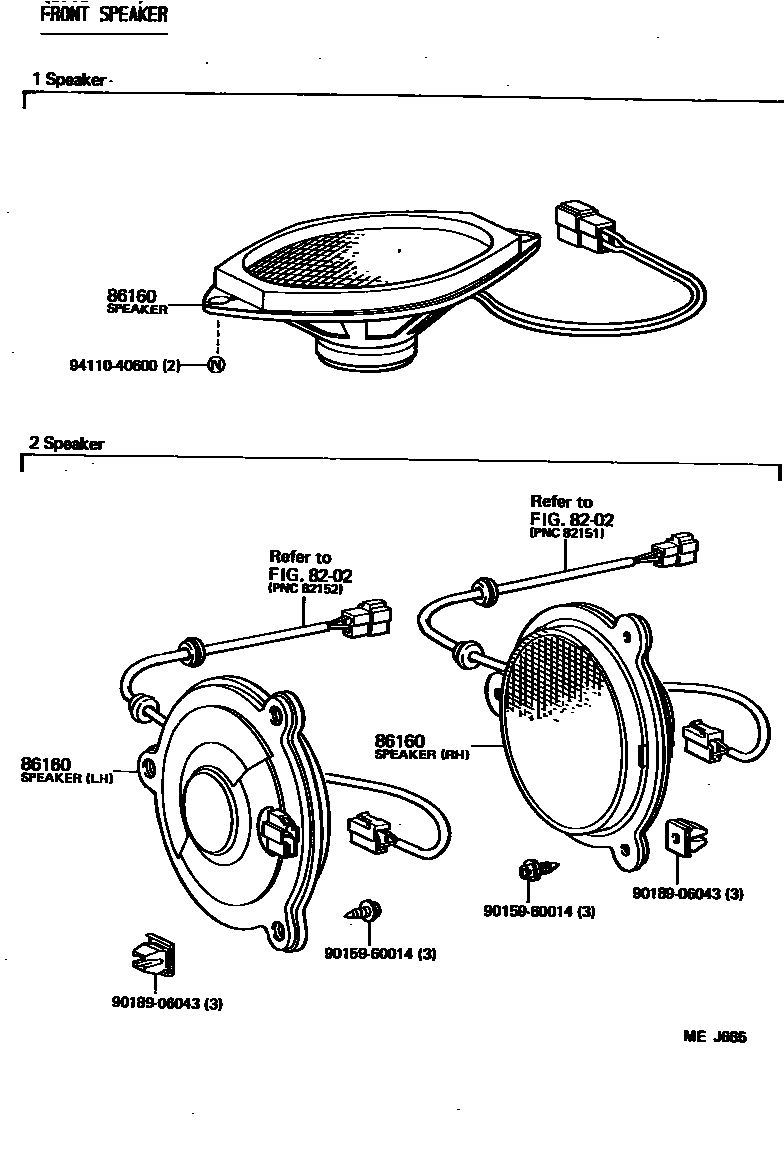

86160SPEAKER ASSY, FRONT NO.1

main86160-90A00iHJ60..LHD..STD; HJ60..ME198808-199001

main86160-90A01iBJ60..ME;FJ62..STD..ME;HJ60..LHD..SOB; FJ62,HJ60..HRF..LUB..GEN; HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME); HJ60..VX;HJ60..RHD..STD..GEN;BJ60,FJ62..STD..GEN;FJ62..HRF..SOB..GX..GEN198708-199001

RH

main86160-90A02iBJ60..ME;FJ62..STD..ME;HJ60..LHD..SOB; FJ62,HJ60..HRF..LUB..GEN; HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME); HJ60..VX;HJ60..RHD..STD..GEN;BJ60,FJ62..STD..GEN;FJ62..HRF..SOB..GX..GEN198708-199001

LH

9015960014

main90159-60014

9018906043

main90189-06043

9411040600

main94110-40600

5 parts on this diagram · 2 diagrams in section
