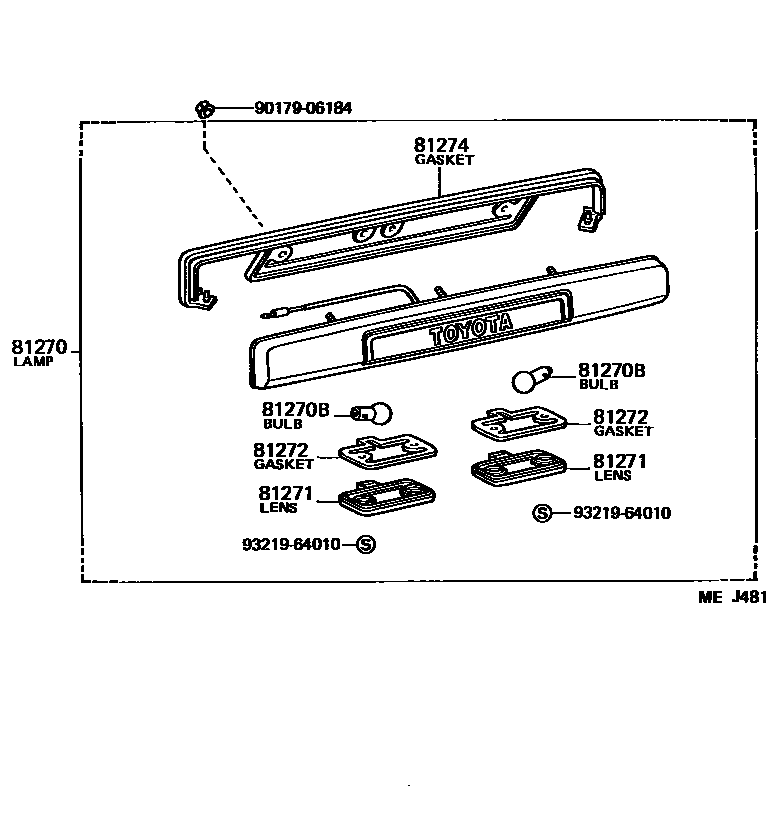

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-90A08iBJ60,FJ62,HJ60..SOB198708-199001

main81270-90A13iFJ62..LUB..VX..ME198708-199001

main81270-90A16iFJ62..LUB..GX..ME;FJ62,HJ6#..LUB..(ARL,GEN)198708-199203

main81270-90K03iBJ60,HJ60..RHD..STD..GEN; HJ60..LHD..SOB;FJ62..SOB..(GEN,ME)198902-199001

W(AUXILIARY FUEL TANK FOR BACK DOOR),RH

main81690-90K00iBJ60,FJ62,HJ60..SOB..(GEN,ME)198708-198902

W(AUXILIARY FUEL TANK FOR BACK DOOR),LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iFJ62,HJ6#..LUB198708-199203

12V 5W

main99132-11100×2iBJ60,FJ62,HJ60..SOB198708-199001

12V 10W

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iBJ60,HJ60..RHD..STD..GEN; HJ60..LHD..SOB;FJ62..SOB..(GEN,ME)198902-199001

W(AUXILIARY FUEL TANK FOR BACK DOOR)

main81271-13070×2iFJ62,HJ6#..LUB198708-199203

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iBJ60,HJ60..RHD..STD..GEN; HJ60..LHD..SOB;FJ62..SOB..(GEN,ME)198902-199001

W(AUXILIARY FUEL TANK FOR BACK DOOR)

main81272-13070×2iFJ62,HJ6#..LUB198708-199203

81274GASKET, LICENSE PLATE LAMP BODY

main81274-90A00iBJ60,FJ62,HJ60..SOB198708-199001

main81274-95A00iFJ62,HJ6#..LUB198708-199203

9017906184

main90179-06184

9321964010

main93219-64010

7 parts on this diagram · 2 diagrams in section
