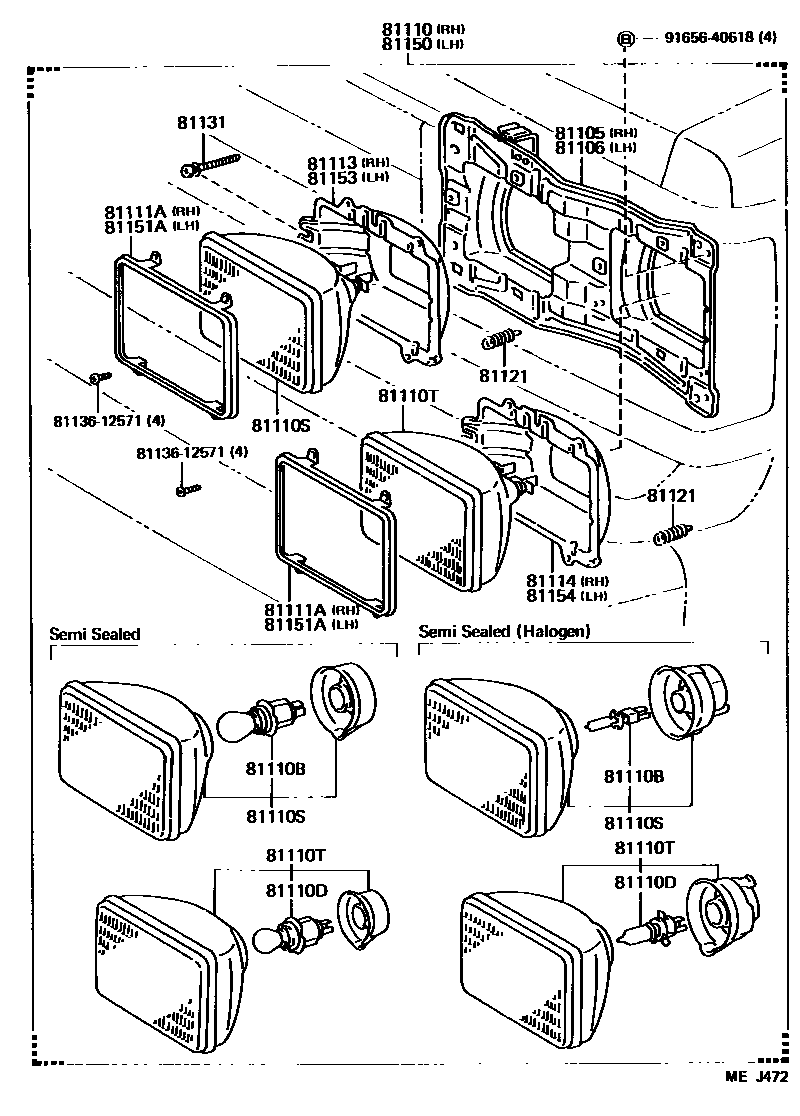

HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
SEALED HALOGEN WHITE
SEMI-SEALED YELLOW
SEMI-SEALED HALOGEN WHITE; SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
SEALED HALOGEN WHITE
main81110-90A41iFJ62..VX..ME; HJ60..HRF;HJ60..LHD..4F;FJ62..LHD..4F..LUB;FJ62..LHD..STD..GEN198903-199001
CHINA SPEC OR SEMI-SEALED HALOGEN WHITE
SEMI-SEALED YELLOW
SEMI-SEALED HALOGEN WHITE; SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,YELLOW,SEMI-SEALED YELLOW
12V 55W,*HAL *WH; 12V 55W,*HAL *WH,SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
81110DBULB(FOR HEADLAMP, NO.2)
12V 45/40W,YELLOW,SEMI-SEALED YELLOW
12V 60/55W,*HAL *WH; 12V 60/55W,*HAL *WH,SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
81110SSEALED BEAM UNIT, NO.1
12V 45/40W,*YSB,SEMI-SEALED YELLOW
12V 50W,*WB
12V 55W,*HWS,CHINA SPEC OR SEMI-SEALED HALOGEN WHITE
12V 70W,*WB
81110TSEALED BEAM UNIT, NO.2
12V 40/60W,*WB
12V 40/60W,*WB
12V 60/55W,*HWS
12V 45/40W,*YSB,SEMI-SEALED YELLOW
12V 60/55W,*HWS,SEMI-SEALED HALOGEN WHITE; 12V 60/55W,*HWS,SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
12V 55/65W,*WB; 12V 55/65W,*WB,SEALED HALOGEN WHITE
12V 50/65W,*WB,SEALED HALOGEN WHITE
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
SEALED HALOGEN WHITE
main81150-90A26iFJ62..VX..GEN;FJ62..4F..SOB..GX;HJ60..5F..SRF..GEN;FJ62..LHD..(4FC,5F)..GX; HJ60..HRF;HJ60..LHD..4F;FJ62..LHD..4F..LUB;BJ60,FJ62..LHD..STD..GEN198712-198903
CHINA SPEC OR SEMI-SEALED HALOGEN WHITE; SEMI-SEALED HALOGEN WHITE
SEMI-SEALED YELLOW
SEMI-SEALED HALOGEN WHITE; SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
SEALED HALOGEN WHITE
main81150-90A41iFJ62..VX..ME; HJ60..HRF;HJ60..LHD..4F;FJ62..LHD..4F..LUB;FJ62..LHD..STD..GEN198903-199001
CHINA SPEC OR SEMI-SEALED HALOGEN WHITE
SEMI-SEALED YELLOW
SEMI-SEALED HALOGEN WHITE; SOUTH AFRICA SPEC OR SEMI-SEALED HALOGEN WHITE
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9165640618
main91656-40618
18 parts on this diagram · 1 diagram in section
