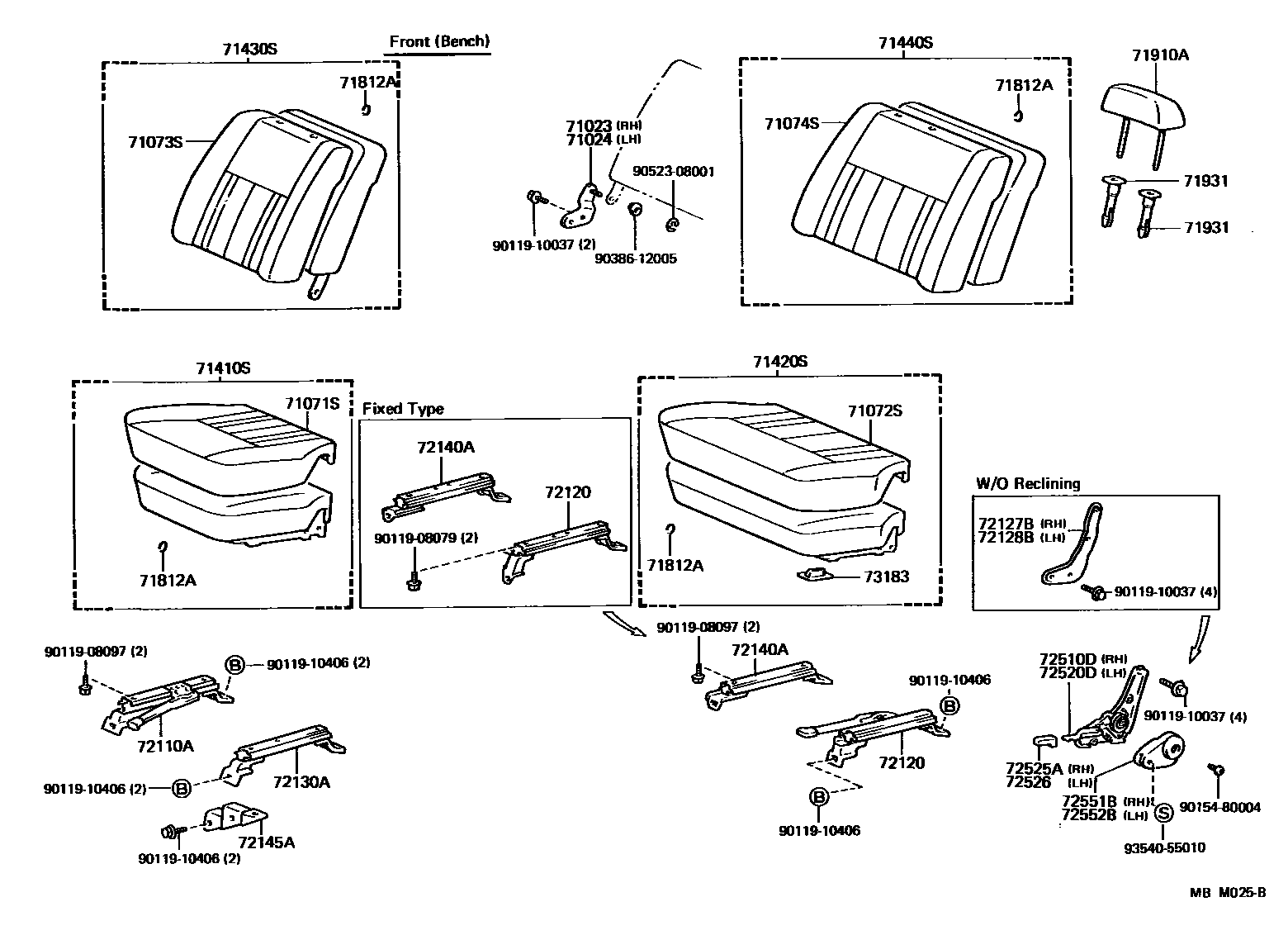

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

71023PLATE SUB-ASSY, FRONT SEAT HINGE, RH

main71024-90A02iFJ62..LHD..5F..LUB..GEN;BJ60,HJ60..LHD..(GX,STD);FJ62..LHD..5F..SOB..(GX,STD);FJ62..LHD..(4F,4FC)..(GX,STD)198708-199203

main71024-90A04iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

71024PLATE SUB-ASSY, FRONT SEAT HINGE, LH

main71023-90A02iBJ60,FJ62,HJ6#..RHD..SRF198708-199001

main71023-90A04iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-90A35-03iFJ62..RHD..5F..GEN198708-199001

SHADOW GRAY,TRIM1#

main71071-90A35-06iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND SPEC,SEPIA BROWN,TRIM4#

main71071-90A39-03iFJ62..LHD..MTM..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71071-90A39-06iFJ62..LHD..MTM..GX..GEN198708-199203

SEPIA BROWN,TRIM4#

main71071-90A43-03iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71071-90A43-06iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SEPIA BROWN,TRIM4#

main71071-90A51-03iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71071-90A51-06iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SEPIA BROWN,TRIM4#

main71071-90A53-06iBJ60,FJ62,HJ60..RHD..STD198708-199001

SEPIA BROWN,TRIM4#

main71071-90A55-03iFJ62,HJ6#..VX198708-199001

SHADOW GRAY,TRIM1#

main71071-90A55-06iFJ62,HJ6#..VX198708-199001

SEPIA BROWN,TRIM4#

main71071-90A56-03iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71071-90A56-06iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71071-90A59-06iBJ60,FJ62,HJ60..LHD..STD198708-199001

SEPIA BROWN,TRIM4#

main71071-90A63-03iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71071-90A63-06iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

main71071-90A64-03iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71071-90A64-06iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-90A58-06iFJ62,HJ60..STD..ARL198708-199001

SEPIA BROWN,TRIM4#

main71072-90A18-03iFJ62..4FC..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71072-90A18-06iBJ60,FJ62,HJ60..LHD..GX;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71072-90A24-03iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71072-90A24-06iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SEPIA BROWN,TRIM4#

main71072-90A26-03iFJ62,HJ60..RHD..GX..GEN198708-199001

SHADOW GRAY,TRIM1#

main71072-90A26-06iFJ62,HJ60..RHD..GX..GEN198708-199001

NEW ZEALAND SPEC,SEPIA BROWN,TRIM4#

main71072-90A30-03iFJ62,HJ6#..SRF..GX..ARL198708-199001

SHADOW GRAY,TRIM1#

main71072-90A30-06iFJ62,HJ6#..SRF..GX..ARL198708-199001

SEPIA BROWN,TRIM4#

main71072-90A33-03iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71072-90A33-06iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71072-90A34-06iBJ60,FJ62,HJ60..LHD..STD198708-199001

SEPIA BROWN,TRIM4#

main71072-90A38-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71072-90A40-03iFJ62,HJ6#..VX198708-199001

SHADOW GRAY,TRIM1#

main71072-90A40-06iFJ62,HJ6#..VX198708-199001

SEPIA BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-90A44-03iFJ62,HJ60..LHD..GX..GEN198708-199203

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71073-90A44-06iFJ62,HJ60..LHD..GX..GEN198708-199203

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71073-90A54-03iFJ62..LHD..MTM..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71073-90A54-06iFJ62..LHD..MTM..GX..GEN198708-199203

W(HEAD REST),SEPIA BROWN,TRIM4#

main71073-90A55-03iHJ61..GX198708-199001

SHADOW GRAY,TRIM1#

sub71073-90A63

main71073-90A55-06iHJ61..GX198708-199001

SEPIA BROWN,TRIM4#

sub71073-90A63

main71073-90A64-03iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71073-90A64-06iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71073-90A75-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71073-90A77-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71073-90A80-03iFJ62,HJ60..VX198708-199001

SHADOW GRAY,TRIM1#

main71073-90A80-06iFJ62,HJ60..VX198708-199001

SEPIA BROWN,TRIM4#

main71073-90A81-03iHJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71073-90A81-06iHJ61..VX198708-199001

SEPIA BROWN,TRIM4#

main71073-90A82-03iHJ61..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71073-90A82-06iHJ61..VX198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

main71073-90A84-03iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71073-90A84-06iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

main71073-90A88-06iFJ62..STD..ME198708-199001

SEPIA BROWN,TRIM4#

main71074-90A09-06iFJ62,HJ60..STD..ARL198708-199001

W(RECLINING),SEPIA BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-90A44-03iFJ62..4FC..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71073-90A44-06iHJ60..RHD..GX..GEN198708-199001

NEW ZEALAND SPEC OR W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71073-90A54-03iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main71073-90A54-06iHJ60..LUB..GX;FJ62..HRF..GX..GEN;FJ62..SRF..GX..(ARL,GEN)198708-199203

W(HEAD REST),SEPIA BROWN,TRIM4#

main71073-90A55-03iHJ61..GX198708-199001

SHADOW GRAY,TRIM1#

sub71073-90A63

main71073-90A55-06iHJ61..GX198708-199001

SEPIA BROWN,TRIM4#

sub71073-90A63

main71073-90A57-03iHJ61..SRF198708-199001

SHADOW GRAY,TRIM1#

main71073-90A57-06iHJ61..SRF198708-199001

SEPIA BROWN,TRIM4#

main71073-90A80-03iFJ62,HJ60..VX198708-199001

SHADOW GRAY,TRIM1#

main71073-90A80-06iFJ62,HJ60..VX198708-199001

SEPIA BROWN,TRIM4#

main71073-90A81-03iHJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71073-90A81-06iHJ61..VX198708-199001

SEPIA BROWN,TRIM4#

main71073-90A88-06iFJ62,HJ60..STD..ARL198708-199001

SEPIA BROWN,TRIM4#

main71074-90A09-06iBJ60,FJ62,HJ60..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71074-90A13-03iFJ62..VX..ARL198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71074-90A13-06iFJ62..VX..ARL198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

main71074-90A15-03iHJ61..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71074-90A15-06iHJ61..VX198708-199001

W(SPORTS SEAT),SEPIA BAROWN,TRIM4#

main71074-90A16-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71074-90A17-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-90A33-03iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND OR W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71410-90A33-06iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND OR W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71410-90A37-03iFJ62..LHD..MTM..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71410-90A37-06iFJ62..LHD..MTM..GX..GEN198708-199203

SEPIA BROWN,TRIM4#

main71410-90A40-03iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71410-90A40-06iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SEPIA BROWN,TRIM4#

main71410-90A47-03iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71410-90A47-06iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SEPIA BROWN,TRIM4#

main71410-90A49-03iBJ60,FJ62,HJ60..RHD..STD198708-198809

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71410-90A49-06iBJ60,FJ62,HJ60..RHD..STD198809-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71410-90A50-03iFJ62,HJ6#..VX198708-199001

SHADOW GRAY,TRIM1#

main71410-90A50-06iFJ62,HJ6#..VX198708-199001

SEPIA BROWN,TRIM4#

main71410-90A51-03iFJ62,HJ6#..VX198708-199001

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71410-90A51-06iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71410-90A52-03iFJ62,HJ60..LHD..VX198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71410-90A52-06iFJ62,HJ60..LHD..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71410-90A54-03iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71410-90A54-06iFJ62,HJ61..VX..ARL198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71410-90A56-06iBJ60,FJ62,HJ60..LHD..STD198708-199001

SEPIA BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-90A31-03iFJ62,HJ60..RHD..GX..GEN198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71420-90A31-06iFJ62..4FC..GX..GEN198708-199203

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71420-90A33-03iFJ62,HJ60..RHD..GX..GEN198708-199001

SHADOW GRAY,TRIM1#

main71420-90A33-06iFJ62,HJ60..RHD..GX..GEN198708-199001

NEW ZEALAND SPEC,SEPIA BROWN,TRIM4#

main71420-90A38-03iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71420-90A38-06iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SEPARATE SUSPENSION SEAT),SEPIA BROWN,TRIM4#

main71420-90A46-03iFJ62,HJ6#..SRF..GX..ARL198708-199001

SHADOW GRAY,TRIM1#

main71420-90A46-06iFJ62,HJ6#..SRF..GX..ARL198708-199001

SEPIA BROWN,TRIM4#

main71420-90A48-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(BENCH SEAT),SEPIA BROWN,TRIM4#

main71420-90A49-06iFJ62,HJ60..STD..ARL198708-199001

SEPIA BROWN,TRIM4#

main71420-90A50-03iFJ62,HJ6#..VX198708-199001

SHADOW GRAY,TRIM1#

main71420-90A50-06iFJ62,HJ6#..VX198708-199001

SEPIA BROWN,TRIM4#

main71420-90A51-03iFJ62,HJ6#..VX198708-199001

W(SEPARATE SUSPENSION SEAT),SHADOW GRAY,TRIM1#

main71420-90A51-06iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71420-90A53-03iFJ62,HJ6#..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71420-90A53-06iFJ62,HJ6#..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71420-90A55-06iBJ60,FJ62,HJ60..LHD..STD198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-90A39-03iFJ62,HJ60..RHD..GX198708-199001

SHADOW GRAY,TRIM1#

main71430-90A39-06iFJ62,HJ60..RHD..GX198708-199001

SEPIA BROWN,TRIM4#

main71430-90A48-03iFJ62..LHD..MTM..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71430-90A48-06iFJ62..LHD..MTM..GX..GEN198708-199203

W(HEAD REST),SEPIA BROWN,TRIM4#

main71430-90A49-03iHJ61..GX198708-199001

SHADOW GRAY,TRIM1#

main71430-90A49-06iHJ61..GX198708-199001

SEPIA BROWN,TRIM4#

main71430-90A55-03iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71430-90A55-06iBJ60,FJ62,HJ60..SOB..GX..ME198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71430-90A76-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71430-90A77-06iFJ62,HJ60..STD..ARL198708-199001

SEPIA BROWN,TRIM4#

main71430-90A78-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71430-90A79-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(RECLINING),SEPIA BROWN,TRIM4#

main71430-90A80-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71430-90A81-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71430-90A82-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(BENCH SEAT),SEPIA BROWN,TRIM4#

main71430-90A83-03iFJ62,HJ60..VX198708-199001

SHADOW GRAY,TRIM1#

main71430-90A83-06iFJ62,HJ60..VX198708-199001

SEPIA BROWN,TRIM4#

main71430-90A84-03iHJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71430-90A84-06iHJ61..VX198708-199001

SEPIA BROWN,TRIM4#

main71430-90A85-03iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71430-90A85-06iFJ62,HJ60..LHD..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71430-90A86-03iFJ62..VX..ARL198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71430-90A86-06iFJ62..VX..ARL198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71430-90A87-03iHJ61..VX198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71430-90A87-06iHJ61..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71430-90A91-06iFJ62..STD..ME198708-199001

W(BENCH SEAT & HEAD REST),SEPIA BROWN,TRIM4#

main71430-90A92-03iFJ62..LUB..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71430-90A92-06iFJ62..LUB..GX..ME198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-90A37-03iFJ62..HRF..GX..ARL;FJ62,HJ60..LHD..GX..GEN198708-199203

SHADOW GRAY,TRIM1#

main71440-90A37-06iFJ62..HRF..GX..ARL;FJ62,HJ60..LHD..GX..GEN198708-199203

SEPIA BROWN,TRIM4#

main71440-90A40-03iFJ62..RHD..5F..GEN198708-199001

SHADOW GRAY,TRIM1#

main71440-90A40-06iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND SPEC,SEPIA BROWN,TRIM4#

main71440-90A49-03iHJ61..HRF..GX198708-198808

SHADOW GRAY,TRIM1#

main71440-90A49-06iHJ61..HRF..GX198708-198808

SEPIA BROWN,TRIM4#

main71440-90A50-03iHJ61..SRF198708-199001

SHADOW GRAY,TRIM1#

main71440-90A50-06iHJ61..SRF198708-199001

SEPIA BROWN,TRIM4#

main71440-90A75-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71440-90A76-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71440-90A77-06iFJ62,HJ60..STD..ARL198708-199001

W(BENCH SEAT & HEAD REST),SEPIA BROWN,TRIM4#

main71440-90A78-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(RECLINING),SEPIA BROWN,TRIM4#

main71440-90A79-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

SEPIA BROWN,TRIM4#

main71440-90A80-06iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(HEAD REST),SEPIA BROWN,TRIM4#

main71440-90A81-06iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

W(BENCH SEAT),SEPIA BROWN,TRIM4#

main71440-90A82-03iFJ62,HJ60..VX198708-199001

SHADOW GRAY,TRIM1#

main71440-90A82-06iFJ62,HJ60..VX198708-199001

SEPIA BROWN,TRIM4#

main71440-90A83-03iHJ61..VX198708-199001

SHADOW GRAY,TRIM1#

main71440-90A83-06iHJ61..VX198708-199001

SEPIA BROWN,TRIM4#

main71440-90A84-03iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71440-90A84-06iFJ62,HJ60..LHD..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71440-90A85-03iFJ62..VX..ARL198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71440-90A85-06iFJ62..VX..ARL198708-199001

W(SEPARATE SEAT),SEPIA BROWN,TRIM4#

main71440-90A87-03iHJ61..VX198708-199001

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main71440-90A87-06iHJ61..VX198708-199001

W(SEPARATE SEAT),SEPIA BAROWN,TRIM4#

main71440-90A90-06iFJ62..STD..ME198708-199001

W(SEPARATE SEAT & HEAD REST),SEPIA BROWN,TRIM4#

main71440-90A92-03iBJ60,FJ62,HJ60..GX..ME198708-199001

SHADOW GRAY,TRIM1#

main71440-90A92-06iBJ60,FJ62,HJ60..GX..ME198708-199001

SEPIA BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071×20iFJ62..SRF..SOB..VX198708-199001

sub90468-18008

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071×32iFJ62,HJ6#..VX198708-199001

sub90468-18008

71910AHEADREST ASSY, FRONT SEAT

main71910-90A00-03×2iFJ62,HJ6#..GX..ARL198708-199001

GRAY,TRIM1#

main71910-90A00-16×2iFJ62,HJ6#..(GX,STD)..ARL198708-199001

SEPIA BROWN,TRIM4#

main71910-90A01-03×2iBJ60,FJ62,HJ60..GX..(GEN,ME)198708-199203

GRAY,TRIM1#

main71910-90A01-16×2iBJ60,FJ62,HJ60..(GX,STD)..(GEN,ME)198708-199203

SEPIA BROWN,TRIM4#

main71910-90A16-03×2iFJ62,HJ60..LHD..VX198708-199001

SHADOW GRAY,TRIM1#

main71910-90A16-06×2iFJ62,HJ60..LHD..VX198708-199001

SEPIA BROWN,TRIM4#

main71910-90A17-03×2iFJ62,HJ61..VX..ARL198708-199001

SHADOW GRAY,TRIM1#

main71910-90A17-06×2iFJ62,HJ61..VX..ARL198708-199001

SEPIA BROWN,TRIM4#

main71910-90A18-03×2iFJ62,HJ6#..VX198708-199001

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71910-90A18-06×2iFJ62,HJ6#..VX198708-199001

W(SPORTS SEAT),SEPIA BROWN,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71956-30020-13iHJ61..4FC;HJ61..5F..VX;FJ62,HJ60..VX;HJ61..5F..SRF;FJ62,HJ60..SRF..LUB..GX..(ARL,ME)198708-199001

W/O(LOCK),GRAY,TRIM1#

main71956-30020-56×2iHJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..GX..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME198708-199203

W/O(LOCK),SEPIA BROWN,TRIM4#

main71990-30020-13iHJ61..4FC;HJ61..5F..VX;FJ62,HJ60..VX;HJ61..5F..SRF;FJ62,HJ60..SRF..LUB..GX..(ARL,ME)198708-199001

W(LOCK),GRAY,TRIM1#

main71990-30020-56iHJ61..4FC;HJ61..5F..VX;HJ61..5F..SRF;BJ60,FJ62,HJ60..STD,VX;FJ62,HJ60..SRF..LUB..GX..(ARL,ME)198708-199001

W(LOCK),SEPIA BROWN,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-90A04iFJ62..4F..GX;FJ62..LHD..5F..HRF..GX;FJ62..5F..SRF..SOB..GX;FJ62..LHD..5F..SRF..LUB..GEN198708-199203

W(SEPARATE SEAT)

main72110-90A06iHJ60..LHD..GX;FJ62..LHD..MTM..GX..GEN;BJ60,FJ62..5F..SOB..(GX,STD)..ME198708-199203

W(ONE TOUCHN 2-4 CELECTOR)

main72110-90A08iHJ60..GX..GEN;FJ62..RHD..GX..GEN;FJ62..4FC..GX..GEN;FJ62,HJ61..HRF..ARL198708-199203

W(SUSPENSION SEAT)

main72110-90A09iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT)

main72110-90A10iBJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-90A04iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND SPEC OR W(SEPARATE SEAT)

main72120-90A06iFJ62,HJ6#..VX198708-199001

W(SUSPENSION SEAT OR SPORTS SEAT)

main72120-90A07iBJ60,FJ62,HJ60..RHD..STD..GEN198708-199001

72127BSUPPORT, FRONT SEAT, RH

main72127-90A00iBJ60,FJ62,HJ60..STD..GEN198708-199001

72128BSUPPORT, FRONT SEAT, LH

main72128-90A00iBJ60,FJ62,HJ60..STD..GEN198708-199001

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-90A03iHJ60..RHD..GX..GEN198708-199001

NEW ZEALAND SPEC OR W(SEPARATE SEAT)

main72130-90A04iFJ62..LHD..5F..LUB..GEN;BJ60,HJ60..LHD..(GX,STD);FJ62..LHD..5F..SOB..(GX,STD);FJ62..LHD..(4F,4FC)..(GX,STD)198708-199203

main72130-90A07iFJ62,HJ60..LHD..VX198708-199001

W(SPORTS SEAT OR SUSPENSION SEAT)

main72130-90A09iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT)

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72130-90A07iFJ62,HJ60..GX..GEN;FJ62,HJ61..HRF..GX..ARL198708-199203

W(SUSPENSION SEAT)

main72140-90A00iBJ60,FJ62,HJ60..LHD;FJ62,HJ61..HRF..ARL198708-199203

W(SEPARATE SEAT)

main72140-90A01iFJ62..RHD..5F..GEN198708-199001

NEW ZEALAND SPEC

72145ABRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH

main72145-90A00iFJ62..4F,4FC;BJ60,HJ6#..ARL,GEN;FJ62..5F..(ARL,GEN);FJ62..5F..(GX,VX)..ME198708-199203

72510DADJUSTER ASSY, RECLINING SEAT, OUTER RH

main72510-90A00iFJ62..SOB..GX..ME;BJ60,FJ62,HJ60..LHD..STD..GEN198708-199001

W(SEPARATE SEAT)

main72510-90A01iFJ62..5F..SOB..GX..ME;FJ62..LHD..MTM..GX..GEN198708-199203

72520DADJUSTER ASSY, RECLINING SEAT, OUTER LH

main72520-90A00iFJ62,HJ60..RHD..GX..GEN198708-199001

W(SEPARATE SEAT)

main72520-90A01iFJ62,HJ60..STD..ARL;FJ62,HJ6#..RHD..SRF..GX198708-199001

NEW ZEALAND SPEC

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-14010-13iBJ60,FJ62,HJ6#..GX,VX198708-199203

GRAY,TRIM1#

main72525-14010-56iBJ60,FJ62,HJ6#198708-199203

BROWN,TRIM4#

main72525-90A01-03iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),GRAY,TRIM1#

main72525-90A01-16iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),SEPIA BROWN,TRIM4#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-14010-13iFJ62199001-199203

GRAY,TRIM1#

main72526-14010-43iBJ60,FJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

main72526-14010-56iBJ60,FJ62,HJ6#198708-199203

BROWN,TRIM4#

main72526-90A01-03iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),GRAY,TRIM1#

main72526-90A01-16iFJ62,HJ61..VX..ARL198708-199001

W(SPORTS SEAT),SEPIA BROWN,TRIM4#

72551BCOVER, RECLINING HINGE, RH

main72551-90A00-03iBJ60,FJ62,HJ6#..GX,VX198708-199203

GRAY,TRIM1#

main72551-90A00-16iBJ60,FJ62,HJ6#198708-199203

SEPIA BROWN,TRIM4#

72552BCOVER, RECLINING HINGE, LH

main72552-90A00-03iBJ60,FJ62,HJ6#..GX,VX198708-199203

GRAY,TRIM1#

main72552-90A00-16iBJ60,FJ62,HJ6#198708-199203

SEPIA BROWN,TRIM4#

73183GUIDE, FRONT SEAT LAP BELT, INNER

main73183-20020iFJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN198708-199203

9011908079

main90119-08079

9011908097

main90119-08097

9011910037

main90119-10037

9011910406

main90119-10406

9015480004

main90154-80004

9038612005

main90386-12005

9052308001

main90523-08001

9354055010

main93540-55010

36 parts on this diagram · 11 diagrams in section
