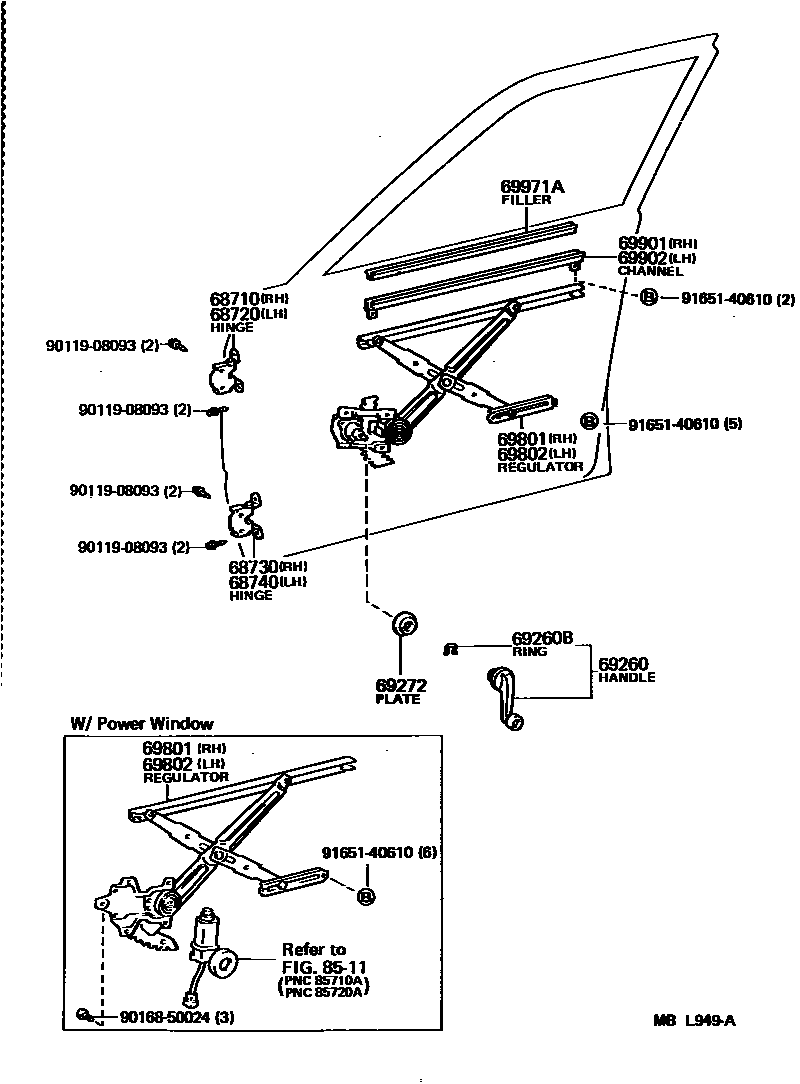

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iBJ60,FJ62,HJ6#198708-199203

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iBJ60,FJ62,HJ6#198708-199203

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iBJ60,FJ62,HJ6#198708-199203

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iBJ60,FJ62,HJ6#198708-199203

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010×2iFJ62199001-199203

main69260-12010-03×2iFJ62,HJ61..GX;FJ62..VX..GEN;BJ60,HJ60..GX,VX198708-199001

GRAY,TRIM1#

main69260-12010-46×2iBJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD198708-199001

BROWN,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iBJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD198708-199203

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iBJ60,FJ62,HJ60..STD; FJ62,HJ61..GX;FJ62..VX..GEN;BJ60,HJ60..GX,VX198708-199203

NATURAL WHITE,TRIM1#,4#; NATURAL WHITE,TRIM4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90A00iFJ62..VX..GEN;HJ60..LUB..GEN;FJ62..GX..(GEN,ME)198708-199203

W(*PW)

main69801-90A02iFJ62,HJ6#..GX..ARL198904

GXL

main69810-90A02iFJ62..VX..GEN;BJ60,HJ60..GEN,ME;FJ62..(GX,STD)..(GEN,ME)198708-199203

main69810-90A09iBJ60,FJ62,HJ60..GEN198708-199203

W(*VW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90A00iFJ62,HJ61..HRF..GX..ARL198801-198808

W(*PW)

main69802-90A02iFJ62,HJ6#..GX..ARL; FJ62,HJ61..VX..ARL198708-199001

W(*PW & *VW)

main69820-90A02iFJ62..VX..GEN;BJ60,HJ60..GEN,ME;FJ62..(GX,STD)..(GEN,ME)198708-199203

main69820-90A09iFJ62,HJ6#..(GX,STD)..ARL198708-199001

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90A03iFJ62,HJ6#..GX..ARL198904

GXL

main69901-90A05iBJ60,FJ62,HJ60..GEN198708-199203

W(*VW)

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-90A02iFJ62,HJ61..4FC..VX..ARL;FJ62,HJ61..HRF..GX..ARL198801-199001

main69902-90A04iBJ60,FJ62,HJ60..GEN198708-199203

W(*VW)

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90A01×2iBJ60,FJ62,HJ6#198708-199203

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850024

main90168-50024

9165140610

main91651-40610

16 parts on this diagram · 2 diagrams in section
