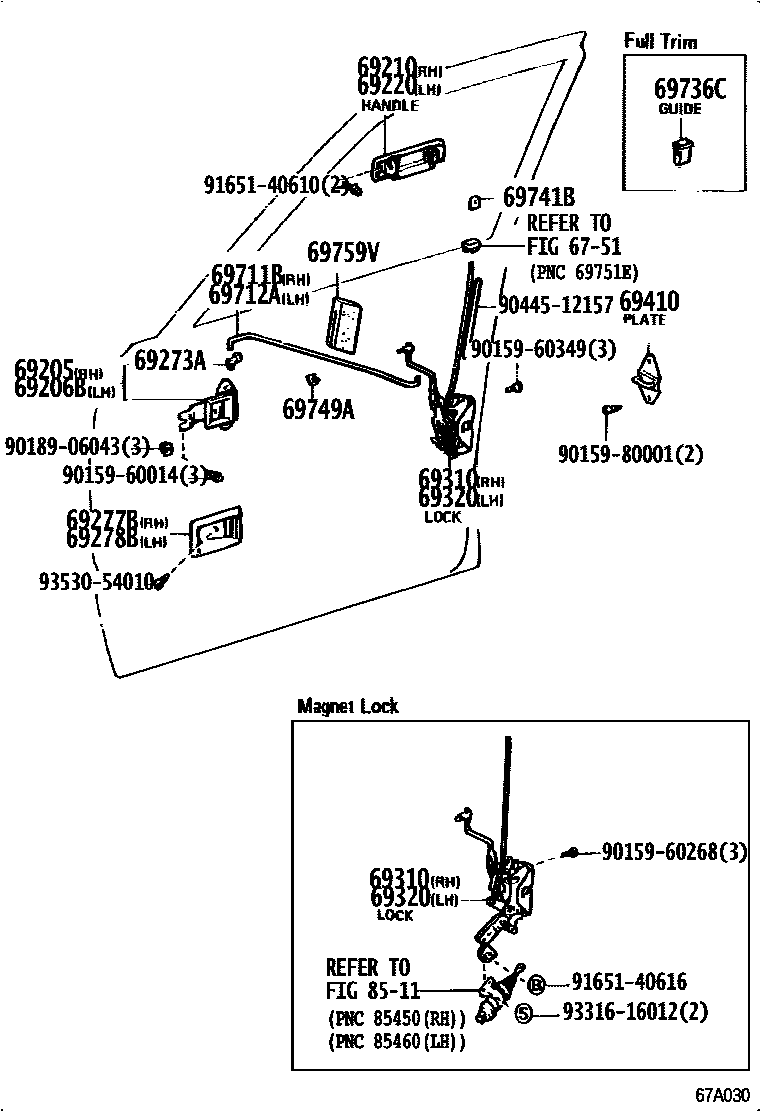

FRONT DOOR LOCK & HANDLE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20020iBJ60,FJ62,HJ6#198708-199203

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20020iBJ60,FJ62,HJ6#198708-199203

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-90A00iBJ60,FJ62,HJ6#198708-199203

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-90A00iBJ60,FJ62,HJ6#198708-199203

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69273-30020×2iBJ60,FJ62,HJ6#198708-199203

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-16040iFJ62199001-199203

main69277-16040-23iBJ60,FJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

main69277-16040-36iBJ60,FJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-16040iFJ62199001-199203

main69277-16040-23iBJ60,FJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

main69277-16040-36iBJ60,FJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

69310LOCK ASSY, FRONT DOOR, RH

main69310-90A00iBJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD198708-199203

main69310-90A01iFJ62,HJ61..VX..(ARL,ME)198708-199001

69320LOCK ASSY, FRONT DOOR, LH

main69320-90A00iBJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD198708-199203

main69320-90A01iFJ62,HJ61..VX..(ARL,ME)198708-199001

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-90B01×2iBJ60,FJ62,HJ6#198708-199203

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-90A00iBJ60,FJ62,HJ6#198708-199203

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-90A00iBJ60,FJ62,HJ6#198708-199203

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-90K00×2iBJ60,FJ62,HJ6#..GX,VX198708-199203

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00×2iFJ62199001-199203

main69741-90K00-06×2iBJ60,FJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010×2iBJ60,FJ62,HJ6#198708-199203

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021×2iBJ60,FJ62,HJ6#198708-199203

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9015960014

main90159-60014

9015960268

main90159-60268

9015960349

main90159-60349

9015980001

main90159-80001

9018906043

main90189-06043

9044512157

main90445-12157

9165140610

main91651-40610

9165140616

main91651-40616

9331616012

main93316-16012

9353054010

main93530-54010

28 parts on this diagram · 1 diagram in section
