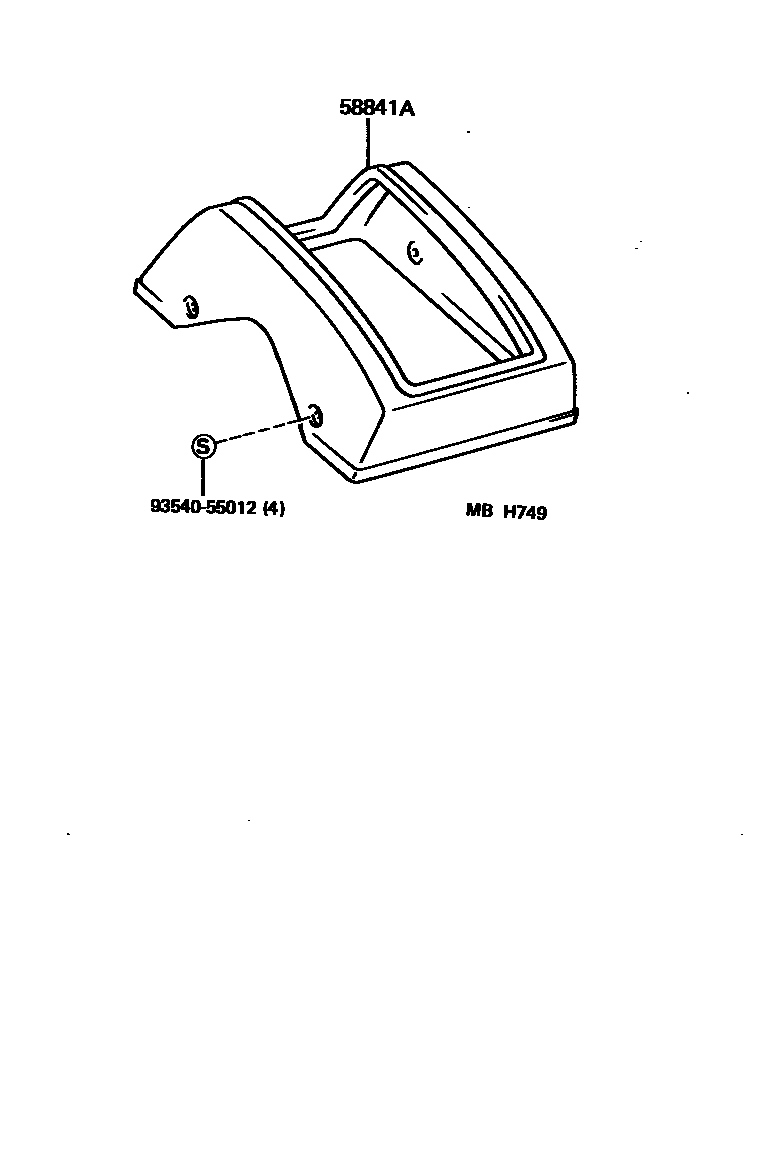

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58841ACOVER, SHIFTING HOLE

main58841-90A00-03iFJ62,HJ61..4FC..ARL198708-199001

SHADOW GRAY,TRIM1#

sub58841-90A00

main58841-90A00-06iFJ62,HJ61..4FC..ARL198708-199001

SEPIA BROWN,TRIM4#

sub58841-90A00

main58841-90A01-03iFJ62..LHD..4FC198708-199203

SHADOW GRAY,TRIM1#

sub58841-90A01

main58841-90A01-06iFJ62..LHD..4FC;HJ60..LHD..STD198708-199203

SEPIA BROWN,TRIM4#

sub58841-90A01

9354055012

main93540-55012

2 parts on this diagram · 3 diagrams in section
