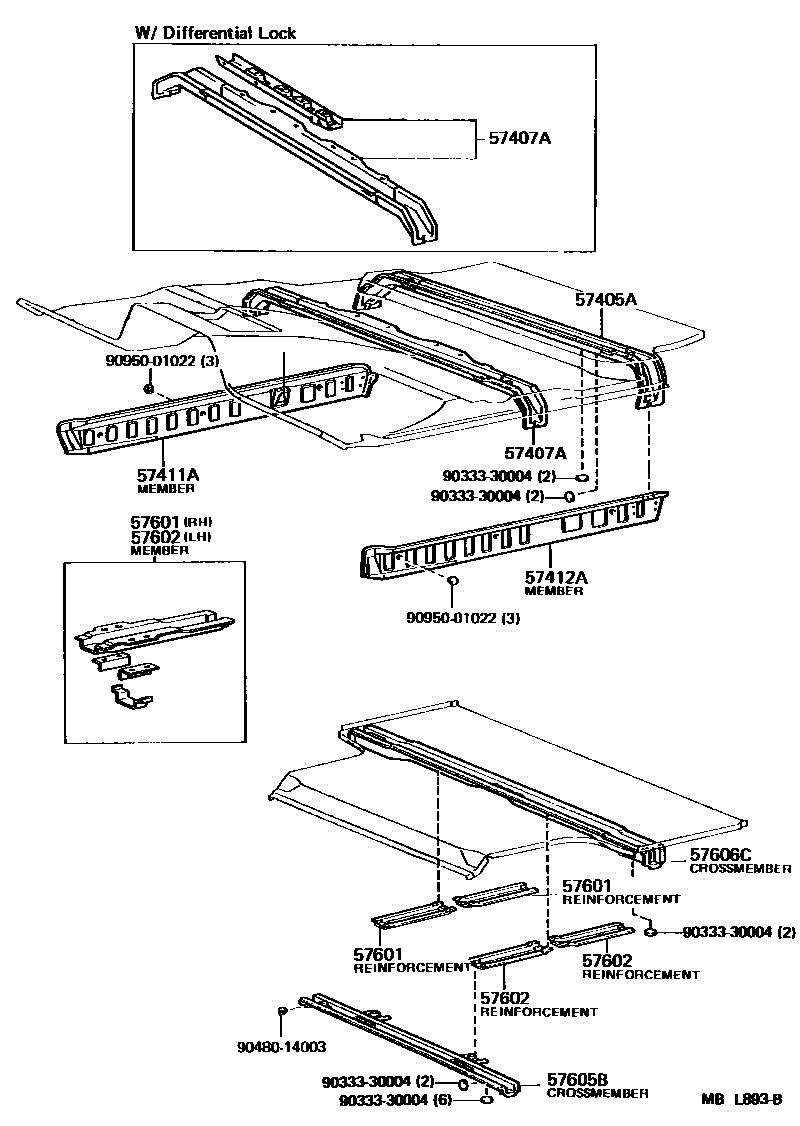

FLOOR MEMBER

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-90A07iFJ62,HJ6#..GX..ARL198904

GXL

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-90A38iFJ62,HJ60..RHD..GEN198708-198711

W(*DL)

main57407-90A43iFJ62,HJ60..RHD..GEN198708-199001

*SA

main57407-90A44iFJ62,HJ60..RHD..GX..GEN; FJ62,HJ60..RHD..STD..GEN198708-198711

*SA & W(*DL)

main57407-90A50iBJ60,FJ62,HJ60..SRF..STD..GEN; FJ62,HJ60..HRF..LUB..GEN; FJ62,HJ60..VX..GEN; FJ62..HRF..SOB..GX..GEN; FJ62..HRF..STD; FJ62..HRF..VX..ME; FJ62..SOB..GX..ME; FJ62..SRF..SOB..GX..GEN; FJ62..SRF..VX..ME; HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL198708-199001

W(*DL & REAR HEATER)

main57407-90A52iFJ62..RHD..GX..GEN; HJ60..RHD..GX..GEN; HJ60..STD..GEN198708-198711

main57407-90A57iFJ62,HJ6#..RHD..SRF198708-199001

W(*DL)

main57407-90A59iFJ62,HJ60..RHD..GX..GEN; FJ62,HJ61..HRF..ARL198708-199001

W(*DL)

main57407-90A61iFJ62..4F..SRF..SOB..GX; FJ62..5F..SOB..GX..GEN; FJ62..HRF..LUB..GEN; FJ62..HRF..SOB..GX..GEN; HJ60..HRF198708-198711

W(*DL)

main57407-90A65iFJ62..SRF..SOB..GX..GEN; HJ60..LHD..GX198708-198711

main57407-90A69iHJ60..LHD..GX..GEN;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..5F..SOB..(GX,STD);FJ62..LHD..(4F,4FC)..(GX,STD)198708-199203

W(*DL)

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-90A05iBJ60,FJ62,HJ6#198708-199203

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-90A05iBJ60,FJ62,HJ6#198708-199203

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-90A01×2iFJ62,HJ60..LHD..HRF..(GX,STD); HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(TRANSVERSE SEAT)

main57635-90A02×2iBJ60,HJ60;FJ62,HJ61..SRF;FJ62..LHD..HRF..(GX,STD)198708-199203

main57635-90A03×2iFJ62,HJ60..RHD..GEN198708-199001

*SA

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-90A00×2iFJ62,HJ60..LHD..HRF..(GX,STD); HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL198708-199001

W(TRANSVERSE SEAT)

main57635-90A02×2iBJ60,HJ60;FJ62,HJ61..SRF;FJ62..LHD..HRF..(GX,STD)198708-199203

main57635-90A03×2iFJ62,HJ60..RHD..GEN198708-199001

*SA

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-90A02iFJ62,HJ60..RHD..GEN198708-199001

*SA

main57605-90A03iBJ60,FJ62,HJ6#198708-198804

main57605-90A04iBJ60,FJ62,HJ6#198804-199203

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-90A06iFJ62,HJ60..HRF..LUB..GEN; FJ62,HJ61..HRF..ARL; FJ62..HRF..SOB..(GX,STD); FJ62..HRF..VX..ME198708-199001

W(TRANSVERSE SEAT)

main57606-90A07iBJ60,FJ62,HJ60..(GX,STD)..ME; BJ60,FJ62,HJ60..GEN; FJ62,HJ6#..SRF..ARL; FJ62..SRF..VX..ME198708-199203

main57606-90A09iFJ62,HJ60..RHD..GEN198708-199001

*SA

9033330004

main90333-30004

9048014003

main90480-14003

9095001022

main90950-01022

11 parts on this diagram · 1 diagram in section
