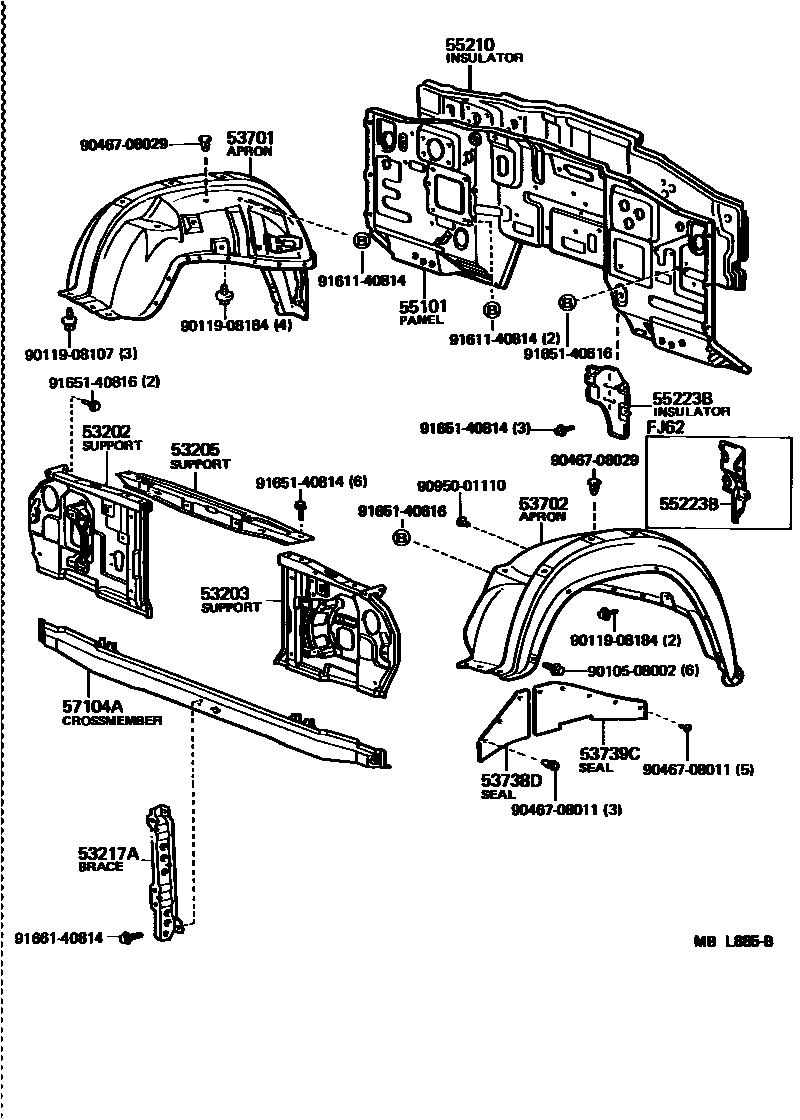

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-90A04iBJ60,FJ62,HJ6#198708-199203

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-90A05iBJ60,FJ62,HJ6#198708-199203

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-90A03iBJ60,FJ62,HJ6#198708-199203

53217ABRACE, HOOD LOCK SUPPORT

main53217-90A03iBJ60,FJ62,HJ6#198708-198801

main53217-90A05iBJ60,FJ62,HJ6#198801-199203

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-90G29iHJ60..STD..ARL198708-199001

W(POWER STEERING)

main53701-90G30iBJ60..LHD198708-198808

main53701-90G40iFJ62198708-199203

main53701-90G42iBJ60..RHD198708-199001

main53701-90G42iBJ60..LHD198708-198808

W(CLUTCH BOOSTER)

main53701-90G76iFJ62..VX..ME198708-199203

W(OVER FENDER)

main53701-90G81iHJ61198708-199001

main53701-90G83iHJ60..LUB..GEN198708-199001

W(OVER FENDER)

main53701-90G92iHJ60..STD..ARL198708-199001

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-90A14iBJ60198708-199001

main53702-90A17iFJ62..ARL198708-199001

main53702-90A23iHJ6#..RHD;FJ62..RHD..GEN198708-199001

main53702-90A33iHJ60..LHD;FJ62..LHD..GEN198708-199203

main53702-90A43iFJ62..4FC..ME;FJ62..5F..(GX,STD)..ME198708-199001

main53702-90A44iFJ62..5F..GX..ME198708-199001

W(CLUTCH BOOSTER)

main53702-90A48iFJ62..LUB..ARL198708-199001

W(OVER FENDER)

main53702-90A54iHJ6#..RHD..LUB;FJ62..RHD..GX..GEN198708-199001

W(OVER FENDER)

main53702-90A58iFJ62,HJ60..LHD..(GX,VX)..GEN198708-199203

W(OVER FENDER)

main53702-90A64iFJ62..VX..ME198708-199001

W(OVER FENDER)

53738DSEAL, FRONT FENDER APRON TO FRAME, FRONT

main53738-90A00iBJ60,FJ62,HJ6#198708-199203

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-90A00iBJ60,FJ62,HJ6#198708-199203

55101PANEL SUB-ASSY, DASH

main55016-90A03iBJ60..RHD198708-199001

W(SINGLE AIR CONDITIONER)

main55016-90A04iBJ60..RHD198708-199001

W(FRONT HEATER & SINGLE AIR CONDITIONER)

main55016-90A05iBJ60..RHD198708-199001

W(SINGLE AIR CONDITIONER & *CLB)

main55016-90A06iBJ60..RHD198708-199001

W(SINGLE AIR CONDITIONER & *CLB & FRONT HEATER)

main55016-90A19iBJ60..RHD198708-199001

W(FRONT HEATER & *CLB)

main55016-90A40iFJ62,HJ60..RHD..GEN198708-199001

main55016-90A41iFJ62,HJ60..RHD..GEN198708-199001

W(SINGLE AIR CONDITIONER)

main55016-90A43iFJ62,HJ6#..5F..ARL198708-199001

main55016-90A44iFJ62,HJ61..5F..HRF..ARL198708-199001

W(DUAL AIR CONDITIONER)

main55016-90A45iFJ62,HJ60..RHD..GEN198708-199001

*SA

main55016-90A46iFJ62,HJ60..RHD..GEN198708-199001

*SA & W(SINGLE AIR CONDITIONER)

main55016-90A47iFJ62,HJ60..RHD..GEN198708-199001

W(*CLB)

main55016-90A48iFJ62,HJ60..RHD..GEN198708-199001

W(SINGLE AIR CONDITIONER & *CLB)

main55016-90A51iFJ62,HJ6#..5F..ARL198708-199001

W(*CLB)

main55016-90A52iFJ62,HJ60..RHD..GEN;FJ62,HJ6#..5F..SRF..GX..ARL198708-199001

W(DUAL AIR CONDITIONER & *CLB)

main55016-90A55iFJ62,HJ61..4FC..ARL198708-199001

main55016-90A56iFJ62,HJ61..4FC..GX..ARL198708-199001

W(DUAL AIR CONDITIONER)

main55016-90A58iFJ62,HJ60..RHD..GEN198708-199001

*SA & W(*CLB)

main55016-90A59iFJ62,HJ60..RHD..GEN198708-199001

*SA & W(SINGLE AIR CONDITIONER & *CLB)

main55016-90A60iHJ60..LHD;FJ62..LHD..STD;FJ62..LHD..MTM..GX..GEN198708-199203

main55016-90A61iHJ60..LHD;FJ62..LHD..STD;FJ62..LHD..MTM..GX..GEN198708-199203

W(SINGLE AIR CONDITIONER)

main55016-90A61iFJ62..5F..GX..ME198708-199001

main55016-90A62iFJ62,HJ60..HRF..GEN198708-199203

W(DUAL AIR CONDITIONER)

main55016-90A67iHJ60..LHD;FJ62..LHD..MTM..GEN198708-199203

W(*CLB)

main55016-90A68iFJ62..5F..GX..ME198708-199001

W(*CLB)

main55016-90A68iHJ60..LHD;FJ62..LHD..MTM..GEN198708-199203

W(SINGLE AIR CONDITIONER & *CLB)

main55016-90A69iFJ62..5F..SRF..VX198708-199203

W(DUAL AIR CONDITIONER & *CLB)

main55016-90A69iFJ62..5F..HRF..VX..ME198708-199001

W(DUAL AIR CONDITIONER)

main55016-90A72iFJ62..4FC..GEN198708-199203

main55016-90A73iFJ62..4FC..GEN198708-199203

W(SINGLE AIR CONDITIONER)

main55016-90A73iFJ62..4FC..ME198708-199001

main55016-90A74iFJ62..LHD..4FC..LUB198708-199203

W(DUAL AIR CONDITIONER)

main55016-90A80iBJ60..LHD198708-198808

main55016-90A81iBJ60..LHD198708-198808

W(SINGLE AIR CONDITIONER)

main55016-90A82iBJ60..LHD..GEN198708-198808

W(FRONT HEATER)

main55016-90A83iBJ60..LHD..GEN198708-198808

W(FRONT HEATER & SINGLE AIR CONDITIONER)

main55016-90A84iBJ60..LHD198708-198808

W(*CLB)

main55016-90A85iBJ60..LHD198708-198808

W(SINGLE AIR CONDITIONER & *CLB)

main55016-90A86iBJ60..LHD..GEN198708-198808

W(FRONT HEATER & *CLB)

main55016-90A87iBJ60..ME198708-198808

W(SINGLE AIR CONDITIONER & *CLB & FRONT HEATER)

main55101-90675iBJ60..RHD198708-199001

W(*CLB)

main55101-90676iBJ60..RHD198708-199001

55210INSULATOR ASSY, DASH PANEL

main55210-90A08iBJ60,FJ62,HJ60..RHD198708-198808

main55210-90A10iHJ61198708-199001

main55210-90A12iBJ60,FJ62,HJ60..LHD198708-199203

main55210-90A13iBJ60,FJ62,HJ60..RHD198808-199001

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55223-90A04iBJ60198708-199001

main55225-90A00iFJ62198708-199203

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-90A03iBJ60,FJ62,HJ6#198708-199203

9010508002

main90105-08002

9011908107

main90119-08107

9011908184

main90119-08184

9046708011

main90467-08011

9046708029

main90467-08029

9095001110

main90950-01110

9161140814

main91611-40814

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9166140814

main91661-40814

23 parts on this diagram · 3 diagrams in section
