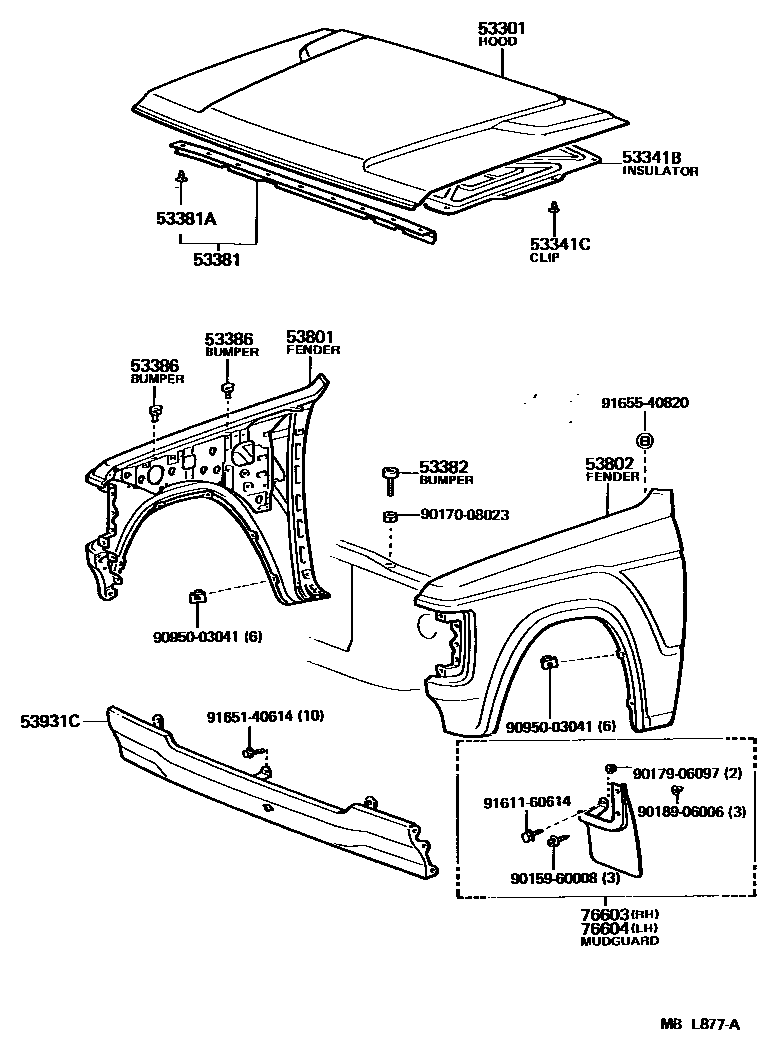

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-90A01iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

main53301-90A03iBJ60,FJ62,HJ60..ME198708-199001

53341BINSULATOR, HOOD

main53341-90A00iBJ60,FJ62,HJ60198708-199203

main53341-90A01iHJ61198708-199001

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×17iBJ60,FJ62,HJ6#198708-199203

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-90A00iBJ60,FJ62,HJ6#198708-199203

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iBJ60,FJ62,HJ6#198708-199203

53382BUMPER, HOOD, FRONT

main53382-90K01×2iBJ60,FJ62,HJ6#198806-199008

53386BUMPER, HOOD, REAR

main53382-30060×4iBJ60,FJ62,HJ6#198708-199203

53801FENDER SUB-ASSY, FRONT RH

main53801-90A85iHJ60..RHD..GEN198708-199001

main53801-90G09iFJ62..GX..GEN; FJ62..STD..GEN; HJ6#..LUB;FJ62..GX..ARL;FJ62..VX..(ARL,GEN)198708-198808

W(OVER FENDER)

main53801-90G22iBJ60,FJ62,HJ60..MTM..GEN198808-199203

W(*STAC)

main53801-90G26iHJ60..5F..SRF..GX..GEN; HJ60..HRF;HJ60..LHD..4F;FJ62..LHD..MTM..GX..GEN; HJ60..VX;FJ62,HJ60..RHD..GX..GEN198708-198808

W(*STAC & OVER FENDER)

main53801-90G29iFJ62..RHD..4F; FJ62..RHD..5F..GEN; HJ60..RHD..GX..GEN; HJ60..RHD..STD..GEN198708-199001

*SA

53802FENDER SUB-ASSY, FRONT LH

main53802-90A63iFJ62,HJ60..LHD..MTM..GX..GEN198708-198808

main53802-90A85iFJ62..VX..ME198708-199001

W(OVER FENDER)

main53802-90A94iFJ62,HJ60..RHD..GEN198708-199001

*SA

53931CPANEL, FRONT END

main53931-90A06iBJ60,FJ62,HJ6#198708-199203

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-69015iFJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD..(ARL,GEN)198708-199001

main76603-90A01iFJ62..VX..ME; HJ60..GX..ARL;FJ62,HJ61..5F..VX..ARL198708-199001

W(OVER FENDER)

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-69015iFJ62,HJ60..(GX,VX)..GEN198708-199203

main76604-90A01iFJ62..VX..ME; HJ60..GX..ARL;FJ62,HJ61..5F..VX..ARL198708-199001

W(OVER FENDER)

9015960008

main90159-60008

9017008023

main90170-08023

9017906097

main90179-06097

9018906006

main90189-06006

9095003041

main90950-03041

9161160614

main91611-60614

9165140614

main91651-40614

9165540820

main91655-40820

20 parts on this diagram · 2 diagrams in section
