FRONT AXLE ARM & STEERING KNUCKLE

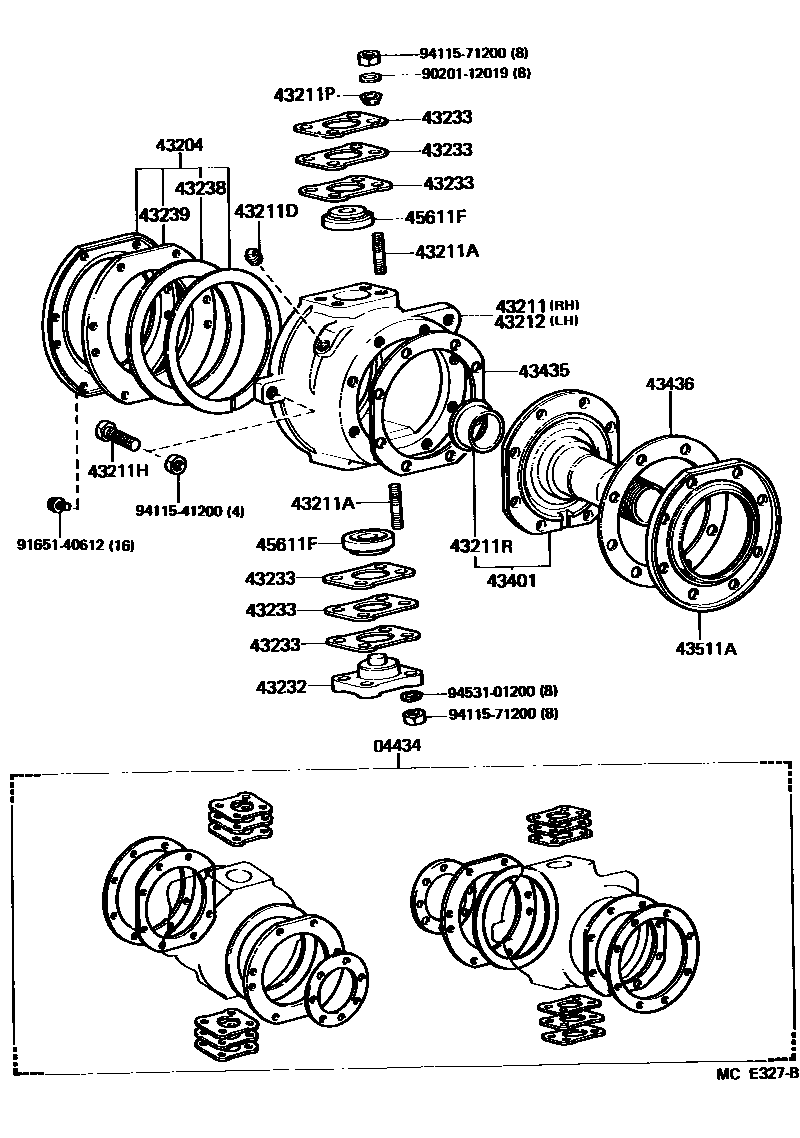

Parts diagram

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60012i198708-199203

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60020×2i198708-199203

43211KNUCKLE, STEERING, RH

main43211-60040i198708-199203

W(FREE WHEEL HUB)

main43211-60050i198708-199003

W(FRONT DISC BRAKE)

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007×16i198708-199203

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020×2i198708-199203

43211HBOLT, ROUND HEXAGON

main90106-12022×4i198708-199203

43211PWASHER, CONE (FOR STEERING KNUCKLE)

main42323-60020×8i198708-199203

43211RBUSH (FOR STEERING KNUCKLE)

main90381-33001×2i198708-199001

main90381-33002×2i199001-199203

43212KNUCKLE, STEERING, LH

main43212-60040i198708-199203

W(FREE WHEEL HUB)

main43212-60050i199003-199203

VENEZUELA CKD SPEC OR W(FRONT DISC BRAKE)

43232CAP, STEERING KNUCKLE BEARING

main43232-35010×2i198708-199203

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60011i198708-199203

T=0.20

main43234-60011i198708-199203

T=0.50

main43235-60010i198708-199203

T=1.0

main43236-60010i198708-199203

T=0.1

main43237-60030i198708-199203

T=0.30

43238SEAL, STEERING KNUCKLE OIL, INNER

main43238-60010×2i198708-199203

43239SEAL, STEERING KNUCKLE OIL, OUTER

main43239-60020×2i198708-199203

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60012×2i198708-199001

main43401-60060×2i199001-199203

43435GASKET, KNUCKLE SPINDLE

main43435-60011×2i198708-199203

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011×2i198708-199203

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93011×2i198708-199203

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-17001×4i198708-199203

9020112019

main90201-12019

9165140612

main91651-40612

9411541200

main94115-41200

9411571200

main94115-71200

9453101200

main94531-01200

23 parts on this diagram · 1 diagram in section
