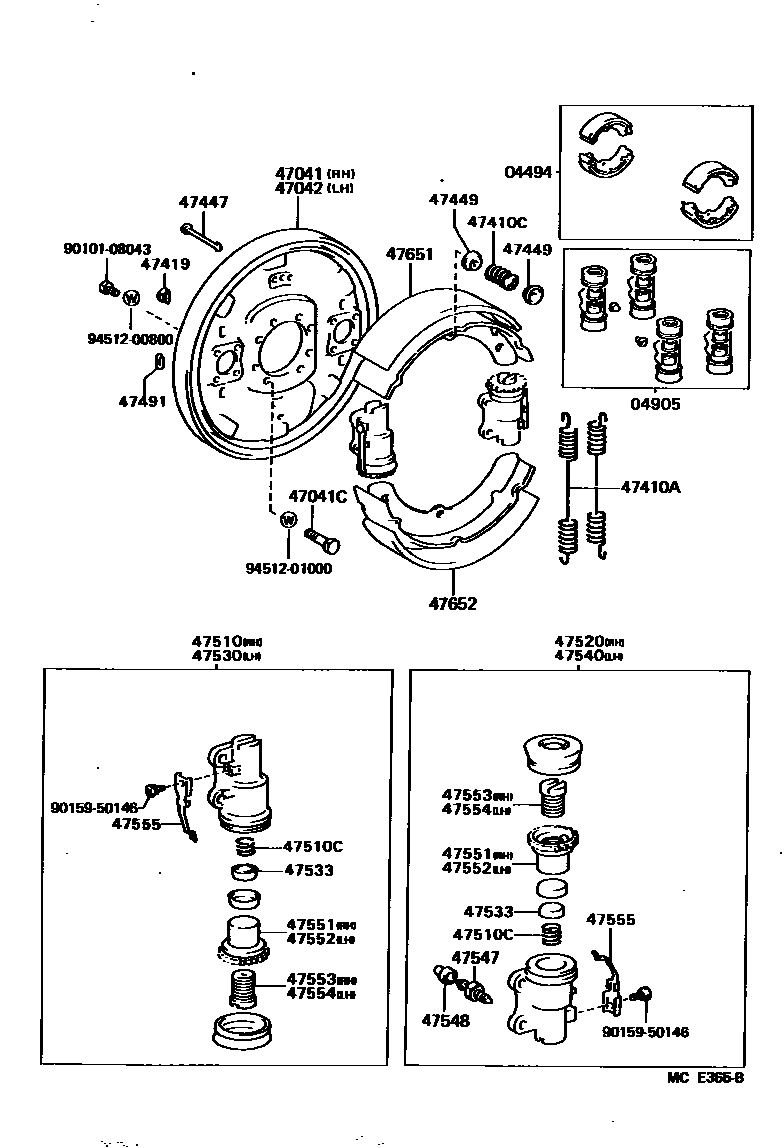

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04494SHOE KIT, FRONT BRAKE
sub04494-60031
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
*14-1.25PX28-20
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410ASPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47419PLUG, HOLE(FOR FRONT BRAKE)
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491PLUG, HOLE(FOR FRONT BRAKE)
sub47491-36020
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9010108043
main90101-08043
9015950146
main90159-50146
9451200800
main94512-00800
9451201000
main94512-01000
30 parts on this diagram · 1 diagram in section
