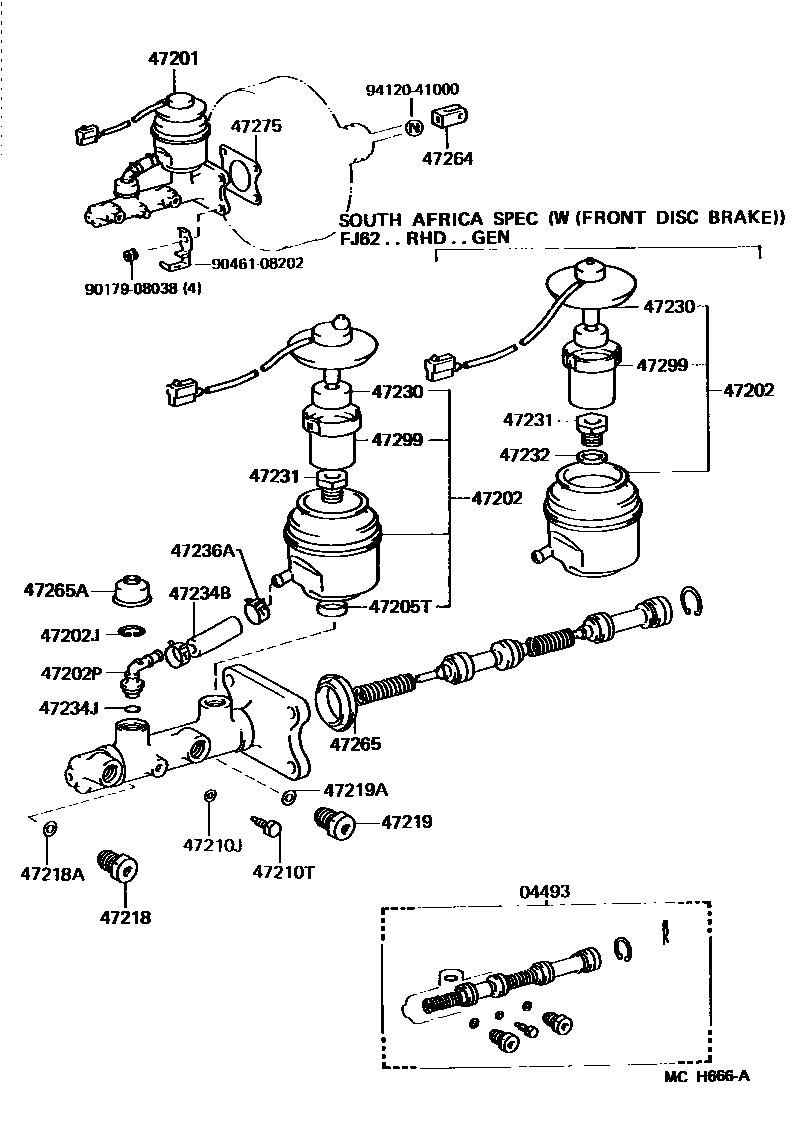

BRAKE MASTER CYLINDER

0001 1 0002 1FRONT DISC BRAKE

04493CYLINDER KIT, BRAKE MASTER

main04493-60090iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

sub04493-60170

main04493-60110iFJ62..RHD..GEN198708-199001

sub04493-60130

main04493-60130iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

main04493-60180iBJ60,FJ62,HJ60..GEN198708-199203

W(FRONT DISC BRAKE)

main04493-60180iBJ60,FJ62,HJ6#..ARL,ME198708-199001

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60210iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

main47201-60320iFJ62..RHD..GEN198708-199001

main47201-60330iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

main47201-60370iFJ62,HJ6#..ARL198708-199001

W(FRONT DISC BRAKE)

sub47201-60380

main47201-60380iBJ60,FJ62,HJ60..ME198708-199001

main47201-60380iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

W(FRONT DISC BRAKE)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20320iFJ62..RHD..GEN198708-199001

W(FRONT DISC BRAKE)

main47202-60030iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

main47202-60070iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

main47202-60110iBJ60,FJ62,HJ60..ME198708-199001

main47202-60110iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

W(FRONT DISC BRAKE)

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iBJ60,FJ62,HJ60..GEN198708-199203

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iFJ62..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

sub90407-10004

main90407-10004iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main90562-18151iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ60,FJ62,HJ6#198708-199203

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

main90109-06008iBJ60,FJ62,HJ60..GEN198708-199203

main90109-06077iBJ60,FJ62,HJ6#..ARL,ME198708-199001

main90109-06077iBJ60,FJ62,HJ60..GEN198708-199203

W(FRONT DISC BRAKE)

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iBJ60,FJ62,HJ60..GEN198708-199203

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iBJ60,FJ62,HJ60..GEN198708-199203

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-12040iBJ60,FJ62,HJ60..GEN198708-199203

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iBJ60,FJ62,HJ60..GEN198708-199203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iHJ60..LHD..STD;BJ60,FJ62,HJ6#..ARL,ME198708-199001

main84460-12070iBJ60,FJ62..GEN;HJ60..LUB..GEN;HJ60..RHD..STD..GEN198708-199203

W(FRONT DISC BRAKE)

main84460-20051iBJ60,FJ62..GEN;HJ60..LUB..GEN;HJ60..RHD..STD..GEN198708-199203

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ60,HJ60..GEN;FJ62..LHD..GEN198708-199203

main47231-30010iHJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iFJ62..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

47234BTUBE, RESERVOIR, NO.1

main47234-14010iBJ60,FJ62,HJ60..GEN198708-199203

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ60,FJ62,HJ60..GEN198708-199203

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iBJ60,FJ62,HJ60..GEN198708-199203

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ60,FJ62,HJ60..GEN,ME198708-199203

main47264-30040iFJ62,HJ6#..ARL198708-199001

47265BOOT, MASTER CYLINDER

main47265-20050iBJ60,FJ62,HJ6#..ARL,ME198708-199001

main47265-20050iBJ60,FJ62,HJ60..GEN198708-199203

W(FRONT DISC BRAKE)

main47265-35030iBJ60,FJ62,HJ60..GEN198708-199203

47265ABOOT, MASTER CYLINDER, NO.1

main47265-20060iBJ60,FJ62,HJ60..GEN198708-199203

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

main47275-24010iBJ60,FJ62,HJ6#198708-199203

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010iFJ62,HJ60..RHD..GEN198708-199001

SOUTH AFRICA SPEC & W(FRONT DISC BRAKE)

main47299-14010iBJ60,FJ62,HJ60..GEN198708-199203

main47299-32010iBJ60,FJ62,HJ60..GEN198708-199203

W(FRONT DISC BRAKE)

main47299-32010iBJ60,FJ62,HJ6#..ARL,ME198708-199001

9017908038

main90179-08038

9046108202

main90461-08202

9412041000

main94120-41000

26 parts on this diagram · 2 diagrams in section
