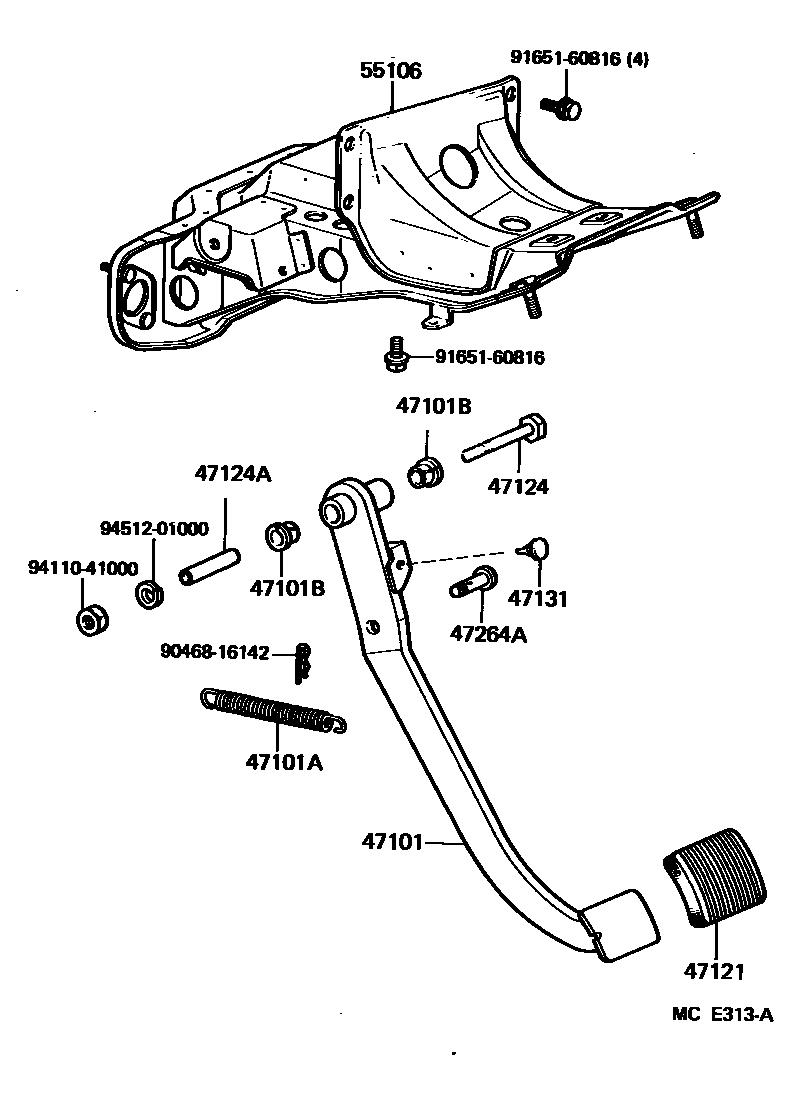

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-60081iBJ60,FJ62,HJ6#..RHD..MTM198708-199001

main47101-60091iBJ60,FJ62,HJ60..LHD..MTM198708-199203

main47101-60140iFJ62,HJ61..4FC..ARL198708-199001

main47101-60150iFJ62..LHD..4FC198708-199203

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12451iBJ60,FJ62,HJ6#198708-199203

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192×2iBJ60,FJ62,HJ6#198708-199203

47121PAD, BRAKE PEDAL

main31321-36010iBJ60,FJ62,HJ6#..MTM198708-199203

main47121-30050iFJ62,HJ61..4FC198708-199203

47124SHAFT, BRAKE PEDAL

main91121-51070iBJ60,FJ62,HJ6#198708-199203

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBJ60,FJ62,HJ6#198708-199203

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBJ60,FJ62,HJ6#198708-199203

47264APIN(FOR PUSH ROD)

main90249-10017iBJ60,FJ62,HJ6#198708-199203

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-90A11iBJ60,FJ62,HJ6#..RHD..MTM198708-199001

main55106-90A12iBJ60,HJ60..LHD;FJ62..LHD..MTM..(GX,STD)198708-199203

main55106-90A13iBJ60,FJ62,HJ6#..RHD..MTM198708-199001

W(CLUTCH BOOSTER)

main55106-90A14iFJ62..5F..VX..ME198708-199001

main55106-90A15iFJ62,HJ61..4FC..ARL198708-199001

main55106-90A16iFJ62..LHD..4FC198708-199203

9046816142

main90468-16142

9165160816

main91651-60816

9411041000

main94110-41000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
