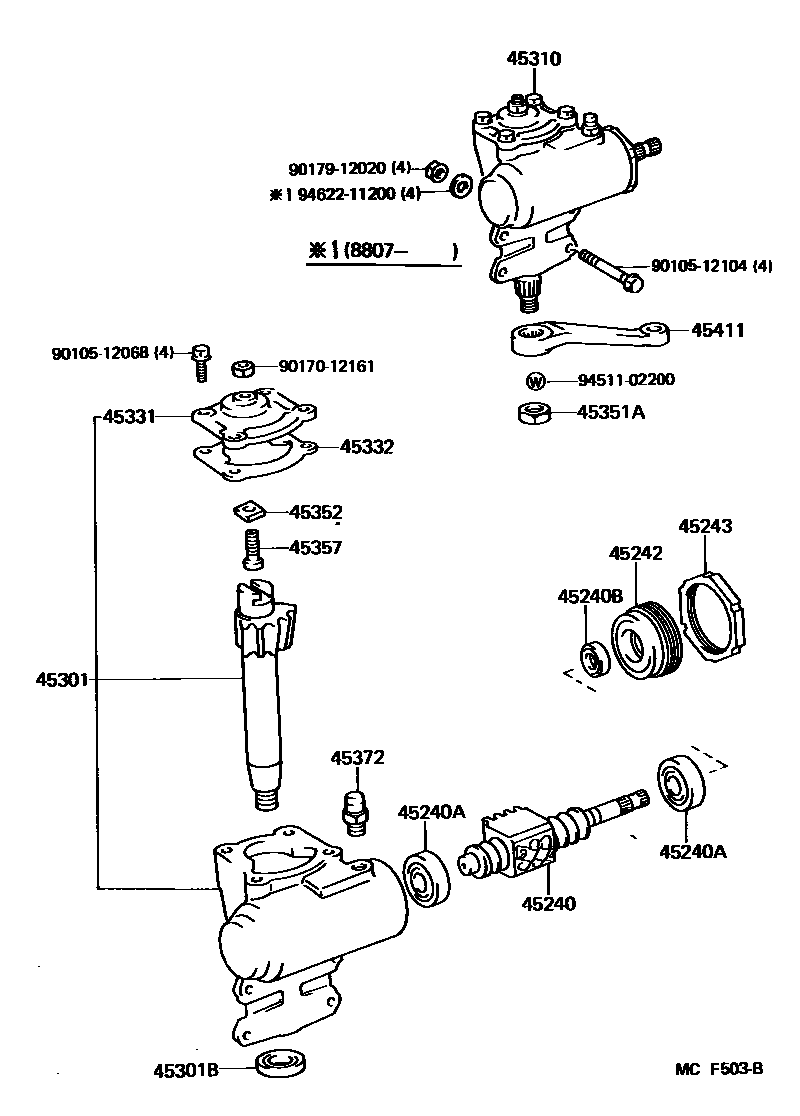

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1POWER STEERING 0004 1POWER STEERING 0005 1POWER STEERING 0006 1POWER STEERING 0007 1

45240WORM ASSY, STEERING

main45240-60030iFJ62..STD..ME;FJ62..LHD..(GX,STD)..GEN;BJ60,HJ60..LHD..(GX,STD)198708-199203

main45240-60040iFJ62,HJ60..STD..ARL;BJ60,FJ62,HJ60..RHD..GEN198708-199001

45240ABEARING(FOR STEERING WORM)

main90363-20024×2iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45242SCREW, WORM BEARING ADJUSTING

main45242-60020iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-60060iFJ62,HJ60..STD..ARL;BJ60,FJ62,HJ60..RHD..GEN198708-199001

main45301-60070iFJ62..STD..ME;FJ62..LHD..(GX,STD)..GEN;BJ60,HJ60..LHD..(GX,STD)198708-199203

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90310-36002iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-198712

main90311-36004iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198712-199203

45310HOUSING ASSY, STEERING GEAR

main45310-60090iFJ62,HJ60..STD..ARL;BJ60,FJ62,HJ60..RHD..GEN198708-199001

main45310-60100iFJ62..STD..ME;FJ62..LHD..(GX,STD)..GEN;BJ60,HJ60..LHD..(GX,STD)198708-199203

45331COVER, SECTOR SHAFT END

main45304-26010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

MARK 1

main45304-26020iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

MARK 2

main45304-26030iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

MARK 3

main45304-26040iFJ62,HJ60..STD..ARL;BJ60,FJ62,HJ60..RHD..GEN; FJ62..STD..ME;FJ62..LHD..(GX,STD)..GEN;BJ60,HJ60..LHD..(GX,STD)198712-199203

MARK 4; MRAK 4

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

T=1.95

main45353-37010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

T=2.00

main45354-37010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

45411ARM, PITMAN

main45411-60090iFJ62..(GX,STD)..GEN;FJ62,HJ60..STD..(ARL,ME);BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

9010512068

main90105-12068

9010512104

main90105-12104

9017012161

main90170-12161

9017912020

main90179-12020

9451102200

main94511-02200

9462211200

main94622-11200

21 parts on this diagram · 7 diagrams in section
