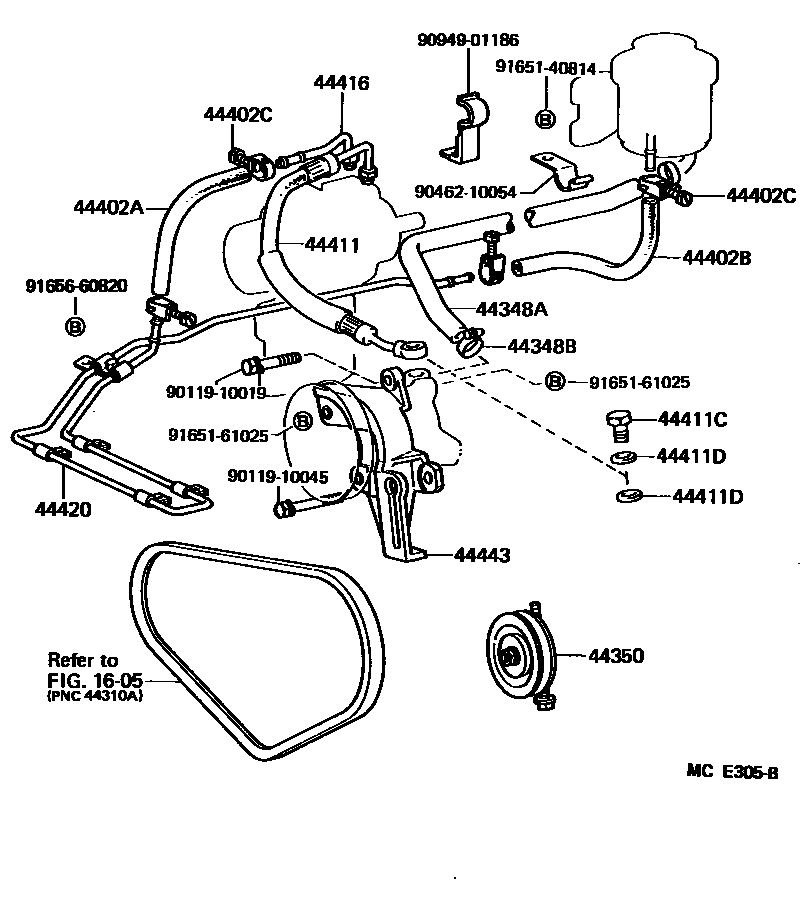

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60070iHJ6#198708-199001

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iHJ6#198708-199001

44350PULLEY ASSY, POWER STEERING IDLE

main16630-47020iHJ6#198708-199001

main44350-60010iBJ60198708-199001

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18089iBJ60,FJ62,HJ6#..RHD198708-199001

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18085iFJ62..RHD198708-199001

main90445-18089iHJ6#..RHD198708-199001

main90447-18008iBJ60..RHD198708-199001

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×4iBJ60,FJ62,HJ6#..RHD198708-199001

44411HOSE, PRESSURE FEED

main44411-60262iFJ62..RHD198708-199001

main44411-60280iBJ60..RHD198708-199001

main44411-60310iHJ6#..RHD198708-199001

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iHJ6#..MTM198708-199001

main90401-16010iHJ61..4FC198708-199001

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242×2iHJ6#198708-199001

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60061iBJ60,FJ62,HJ6#198708-199203

44420COOLER ASSY, OIL

main44420-60060iBJ60,FJ62..RHD198708-199001

main44420-60080iHJ6#..RHD198708-199001

44443BRACKET, PUMP

main44443-60050iFJ62198708-199203

main44443-60060iBJ60198708-199001

main44443-60071iHJ6#198708-199001

9011910019

main90119-10019

9011910045

main90119-10045

9046210054

main90462-10054

9094901186

main90949-01186

9165140814

main91651-40814

9165161025

main91651-61025

9165660820

main91656-60820

20 parts on this diagram · 6 diagrams in section
