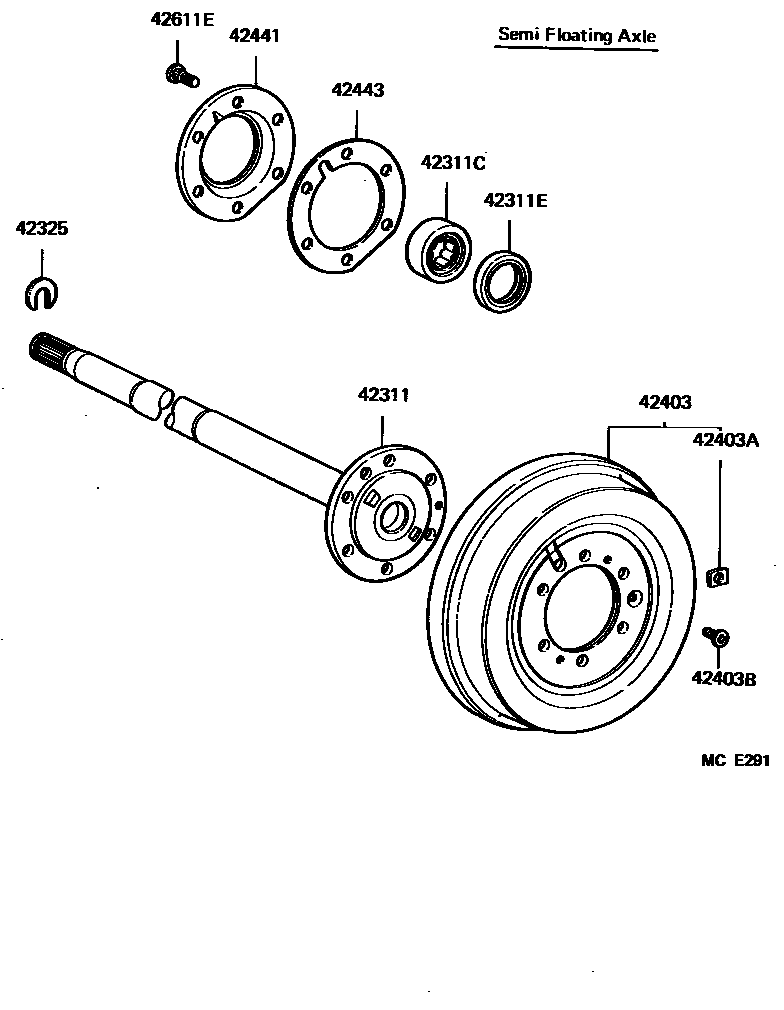

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-60052iBJ60,FJ62,HJ60..GEN,ME198708-199004

W(*FFA),RH

main42311-60060iBJ60,FJ62,HJ60..GEN,ME198708-198905

RH

main42311-60061iBJ60,FJ62,HJ60..GEN,ME198905-199203

RH

main42311-60080iFJ62..4FC; FJ62..5F199004-199203

W(*RDL & *FFA),RH

main42312-60050iBJ60,FJ62,HJ60..GEN,ME198708-198905

LH

main42312-60051iBJ60,FJ62,HJ60..GEN,ME198905-199203

LH

main42312-60060iFJ62,HJ60..MTM..GEN; FJ62..5F..ME;FJ62..LHD..4FC198708-199004

W(*FFA),LH

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013×2iBJ60,FJ62,HJ60..GEN,ME198708-199203

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iBJ60;HJ60..ME; FJ62,HJ6#..ARL198708-199001

W(*FFA)

main90311-47001×2iBJ60,FJ62,HJ60..GEN,ME198708-199203

42325LOCK, REAR AXLE SHAFT

main42325-55010×2iBJ60,FJ62,HJ60..GEN,ME198708-199203

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020×2iBJ60,FJ62,HJ6#198708-199203

main42431-60050×2iFJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN198708-199203

VENEZUELA CKD SPEC & W(*SFA)

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iBJ60,FJ62,HJ6#198708-199001

10G

main90937-01118iFJ62199001-199203

20G

main90937-01119iBJ60,FJ62,HJ6#198708-199001

30G

main90937-01121iBJ60,FJ62,HJ6#198708-199001

50G

main90937-01122iBJ60,FJ62,HJ6#198708-199001

60G

main90937-01408iFJ62199001-199203

20G,W(*FFA)

main90937-01409iFJ62199001-199203

30G,W(*FFA)

main90937-01410iFJ62199001-199203

40G,W(*FFA)

main90937-01411iFJ62199001-199203

50G,W(*FFA)

main90937-01412iFJ62199001-199203

60G,W(*FFA)

main90937-01413iFJ62199001-199203

70G,W(*FFA)

main90937-01414iFJ62199001-199203

80G,W(*FFA)

main90937-01415iFJ62199001-199203

90G,W(*FFA)

main90937-01416iFJ62199001-199203

100G,W(*FFA)

main90937-01417iFJ62199001-199203

110G,W(*FFA)

main90937-01418iFJ62199001-199203

120G,W(*FFA)

main90937-01419iFJ62199001-199203

10G,W(*FFA)

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10003×2iBJ60,FJ62,HJ6#198708-199203

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2iBJ60,FJ62,HJ60..GEN,ME198708-199203

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2iBJ60,FJ62,HJ60..GEN,ME198708-199203

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02052×12iHJ60..ARL,GEN;BJ60,FJ62,HJ61198708-199203

10 parts on this diagram · 2 diagrams in section
