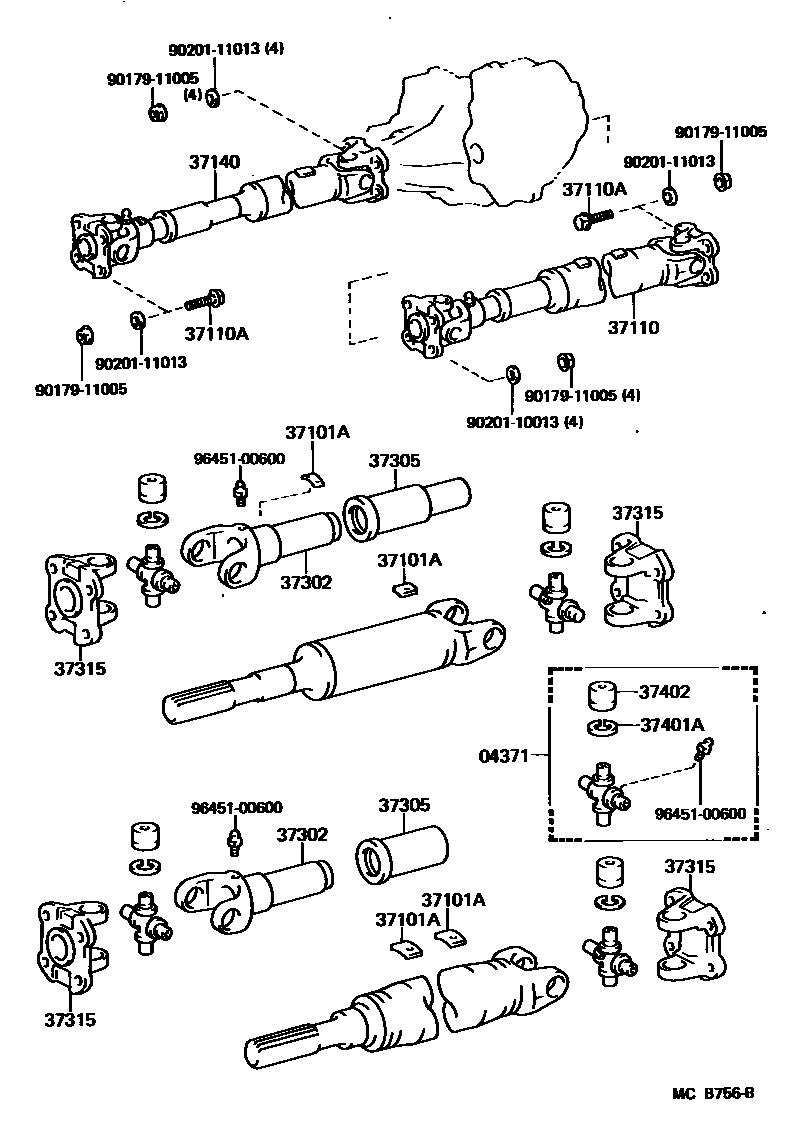

PROPELLER SHAFT & UNIVERSAL JOINT

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030×4iBJ60,FJ62,HJ6#198708-199203

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBJ60,FJ62,HJ6#198708-199004

10G,L=20.7

main90937-01136iBJ60,FJ62,HJ6#198708-199004

20G,L=41.4

main90937-01140iFJ62199004-199203

30G,L=62.2

main90937-01147iBJ60,FJ62,HJ6#198708-199004

2G,T=2.0

main90937-01148iFJ62199004-199203

4G,T=2.0

main90937-01149iBJ60,FJ62,HJ6#198708-199004

6G,L=12.4

main90937-01150iBJ60,FJ62,HJ6#198708-199004

8G,L=16.6

main90937-01151iFJ62199004-199203

12G,L=24.9

main90937-01152iBJ60,FJ62,HJ6#198708-199004

14G,L=29.0

main90937-01153iFJ62199004-199203

16G,L=33.2

main90937-01154iFJ62199004-199203

18G,L=37.3

main90937-01155iBJ60,FJ62,HJ6#198708-199004

22G,L=45.6

main90937-01156iFJ62199004-199203

24G,L=49.7

main90937-01157iBJ60,FJ62,HJ6#198708-199004

26G,L=53.9

main90937-01158iFJ62199004-199203

28G,L=58.1

main90937-01184iBJ60,FJ62,HJ6#198708-199203

4G,T=1.6

main90937-01191iBJ60,FJ62,HJ6#198708-199203

8G,T=1.6

main90937-01192iBJ60,FJ62,HJ6#198708-199203

12G,T=4.5

main90937-01193iBJ60,FJ62,HJ6#198708-199203

16G,T=4.5

main90937-01194iBJ60,FJ62,HJ6#198708-199203

20G,T=4.5

main90937-01198iBJ60,FJ62,HJ6#198708-199203

24G,T=4.5,L=25.1

main90937-01199iBJ60,FJ62,HJ6#198708-199203

28G,T=6,L=22.7

main90937-01200iBJ60,FJ62,HJ6#198708-199203

32G,T=6,L=24.3

main90937-01268iBJ60,FJ62,HJ6#198708-199203

36G,L=23.1,T=8.0

main90937-01269iBJ60,FJ62,HJ6#198708-199203

40G,L=25.6

main90937-01270iFJ62199004-199203

44G,L=22.6

main90937-01271iFJ62199004-199203

48G,L=24.6

main90937-01272iFJ62199004-199203

52G,L=26.7

main90937-01273iFJ62199004-199203

56G,L=28.7

main90937-01274iFJ62199004-199203

60G,L=28.7

37110SHAFT ASSY, PROPELLER

main37110-36520iBJ60,FJ62,HJ6#..MTM198708-199203

main37110-60410iFJ62,HJ61..4FC198708-199203

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013×8iBJ60,FJ62,HJ6#198708-199203

*11-1.00PX28-16

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60200iFJ62,HJ61..4FC198708-199203

main37140-60220iBJ60,FJ62,HJ6#..MTM198708-199203

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36020iBJ60,FJ62,HJ6#198708-199203

RR

main37302-60050iBJ60,FJ62,HJ6#198708-199203

FR

37305COVER SUB-ASSY, SLIDING SHAFT DUST

main37305-36020iBJ60,FJ62,HJ6#198708-199203

RR

main37305-60010iBJ60,FJ62,HJ6#198708-199203

FR

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020×4iBJ60,FJ62,HJ6#198708-199203

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024×16iBJ60,FJ62,HJ6#198708-199203

T=2.00,NO MARK

main90520-29025×16iBJ60,FJ62,HJ6#198708-199203

T=2.03,BROWN

main90520-29026×16iBJ60,FJ62,HJ6#198708-199203

T=2.06,BLUE

main90520-29027×16iBJ60,FJ62,HJ6#198708-199203

T=2.09,NO MARK

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36070×16iBJ60,FJ62,HJ6#198708-199203

main37402-36080×16iBJ60,FJ62,HJ6#198708-199203

RED PAINTED

9017911005

main90179-11005

9020110013

main90201-10013

9020111013

main90201-11013

9645100600

main96451-00600

14 parts on this diagram · 1 diagram in section
