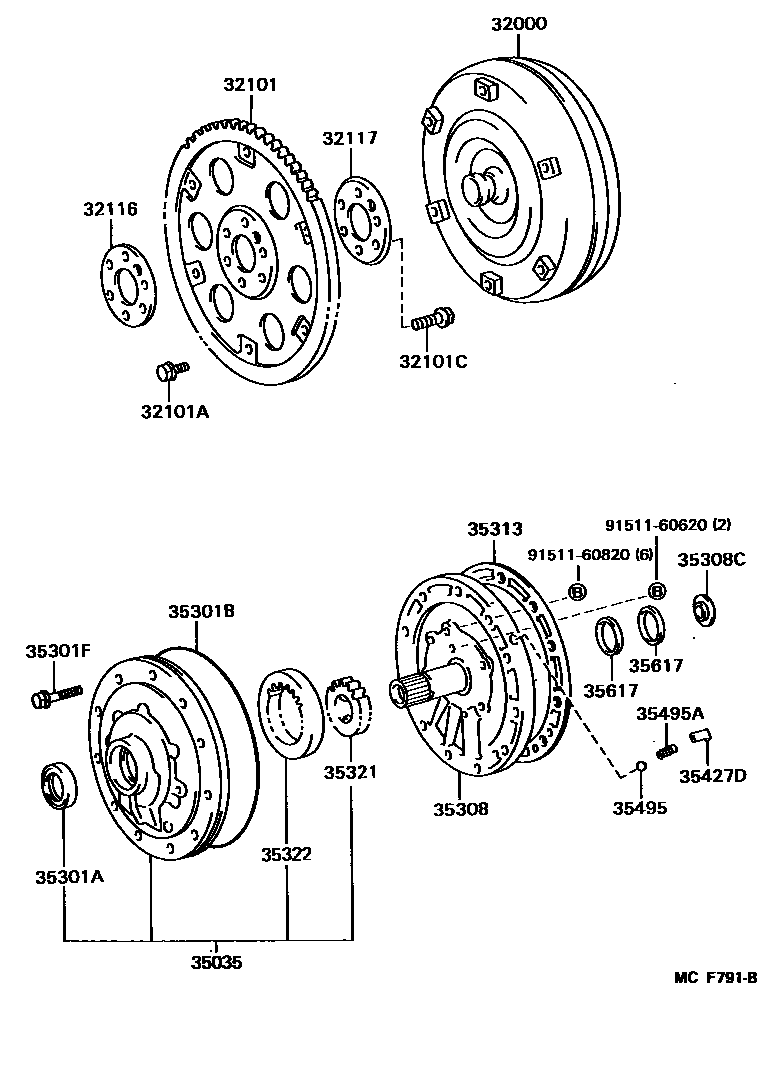

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-60010iFJ62..4FC198708-198910

main32000-60011iFJ62..4FC198910-199203

main32000-60021iHJ61..4FC198708-199001

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-60010iFJ62..4FC198708-198906

main32101-60011iFJ62..4FC198906-199203

main32101-60020iHJ61..4FC198708-199001

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-08497×5iFJ62,HJ61..4FC198708-199203

*8-1.25PX14-10

main90119-08523iFJ62,HJ61..4FC198708-199203

*8-1.25PX14-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10115×6iFJ62..4FC198708-198906

main90105-11030×6iFJ62..4FC198906-199203

main90105-12039×6iHJ61..4FC198708-199001

32116SPACER, DRIVE PLATE, FRONT

main32116-60010iFJ62..4FC198708-198906

main32116-60011iFJ62..4FC198906-199203

main32116-60020iHJ61..4FC198708-199001

32117SPACER, DRIVE PLATE, REAR

main32117-60010iFJ62..4FC198708-198906

main32117-60011iFJ62..4FC198906-199203

main32117-60020iHJ61..4FC198708-199001

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-36010iFJ62,HJ61..4FC198708-199203

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-42010iFJ62,HJ61..4FC198708-199203

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99029iFJ62,HJ61..4FC198708-199203

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main91511-60850×11iFJ62,HJ61..4FC198708-199203

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-36010iFJ62,HJ61..4FC198708-199203

35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

main35789-36040iFJ62,HJ61..4FC198708-199002

T=0.8

main35789-36050iFJ62..4FC199002-199203

T=1.0

main35789-36060iFJ62,HJ61..4FC198708-199002

T=1.4

35313GASKET, FRONT OIL PUMP COVER

main35313-36010iFJ62,HJ61..4FC198708-199203

35321GEAR, FRONT OIL PUMP DRIVE

main35321-36010iFJ62..4FC199002-199203

T=18.45-18.48

main35321-36020iFJ62,HJ61..4FC198708-199002

T=18.43-18.45

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-36010iFJ62..4FC199002-199203

T=18.45-18.48

main35322-36020iFJ62..4FC199002-199203

T=18.43-18.45

35427DSEAT, CHECK VALVE SPRING

main35427-36010iFJ62,HJ61..4FC198708-199203

35495BALL, CHECK

main35495-36010iFJ62,HJ61..4FC198708-199203

35495ASPRING, COMPRESSION (FOR CHECK BALL)

main90501-18677iFJ62,HJ61..4FC198708-199203

35617RING, CLUTCH DRUM OIL SEAL

main35617-36010×2iFJ62,HJ61..4FC198708-199203

9151160620

main91511-60620

9151160820

main91511-60820

21 parts on this diagram · 1 diagram in section
