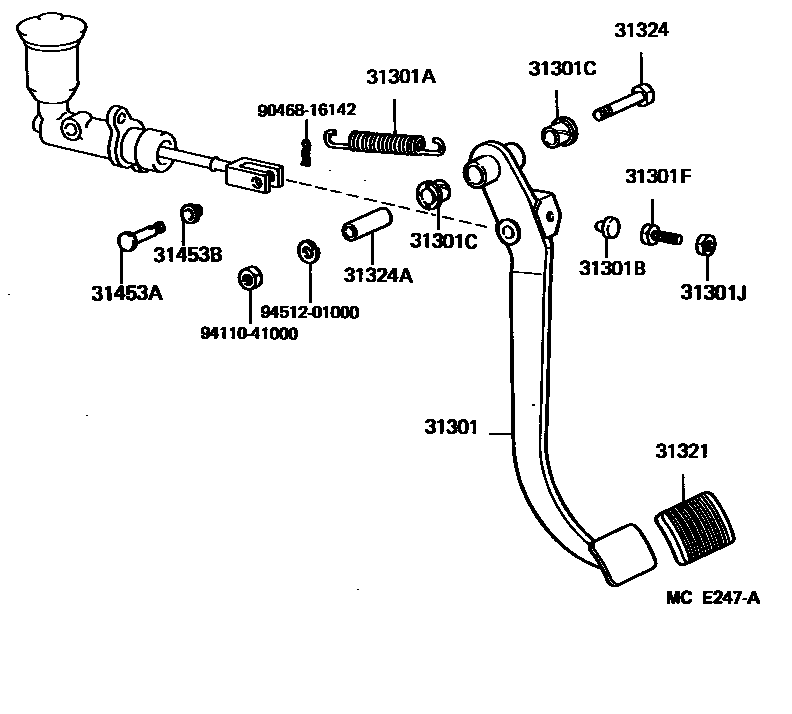

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-60071iBJ60,FJ62,HJ6#..RHD..MTM198708-199001

main31301-60081iBJ60,FJ62,HJ60..LHD..MTM198708-199203

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14037iBJ60,FJ62,HJ6#..MTM198708-199203

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iBJ60,FJ62,HJ6#..MTM198708-199203

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iBJ60,FJ62,HJ6#..MTM198708-199203

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iBJ60,FJ62,HJ6#..MTM198708-199203

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-40800iBJ60,FJ62,HJ6#..MTM198708-199203

31321PAD, CLUTCH PEDAL

main31321-36010iBJ60,FJ62,HJ6#..MTM198708-199203

31324SHAFT, CLUTCH PEDAL

main91121-51070iBJ60,FJ62,HJ6#..MTM198708-199203

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBJ60,FJ62,HJ6#..MTM198708-199203

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iBJ60,FJ62,HJ6#..MTM198708-199203

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iBJ60,FJ62,HJ6#..MTM198708-199203

9046816142

main90468-16142

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 3 diagrams in section
