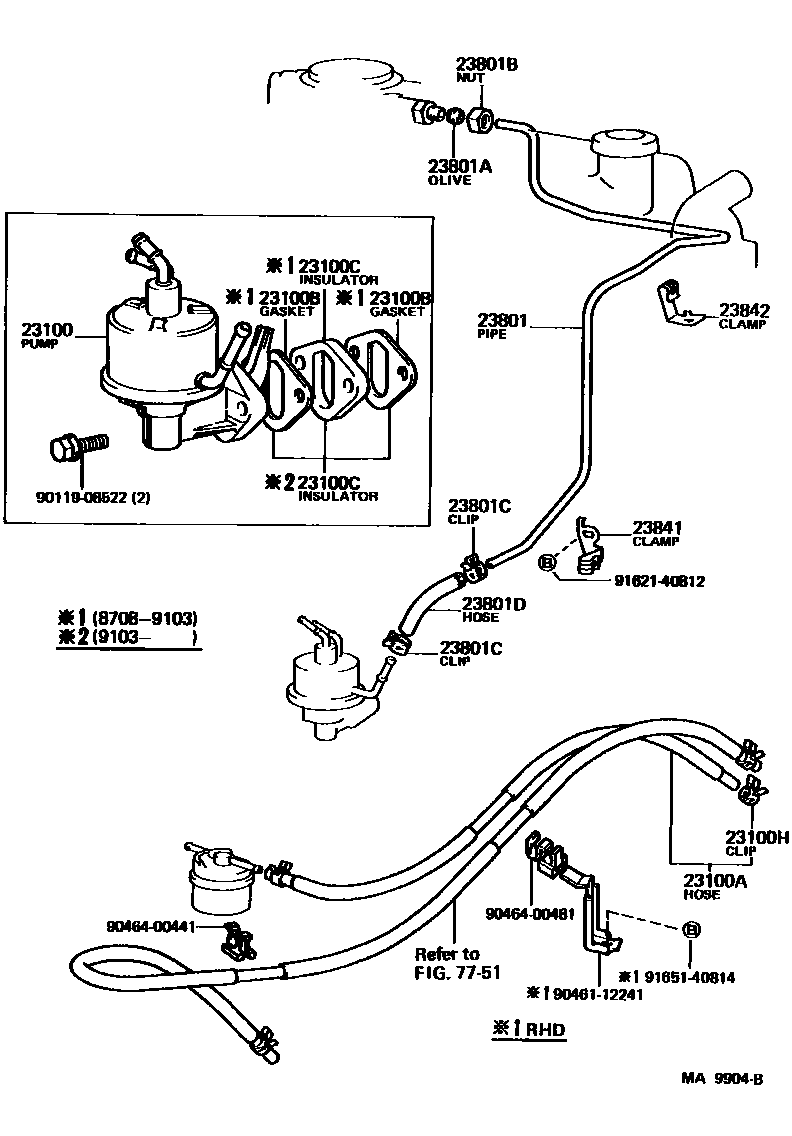

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-61100i3F..FJ62198708-198810

main23100-61101i3F..FJ62198810-199203

23100AHOSE, FUEL

main77260-60101i3F..FJ62..LHD198708-199203

main77260-60120i3F..FJ62..RHD198708-199001

23100BGASKET, FUEL PUMP

main90923-05016×2i3F..FJ62198708-199103

23100CINSULATOR, FUEL PUMP

main90923-06008i3F..FJ62198708-199103

main90923-06010i3F..FJ62199103-199203

23100HCLIP(FOR FUEL HOSE)

main96132-31000×2i3F..FJ62198708-199203

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-61060i3F..FJ62198708-199203

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i3F..FJ62198708-199203

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i3F..FJ62198708-199203

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800×2i3F..FJ62198708-199203

23801DHOSE, FUEL PIPE, NO.1

main95333-08020i3F..FJ62198708-199203

L=200,ID=8

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-61030i3F..FJ62198708-199203

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-61020i3F..FJ62198708-199203

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908522

main90119-08522

9046112241

main90461-12241

9046400441

main90464-00441

9046400481

main90464-00481

9162140812

main91621-40812

9165140814

main91651-40814

19 parts on this diagram · 1 diagram in section
