FUEL FEED PUMP

0001 1 0002 1

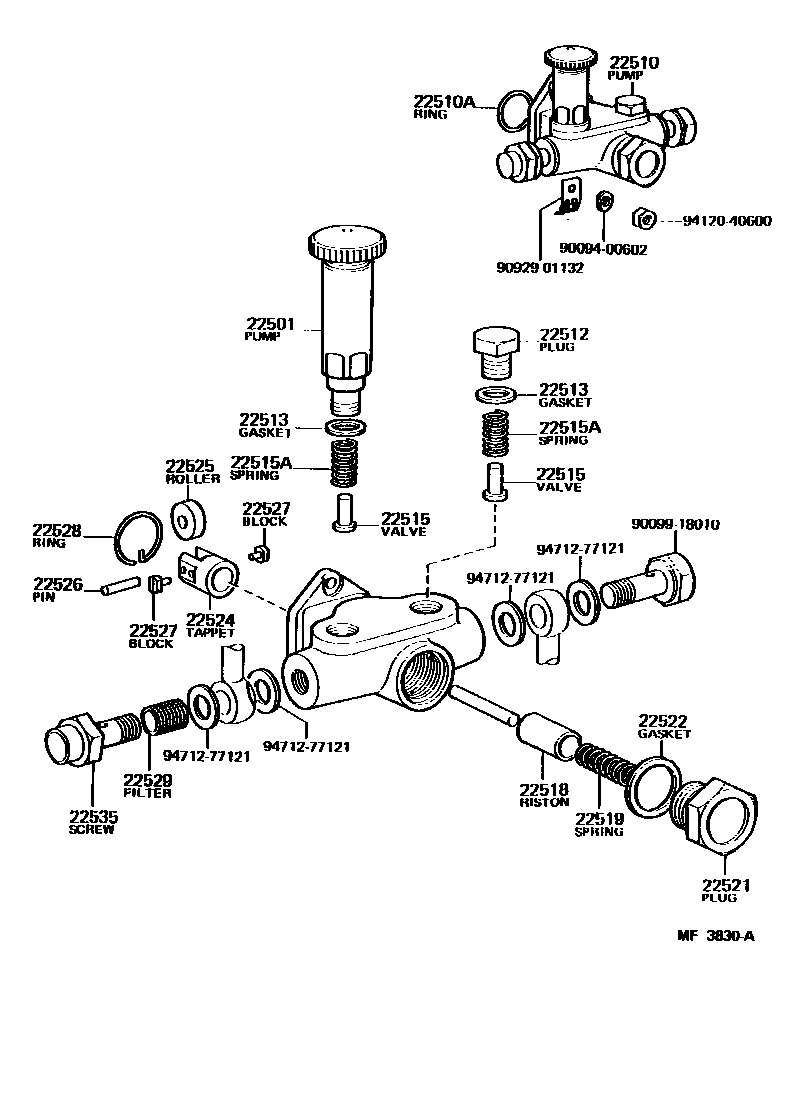

22501PUMP SUB-ASSY, PRIMING

main22501-77021i12HT,2H..HJ6#; 3B..BJ60198708-198808

22510PUMP ASSY, FUEL FEED

main22510-56040i3B..BJ60198708-198808

main22510-77130i12HT,2H..HJ6#198708-199001

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i12HT,2H..HJ6#; 3B..BJ60198708-198808

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020i12HT,2H..HJ6#; 3B..BJ60198708-198808

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i12HT,2H..HJ6#; 3B..BJ60198708-198808

22515VALVE, FEED PUMP CHECK

main22515-77021×2i12HT,2H..HJ6#; 3B..BJ60198708-198808

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2i12HT,2H..HJ6#; 3B..BJ60198708-198808

22518PISTON, FEED PUMP

main22518-56012i12HT,2H..HJ6#; 3B..BJ60198708-198808

GREEN

main22518-77020i12HT,2H..HJ6#; 3B..BJ60198708-198808

BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010×2i3B..BJ60198708-198808

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021×2i3B..BJ60198708-198808

22522GASKET, FEED PUMP PISTON PLUG

main90099-01432i12HT,2H..HJ6#; 3B..BJ60198708-198808

22524TAPPET, FEED PUMP

main22524-77021i12HT,2H..HJ6#; 3B..BJ60198708-198808

22525ROLLER, FEED PUMP TAPPET

main22525-77020i12HT,2H..HJ6#; 3B..BJ60198708-198808

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i12HT,2H..HJ6#; 3B..BJ60198708-198808

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i12HT,2H..HJ6#; 3B..BJ60198708-198808

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i12HT,2H..HJ6#; 3B..BJ60198708-198808

22529FILTER, FUEL PUMP

main22529-67010i12HT,2H..HJ6#; 3B..BJ60198708-198808

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i12HT,2H..HJ6#; 3B..BJ60198708-198808

9009400602

main90094-00602

9009918010

main90099-18010

9092901132

main90929-01132

9412040600

main94120-40600

9471217121

main94712-17121

9471277121

main94712-77121

24 parts on this diagram · 2 diagrams in section
