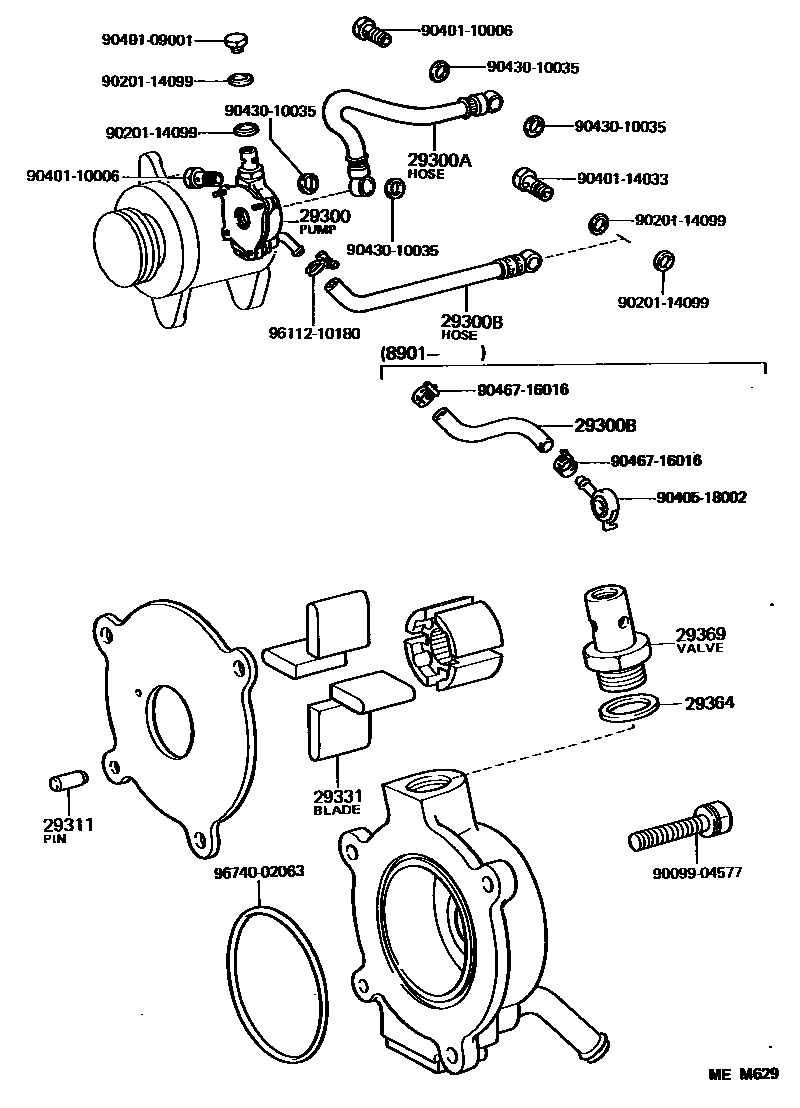

VACUUM PUMP

0001 1 0003 1

29300PUMP ASSY, VACUUM

main29300-54050i12HT,2H..HJ6#198708-199001

main29300-56070i3B..BJ60198708-198808

main29300-58050i3B..BJ60198808-199001

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02070i12HT..HJ61198708-199001

main90923-02072i3B..BJ60198708-198808

main90923-02100i2H..HJ60198708-199001

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-68010i12HT,2H..HJ6#198901-199001

main90923-02073i3B..BJ60198708-198808

main90923-02079i12HT,2H..HJ6#198708-198901

29311PIN, VACUUM PUMP DOWEL, NO.1

main90099-08082×2i12HT..HJ61; 2H..HJ60; 3B..BJ60198808-199001

29331BLADE, VACUUM PUMP, A

main29331-56070×4i12HT,3B,2H..BJ60,HJ6#198708-198808

main29331-58050×4i3B..BJ60198808-199001

29364WASHER, VACUUM PUMP

main29364-66010i12HT,3B,2H..BJ60,HJ6#198708-199001

29369VALVE SUB-ASSY, CHECK

main29369-56070i12HT,3B,2H..BJ60,HJ6#198708-198808

main29369-64030i3B..BJ60198808-199001

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040518002

main90405-18002

9043010035

main90430-10035

9046716016

main90467-16016

9611210180

main96112-10180

9674002063

main96740-02063

17 parts on this diagram · 2 diagrams in section
