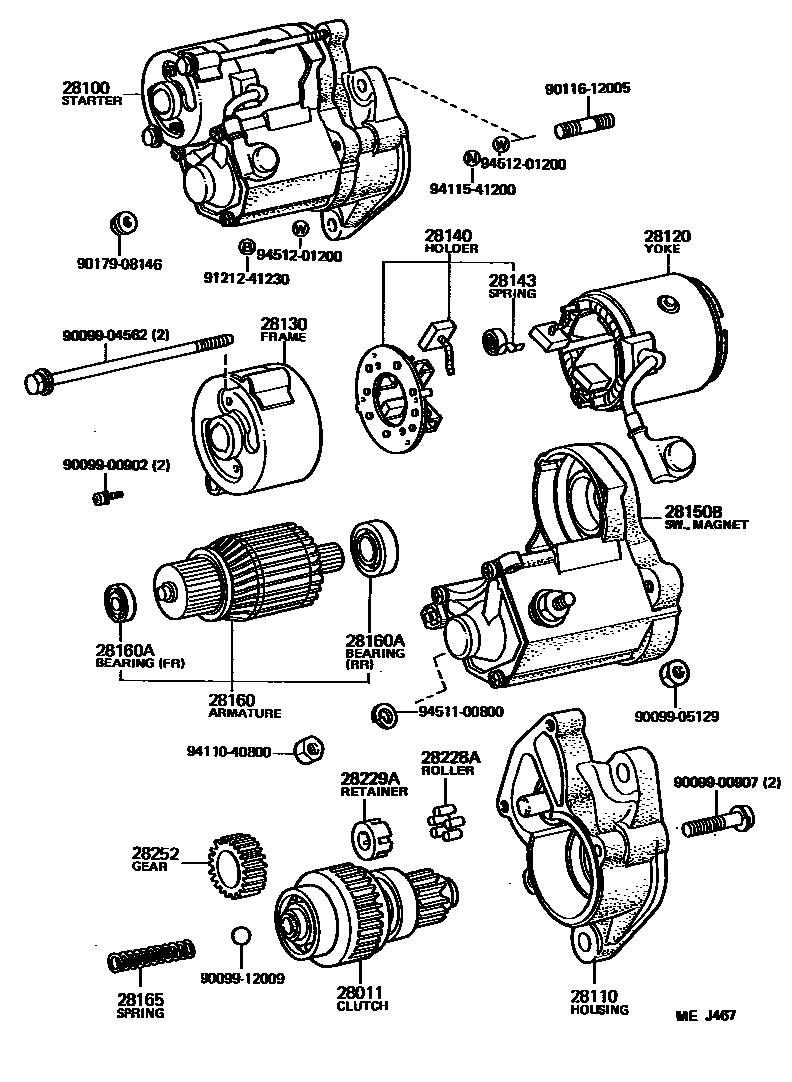

STARTER

0001 112V 1.0KW 0002 112V 2.5KW 0003 112V 2.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i3F..FJ62198708-199203

main28011-54010i12HT,3B,2H..BJ60,HJ6#198708-199001

28100STARTER ASSY

main28100-47081i12HT,2H..HJ6#198708-199001

12V 2.5KW

main28100-56191i3B..BJ60198708-199001

12V 2.5KW

main28100-60070i3F..FJ62198708-199203

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-60070i3F..FJ62198708-199203

main28115-47070i12HT,2H..HJ6#198708-199001

main28115-56180i3B..BJ60198708-199001

28120YOKE ASSY, STARTER

main28120-26071i3F..FJ62198708-199203

main28120-56081i12HT,3B,2H..BJ60,HJ6#198708-199001

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i3F..FJ62198708-199203

main28130-46030i12HT,2H..HJ6#198708-199001

main28130-54010i3B..BJ60198708-199001

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i3F..FJ62198708-199203

main28140-77090i12HT,3B,2H..BJ60,HJ6#198708-199001

28143SPRING, STARTER BRUSH

main90099-17112×4i3F..FJ62198708-199203

28150BSWITCH ASSY, MAGNETIC

main28150-34080i3F..FJ62198708-199203

main28150-47070i12HT,2H..HJ6#198708-199001

main28150-56191i3B..BJ60198708-199001

28160ARMATURE ASSY, STARTER

main28160-26070i3F..FJ62198708-198908

main28160-26071i3F..FJ62198908-199203

main28160-47040i12HT,3B,2H..BJ60,HJ6#198708-199001

28160ABEARING, STARTER ARMATURE

main28253-45020i3F..FJ62198708-199203

FRONT

main90099-10107i12HT,3B,2H..BJ60,HJ6#198708-199001

REAR

main90099-10113i3F..FJ62198708-199203

REAR

main90099-10119i12HT,3B,2H..BJ60,HJ6#198708-199001

FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i3F..FJ62198708-199203

main28165-77090i12HT,3B,2H..BJ60,HJ6#198708-199001

28228AROLLER, STARTER CLUTCH

main28228-26040×5i3F..FJ62198708-199203

main28228-56080×5i12HT,3B,2H..BJ60,HJ6#198708-199001

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i3F..FJ62198708-199203

main28229-56080i12HT,3B,2H..BJ60,HJ6#198708-199001

28252GEAR, STARTER IDLE

main28254-45020i3F..FJ62198708-199203

main28254-77090i12HT,3B,2H..BJ60,HJ6#198708-199001

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011612005

main90116-12005

9017908146

main90179-08146

9121241230

main91212-41230

9411040800

main94110-40800

9411541200

main94115-41200

9451100800

main94511-00800

9451201200

main94512-01200

26 parts on this diagram · 3 diagrams in section
