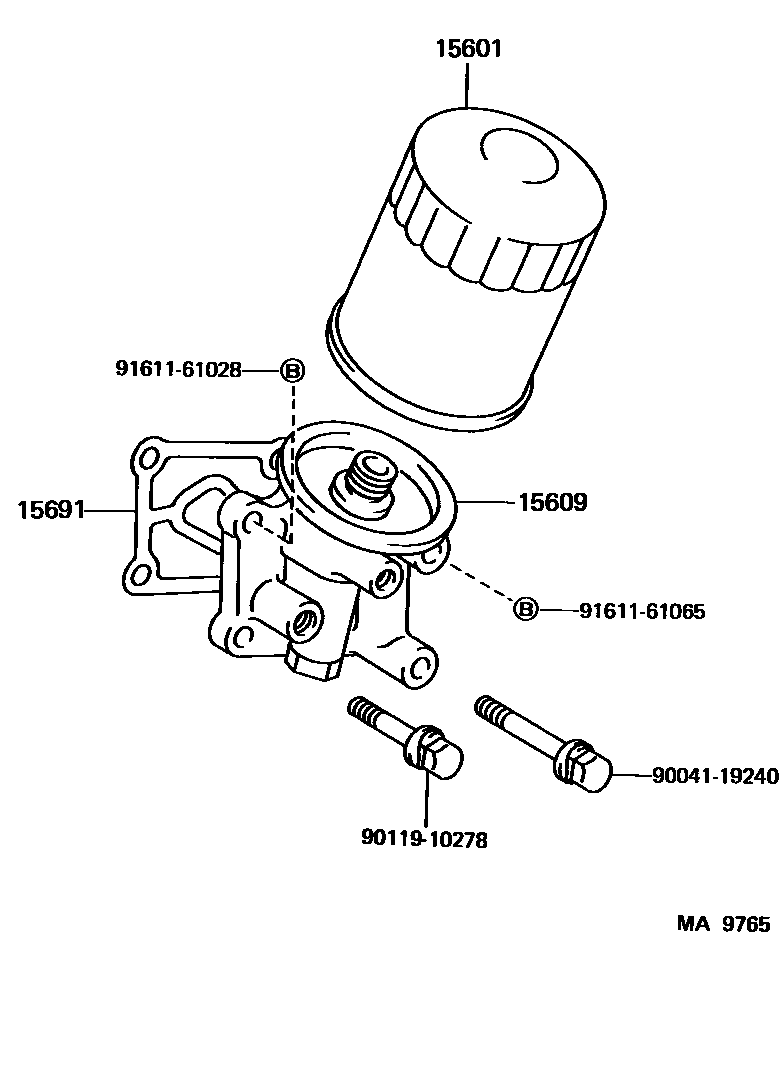

OIL FILTER

0001 1 0002 1 0003 1 0004 1

15601FILTER SUB-ASSY, OIL

main15600-41010i3B..BJ60; 3F..FJ62198708-199203

main15601-68010i12HT,2H..HJ6#198708-199001

15609BRACKET SUB-ASSY, OIL FILTER

main15609-58010i3B..BJ60198708-198808

main15609-58020i3B..BJ60198808-199001

main15609-61012i3F..FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN198708-198808

W(OIL COOLER)

main15609-61020i3F..FJ62198708-199203

main15609-68030i12HT,2H..HJ6#198708-199001

15691GASKET, OIL FILTER

main15691-56030i3B..BJ60198708-198808

main15691-56040i3B..BJ60198808-199001

main15691-60010i3F..FJ62198708-199203

main15691-61010i3F..FJ62199001-199203

W(OIL COOLER) & VENEZUELA SPEC

main15691-68020i12HT,2H..HJ6#198708-199001

9004119240

main90041-19240

9011910278

main90119-10278

9161161028

main91611-61028

9161161065

main91611-61065

7 parts on this diagram · 4 diagrams in section
