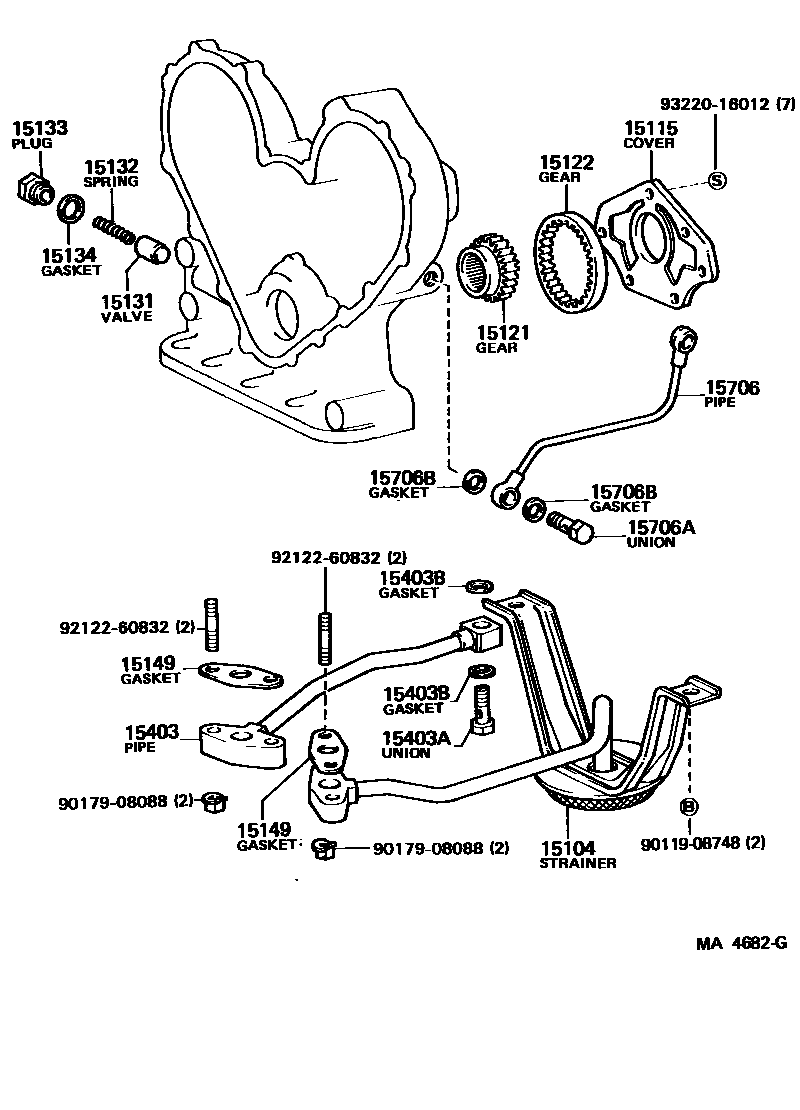

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-56050i3B..BJ60198708-198808

main15104-56060i3B..BJ60198808-198910

main15104-56061i3B..BJ60198910-199001

main15104-68012i2H..HJ60198708-199001

main15104-68020i12HT..HJ61198708-199001

15115COVER, OIL PUMP

main15115-56030i3B..BJ60198708-198808

main15115-56040i3B..BJ60198901-199001

main15115-68020i12HT,2H..HJ6#198708-199001

15121GEAR, OIL PUMP DRIVE

main15121-56030i3B..BJ60198708-198808

main15121-56040i3B..BJ60198901-199001

main15121-61011i3F..FJ62198708-199203

main15121-68020i12HT,2H..HJ6#198708-199001

15122GEAR, OIL PUMP DRIVEN

main15122-56030i3B..BJ60198708-198808

main15122-56040i3B..BJ60198901-199001

main15122-61011i3F..FJ62198708-199203

main15122-68020i12HT,2H..HJ6#198708-199001

15131VALVE, OIL PUMP RELIEF

main15131-22010i12HT,2H..HJ6#198708-199001

main15131-24010i3B..BJ60; 3F..FJ62198708-198808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3F..FJ62198708-199203

main15132-56080i3B..BJ60198901-199001

main15132-76011i12HT,2H..HJ6#; 3B..BJ60198708-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i12HT,2H..HJ6#; 3B..BJ60198901-199001

main15133-24010i3F..FJ62198708-199203

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i12HT,2H..HJ6#; 3B..BJ60198708-198808

15149GASKET, OIL STRAINER FLANGE

main15149-56020i3B..BJ60198808-199001

main15149-68010i12HT,2H..HJ6#198708-199001

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56041i3B..BJ60198708-198808

main15403-56050i3B..BJ60198808-199001

main15403-68010i12HT,2H..HJ6#198708-199001

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002i3B..BJ60198708-198808

main90401-18007i12HT,2H..HJ6#198708-199001

main90401-20009i3B..BJ60198808-199001

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2i12HT,2H..HJ6#; 3B..BJ60198708-198808

main90430-20018×2i3B..BJ60198808-199001

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010i3B..BJ60198708-198808

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010i3B..BJ60198708-198808

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026×2i3B..BJ60198708-198808

9011908748

main90119-08748

9017908088

main90179-08088

9212260832

main92122-60832

9322016012

main93220-16012

19 parts on this diagram · 4 diagrams in section
