MOUNTING

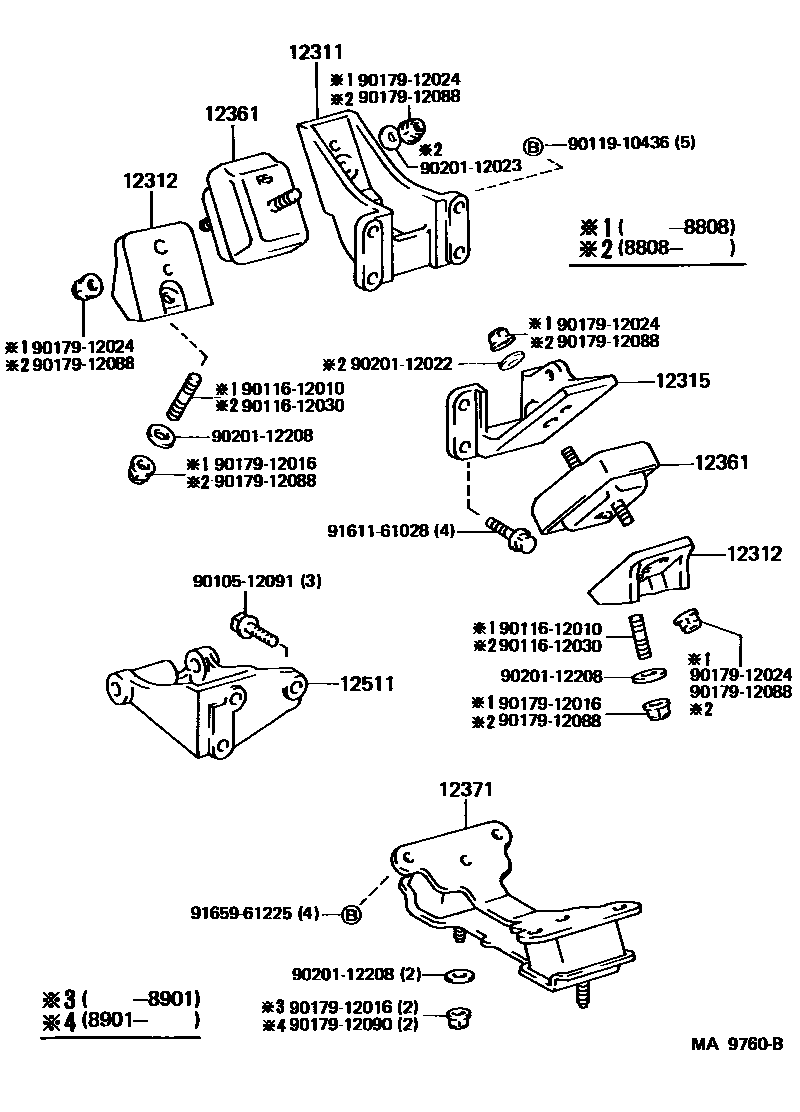

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-68010i198708-199001

main12311-58032i198708-199001

main12311-61071i198708-199203

12312BRACKET, ENGINE MOUNTING, FRONT NO.2

main12312-68010i198708-199001

RH

main12316-68010i198708-199001

LH

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58020i198708-199001

main12315-68040i198708-199001

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58030×2i198708-198808

main12361-58031×2i198808-199001

main12361-61030×2i198708-198809

main12361-61031×2i198809-199203

main12361-68051×2i198708-199001

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58020i198708-198808

main12371-58021i198808-199001

main12371-61030i198708-198809

main12371-61031i198809-199203

main12371-61040i198708-198809

main12371-61041i198809-199203

main12371-68040i198708-198809

main12371-68041i198809-199001

main12371-68050i198708-198809

main12371-68051i198809-199001

12511BRACKET, ALTERNATOR, NO.1

main12501-56010i198808-199001

main12501-58010i198808-199001

W(POWER STEERING)

main12511-56040i198708-198808

main12511-61030i198708-198909

main12511-61031i198909-199203

main12511-68011i198708-199001

main12511-68030i198808-199001

AIR CONDITIONER(DUAL,HIGH ROOF); AIR CONDITIONER(DUAL,LOW ROOF)

9010512091

main90105-12091

9011612010

main90116-12010

9011612030

main90116-12030

9011910436

main90119-10436

9017912016

main90179-12016

9017912024

main90179-12024

9017912088

main90179-12088

9017912090

main90179-12090

9020112022

main90201-12022

9020112023

main90201-12023

9020112208

main90201-12208

9161161028

main91611-61028

9165961225

main91659-61225

19 parts on this diagram · 3 diagrams in section
