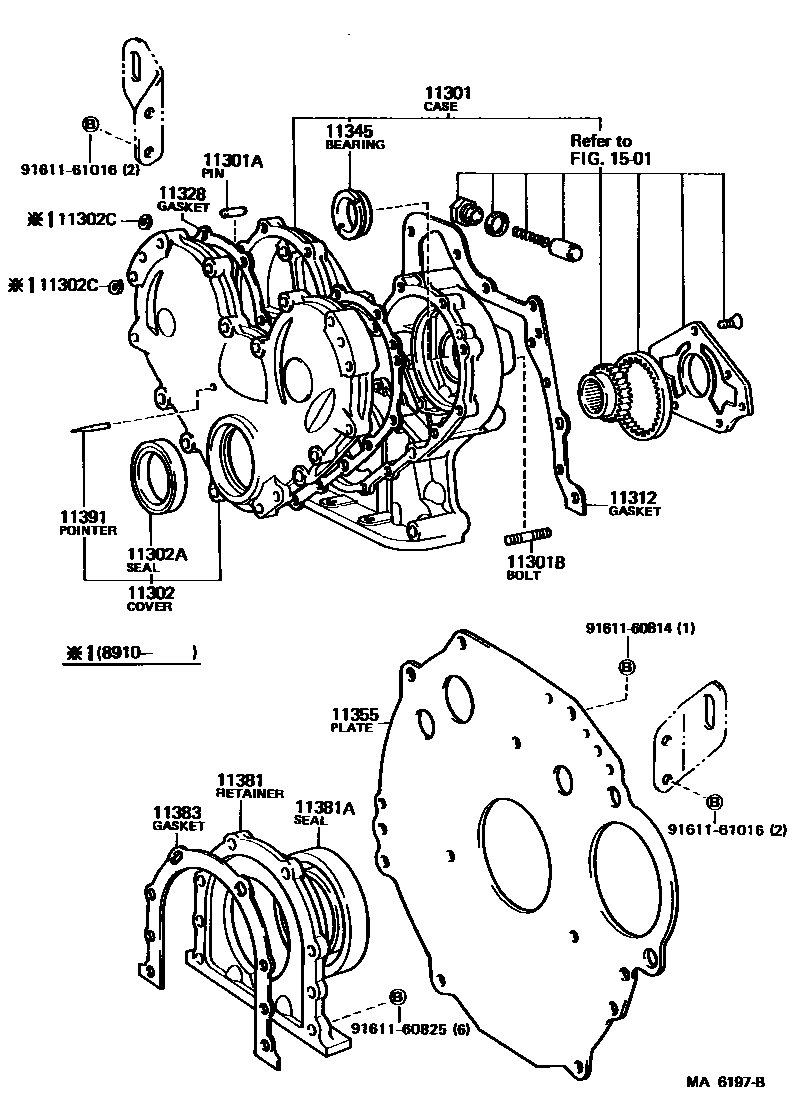

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56031i3B..BJ60198708-198808

main11301-56080i3B..BJ60198808-198901

main11301-68020i12HT,2H..HJ6#198708-199001

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2i12HT,2H..HJ6#; 3B..BJ60198708-199005

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169×2i3B..BJ60198808-198901

main90116-10048×3i3B..BJ60198708-198808

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56030i3B..BJ60198708-198808

main11302-56070i3B..BJ60198808-198906

main11302-56071i3B..BJ60198906-199001

main11302-61031i3F..FJ62198708-199203

main11321-68012i2H..HJ60..GEN,ME198708-199001

main11321-68020i2H..HJ60..HRF; 2H..HJ60..LHD..SRF..GX;2H..HJ60..(STD,VX)..GEN; 2H..HJ60..RHD..GX..GEN198708-198808

AIR CONDITIONER(DUAL,HIGH ROOF); AIR CONDITIONER(DUAL,LOW ROOF)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45008i3F..FJ62198708-199203

main90311-50006i12HT,2H..HJ6#198708-199001

main90311-50007i3B..BJ60198708-198808

main90311-50013i3B..BJ60198808-199001

11302CSPACER(FOR TIMING GEAR COVER)

main90560-09038×2i3B..BJ60198910-199001

11312GASKET, FRONT END PLATE

main11312-56031i3B..BJ60198708-198808

main11312-56040i3B..BJ60198808-199001

main11312-61020i3F..FJ62198708-199001

main11312-61021i3F..FJ62199001-199203

main11312-68010i12HT,2H..HJ6#198708-199001

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56030i3B..BJ60198708-198808

main11328-56050i3B..BJ60198808-199001

main11328-61010i3F..FJ62198708-199203

main11328-68020i12HT,2H..HJ6#198708-199001

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010×6i3B..BJ60198901-199001

11355PLATE, REAR END

main11355-56053i3B..BJ60198708-198808

main11355-56060i3B..BJ60198808-198910

main11355-56061i3B..BJ60198910-199001

main11355-68011i12HT,2H..HJ6#..MTM198708-199001

main11355-68020i12HT..HJ61..4FC198708-199001

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56031i3B..BJ60198708-198808

main11381-56032i3B..BJ60198808-198901

main11381-56033i3B..BJ60198910-199001

main11381-68010i12HT,2H..HJ6#198708-199001

11381ASEAL, ENGINE REAR OIL

main90311-95002i12HT,2H..HJ6#198708-199001

main90311-95003i3B..BJ60198708-198808

main90311-95005i3B..BJ60198808-198901

main90311-95008×2i3B..BJ60198910-199001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-47010i12HT,2H..HJ6#198708-199001

main11383-56031i3B..BJ60198708-198808

main11383-56040i3B..BJ60198808-198901

11391POINTER, TIMING

main11391-56020i3B..BJ60198708-198808

main11391-60010i3F..FJ62..MTM198708-199203

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160814

main91611-60814

9161160825

main91611-60825

9161161016

main91611-61016

18 parts on this diagram · 4 diagrams in section
