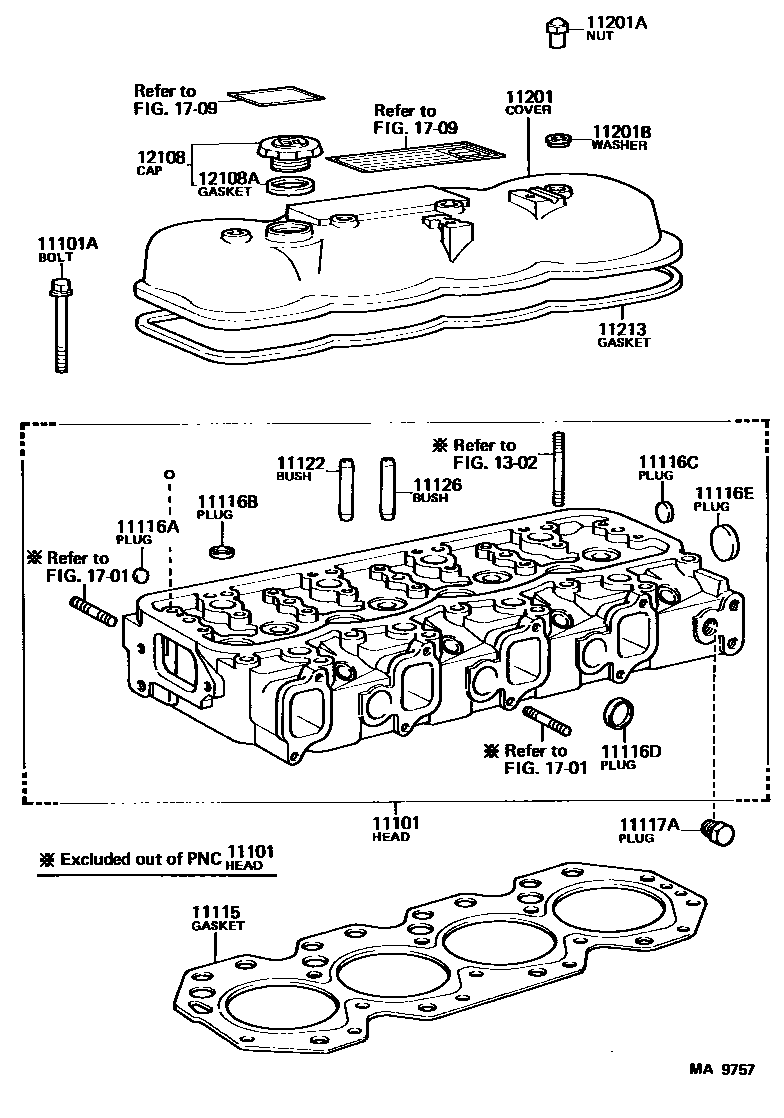

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
W/O(EEC)
LOW OCTANE SPEC
11101ABOLT(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
T=1.55
T=1.50
T=1.40
T=1.40
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11116EPLUG, TIGHT, NO.5
11117APLUG, W/HEAD TAPER SCREW, NO.1
FRONT HEATER; FRONT HEATER & REAR HEATER OR FRONT HEATER
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD
O/S 0.05
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1302CAMSHAFT & VALVE
1701MANIFOLD
1709CAUTION PLATE & NAME PLATE (ENGINE)
20 parts on this diagram · 5 diagrams in section
