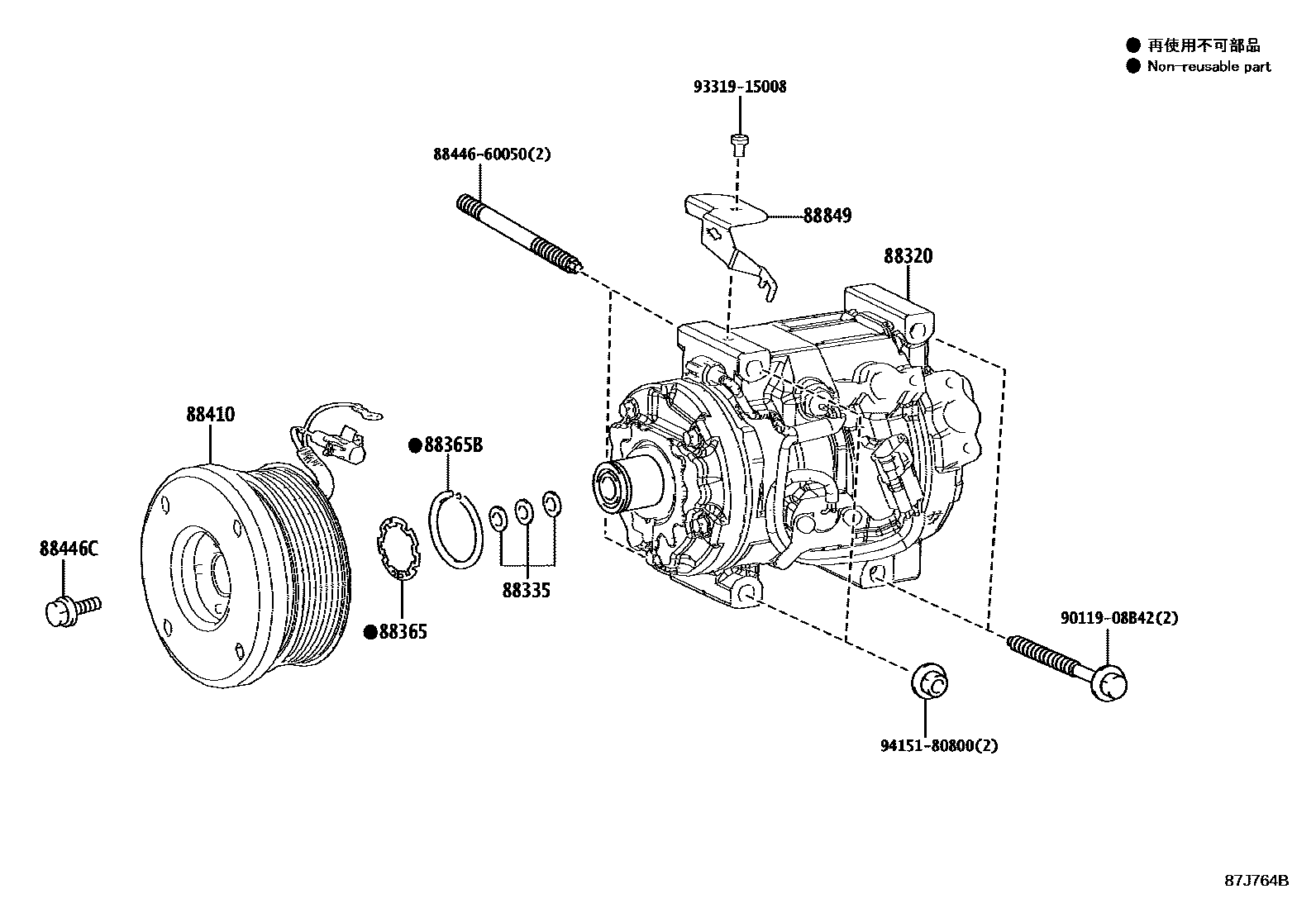

HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
main88320-60C10supersedes 88320-60C20iVJA300..5S..(S,Z);VJA300..7S..V..EUR; VJA300..5S..S;VJA300..(V,Z)..EUR; VJA300..7S..V..EUR; VJA300..GEN;VJA300..A..EUR202104-202411
ARMENIA SPEC; AZER, GEORGIA SPEC; BELARUS SPEC; ECUADOR SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; TAJIKISTAN, TURKMENISTAN SPEC; UKRAINE SPEC; UZBEKISTAN SPEC; VIETNAM SPEC
main88320-60C50supersedes 88320-60C60iFJA300..(S,V,Z)..EUR; FJA300..5S..ARL; FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..(A,G)..EUR202411
ARMENIA SPEC; AZERBAIJAN, GEORGEA SPEC; BELARUS SPEC; INDIA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; MOLDOVA SPEC; TAJIKISTAN, TURKMENISTAN SPEC; UKRAINE SPEC; UZBEKISTAN SPEC
88335GASKET KIT, OVERHAUL
88365RING, SNAP
main90099-07065iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
88365BRING, SNAP, NO.2
88410CLUTCH ASSY, MAGNET
88446CBOLT, MAGNET CLUTCH SETTING
main90099-04349iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
88849BRACKET, COOLER COMPRESSOR, NO.2
main88849-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
8844660050BOLT, IDLE PULLEY
main88446-60050
9011908B42
main90119-08B42
9331915008
main93319-15008
9415180800
main94151-80800
11 parts on this diagram · 3 diagrams in section
