HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

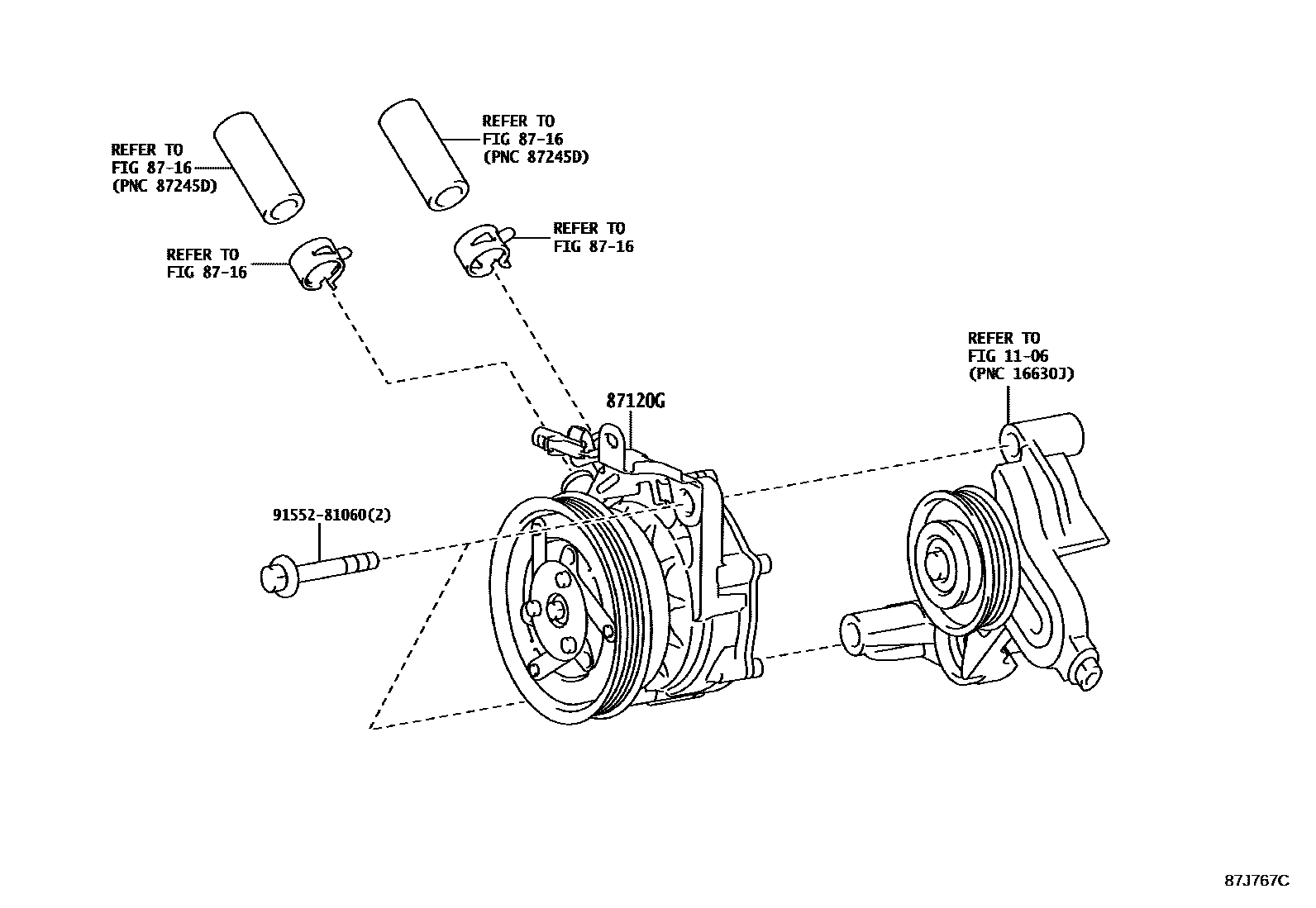

87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH

main87120-60020iFJA300..(S,Z)..GCC; FJA300..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9155281060

main91552-81060

4 parts on this diagram · 1 diagram in section
