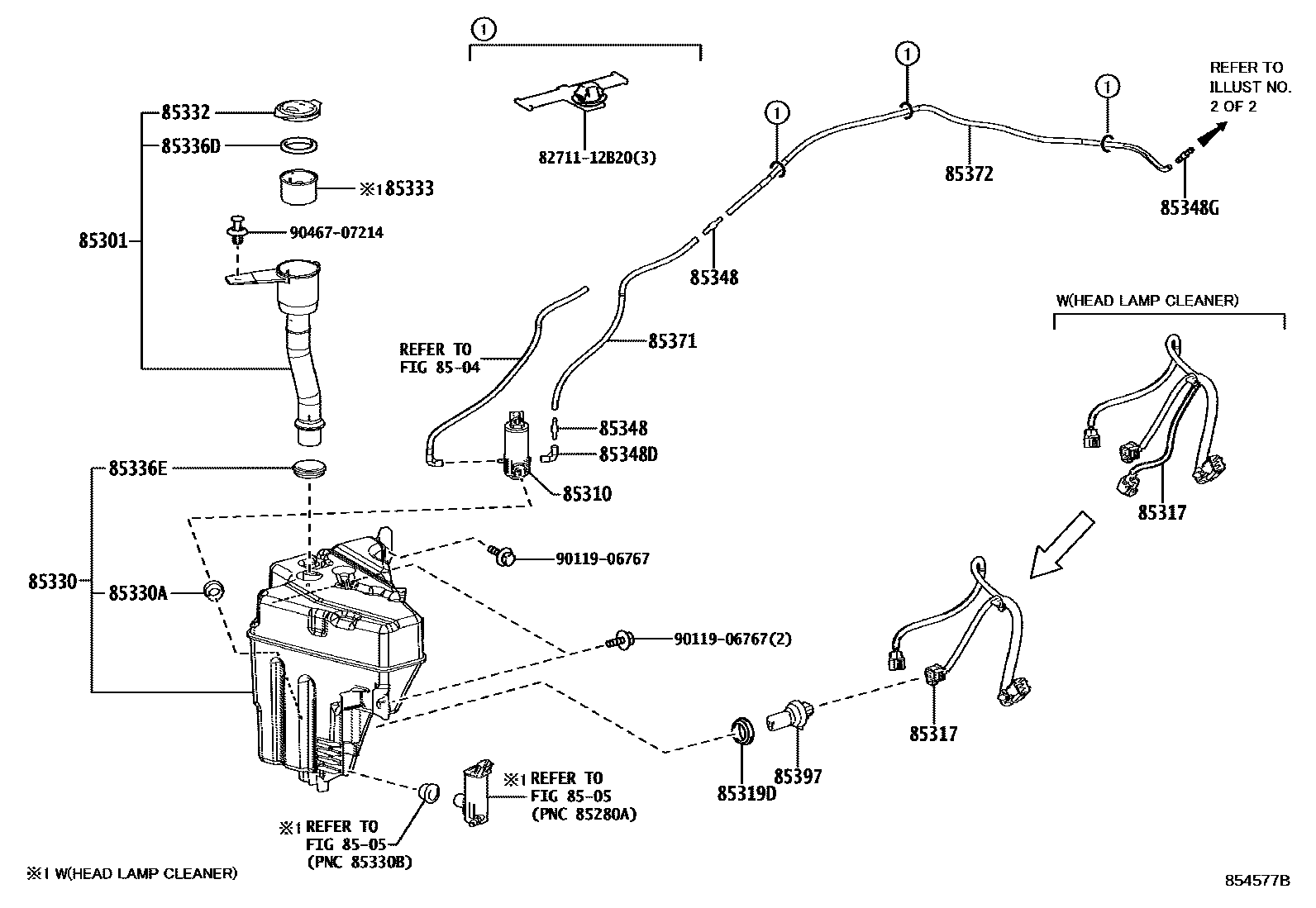

WINDSHIELD WASHER
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
main85301-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-47100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
85317WIRING ASSY, WASHER
main82374-60050iFJA300..LHD..A;GRJ300,VJA300..A;FJA300..RHD..(A,G); VJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
HEADLAMP CLEANER-WITH
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HEADLAMP CLEANER-WITH
main85355-60331iFJA300..RHD..A..GEN;FJA300,GRJ300,VJA300..A..(EUR,GCC); VJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202411
HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85332CAP, WINDSHIELD WASHER JAR
main85316-60470iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
85333FILTER, WINDSHIELD WASHER JAR
main85312-60050iFJA300..LHD..A;GRJ300,VJA300..A;FJA300..RHD..(A,G); VJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
HEADLAMP CLEANER-WITH
85336DPACKING, WINDSHIELD WASHER JAR
main85336-42320iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075iFJA300..RHD..A..GEN;FJA300,GRJ300,VJA300..A..(EUR,GCC); VJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=1100(*H,L=340); L=1100(*H,L=340),HEADLAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080iFJA300,VJA300..A..EUR; GRJ300..A; VJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..(S,V,Z)..EUR; VJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=1450(*H,L=850); L=1450(*H,L=850),COLD AREA SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE)&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL); L=1450(*H,L=850),WINDSHIELD DEICER-WITH(FOR WIPER); L=1450(*H,L=850),WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT; L=1450(*H,L=850),WITHOUT(COLD AREA SPEC)&WINDSHIELD GLASS-GREEN(WITH TOP SHADE)&WINDSHIELD DEICER-WITHOUT
85397SWITCH ASSY,LEVEL WARNING
8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B20
9011906767
main90119-06767
9046707214
main90467-07214
21 parts on this diagram · 3 diagrams in section
