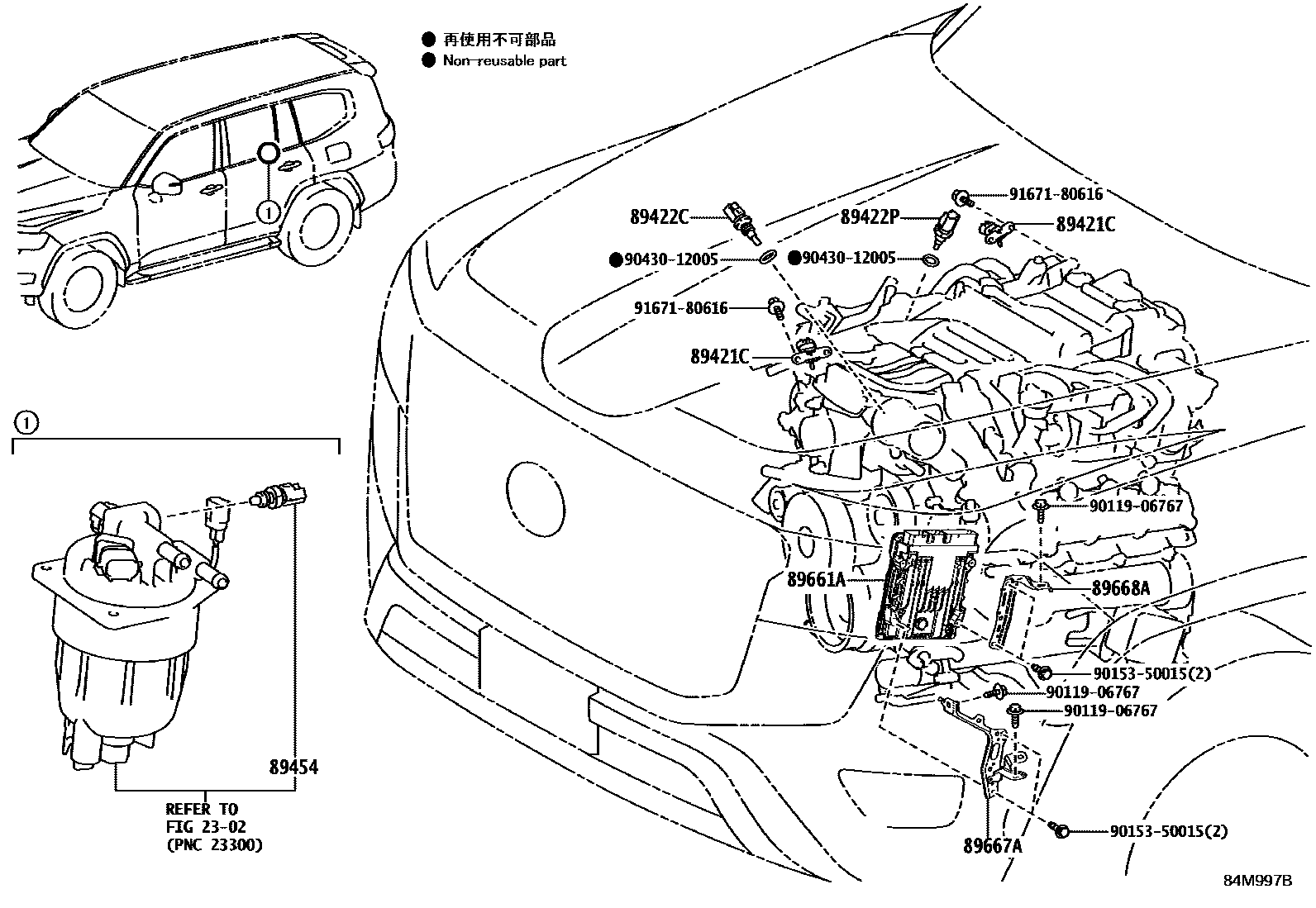

ELECTRONIC CONTROLED DIESEL (ECD)
2302FUEL FILTER
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89422PSENSOR, WATER TEMPERATURE
89454SENSOR, FUEL TEMPERATURE
main89454-20010iFJA300..(A,V,Z)..GCC; FJA300..A..GCC;FJA300..RHD..A..GEN;FJA300..LHD..V..(GCC,GEN); FJA300..G..GEN;FJA300..ARL,EUR;FJA300..7S..(G,S)..GCC;FJA300..5S..(G,S)..(GCC,GEN); FJA300..LHD..V..GEN; FJA300..LHD..V..GEN;FJA300..RHD..A..GEN; FJA300..RHD..V..GEN;FJA300..LHD..A..GEN;FJA300..7S..(S,Z)..GEN; FJA300..Z..GCC202411
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); AZERBAIJAN, GEORGEA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR); EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); FUEL HEATER-WITH; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); TUNISIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS & EGR); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)
89661ACOMPUTER, ENGINE CONTROL
main89661-6A590iFJA300..(A,S,V,Z)..EUR; FJA300..5S..GCC; FJA300..5S..S..GEN;FJA300..7S..G..GCC;FJA300..7S..(A,S,V,Z)..(GCC,GEN)202411
DENSO; DENSO,EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); DENSO,EXHAUST EMISSION CONTROL-WITHOUT(ON BOARD DIAGNOSIS & EGR)
main89661-6A600iFJA300..(A,V,Z)..GCC; FJA300..(S,Z)..GCC; FJA300..7S..(G,S)..GCC; FJA300..7S..G..GCC; FJA300..ARL;FJA300..G..GEN;FJA300..5S..GCC;FJA300..(A,S,V,Z)..EUR; FJA300..RHD..(S,Z)..GEN202411
DENSO; DENSO,AZERBAIJAN, GEORGEA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680; DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680&FRONT BUMPER-AERO(BLACK); DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
main89661-6A610iFJA300..(A,S,V,Z)..EUR; FJA300..5S..ARL; FJA300..G..EUR; FJA300..G..GEN; FJA300..LHD..7S..S..GEN; FJA300..RHD..(S,Z)..GEN; FJA300..RHD..V..GEN202411
DENSO; DENSO,BHUTAN SPEC&FUEL HEATER-WITH; DENSO,COLOMBIA SPEC; DENSO,EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH; DENSO,EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS); DENSO,EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH; DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS)
DENSO,*614
DENSO,*614
main89666-60S30iFJA300..7S..GCC; FJA300..ARL;FJA300..G..GEN;FJA300..5S..GCC; FJA300..LHD..7S..S..GEN; FJA300..RHD..(S,Z)..GEN202107-202402
DENSO,*614; DENSO,ARGENTINA SPEC&FUEL HEATER-WITH,*614; DENSO,FIJI SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH,*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,QATAR, BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS& EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614
main89666-60S31iFJA300..7S..GCC; FJA300..ARL;FJA300..G..GEN;FJA300..5S..GCC; FJA300..LHD..7S..S..GEN; FJA300..LHD..V..GEN; FJA300..RHD..(S,Z)..GEN202403-202411
DENSO,*614; DENSO,ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,ARGENTINA SPEC&FUEL HEATER-WITH,*614; DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,FIJI SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH,*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,QATAR, BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS& EGR),*614; DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS &EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614
DENSO,FUEL HEATER-WITH,*614; DENSO,TAJIKISTAN, TURKMENISTAN SPEC,*614
DENSO,BAHRAIN SPEC,*614; DENSO,MONGOLIA SPEC,*614; DENSO,TAJIKISTAN, TURKMENISTAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT(ON BOARD DIAGNOSIS & EGR),*614
main89661-6A410iFJA300..(G,S,V,Z)..ARL; FJA300..LHD..7S..(S,Z)..GEN; FJA300..LHD..V..GEN202310-202403
DENSO,COLOMBIA SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614; DENSO,COLOMBIA SPEC&FUEL HEATER-WITH,*614; DENSO,NEW ZEALAND SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614
main89661-6A411iFJA300..(G,S,V,Z)..ARL; FJA300..LHD..7S..(S,Z)..GEN; FJA300..LHD..V..GEN202404-202411
DENSO,COLOMBIA SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614; DENSO,COLOMBIA SPEC&FUEL HEATER-WITH,*614; DENSO,NEW ZEALAND SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614
DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),*614
DENSO,*614; DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),*614
DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS& EGR),*614; DENSO,TUNISIA SPEC&FUEL HEATER-WITH,*614
main89666-60M21iFJA300..(A,V)..EUR;FJA300..(S,Z)..(EUR,GCC); FJA300..LHD..7S..S..GEN; FJA300..LHD..V..GEN202404-202411
DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS& EGR),*614; DENSO,TUNISIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,TUNISIA SPEC&FUEL HEATER-WITH,*614
main89666-60M30iFJA300..7S..GCC; FJA300..LHD..7S..(S,V)..GEN; FJA300..LHD..V..GEN; FJA300..RHD..A..GEN202107-202310
DENSO,CAMBODIA SPEC&FUEL HEATER-WITH,*614; DENSO,KENYA SPEC&FUEL HEATER-WITH,*614; DENSO,PHILIPPINES SPEC&FUEL HEATER-WITH,*614; DENSO,QATAR, BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,SRI LANKA SPEC&FUEL HEATER-WITH,*614
main89666-60M31iFJA300..5S..GCC;FJA300..RHD..A..GEN;FJA300..LHD..V..GEN; FJA300..7S..GCC; FJA300..LHD..7S..(S,Z)..GEN; FJA300..LHD..7S..Z..GEN; FJA300..RHD..(S,V,Z)..GEN; FJA300..RHD..(V,Z)..GEN202403-202411
DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,CAMBODIA SPEC&FUEL HEATER-WITH,*614; DENSO,COSTA RICA SPEC&FUEL HEATER-WITH,*614; DENSO,EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUELHEATER-WITH,*614; DENSO,KENYA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL HEATER-WITH,*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,PHILIPPINES SPEC&FUEL HEATER-WITH,*614; DENSO,SRI LANKA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUELHEATER-WITH,*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614
main89666-60M40iFJA300..A..GCC; FJA300..LHD..V..GEN; FJA300..RHD..A..GEN; FJA300..V..GCC202107-202310
DENSO,BRUNEI SPEC&FUEL HEATER-WITH,*614; DENSO,GHANA SPEC&FUEL HEATER-WITH,*614; DENSO,SOUTH AFRICA SPEC&FUEL HEATER-WITH,*614; DENSO,YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*MTS),*614; DENSO,YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO),*614; DENSO,YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR),*614
main89666-60M41iFJA300..7S..(G,S,Z)..GCC; FJA300..A..GCC;FJA300..RHD..A..GEN;FJA300..LHD..V..(GCC,GEN); FJA300..LHD..7S..(A,S)..GEN; FJA300..RHD..(S,V,Z)..GEN; FJA300..RHD..(V,Z)..GEN; FJA300..RHD..V..GEN202403-202411
DENSO,BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&FUEL HEATER-WITH,*614; DENSO,EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR),*614; DENSO,GHANA SPEC&FUEL HEATER-WITH,*614; DENSO,INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&FUELHEATER-WITH,*614; DENSO,NEPAL SPEC&EXHAUST EMISSION CONTROL-EURO 3, WITHOUT(OBD), WITH(EGR)&FUEL HEATER-WITH,*614; DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&FUEL HEATER-WITH,*614; DENSO,YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR),*614
DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC&FRONT BUMPER-AERO(BLACK),*614; DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC,*614
DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC&FRONT BUMPER-AERO(BLACK),*614; DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC,*614
DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS),*614
DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS),*614
DENSO,COSTA RICA SPEC&FUEL HEATER-WITH,*614
DENSO,BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL HEATER-WITH,*614; DENSO,COSTA RICA SPEC,*614
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906767
main90119-06767
9015350015
main90153-50015
9043012005
main90430-12005
9167180616
main91671-80616
12 parts on this diagram · 1 diagram in section
