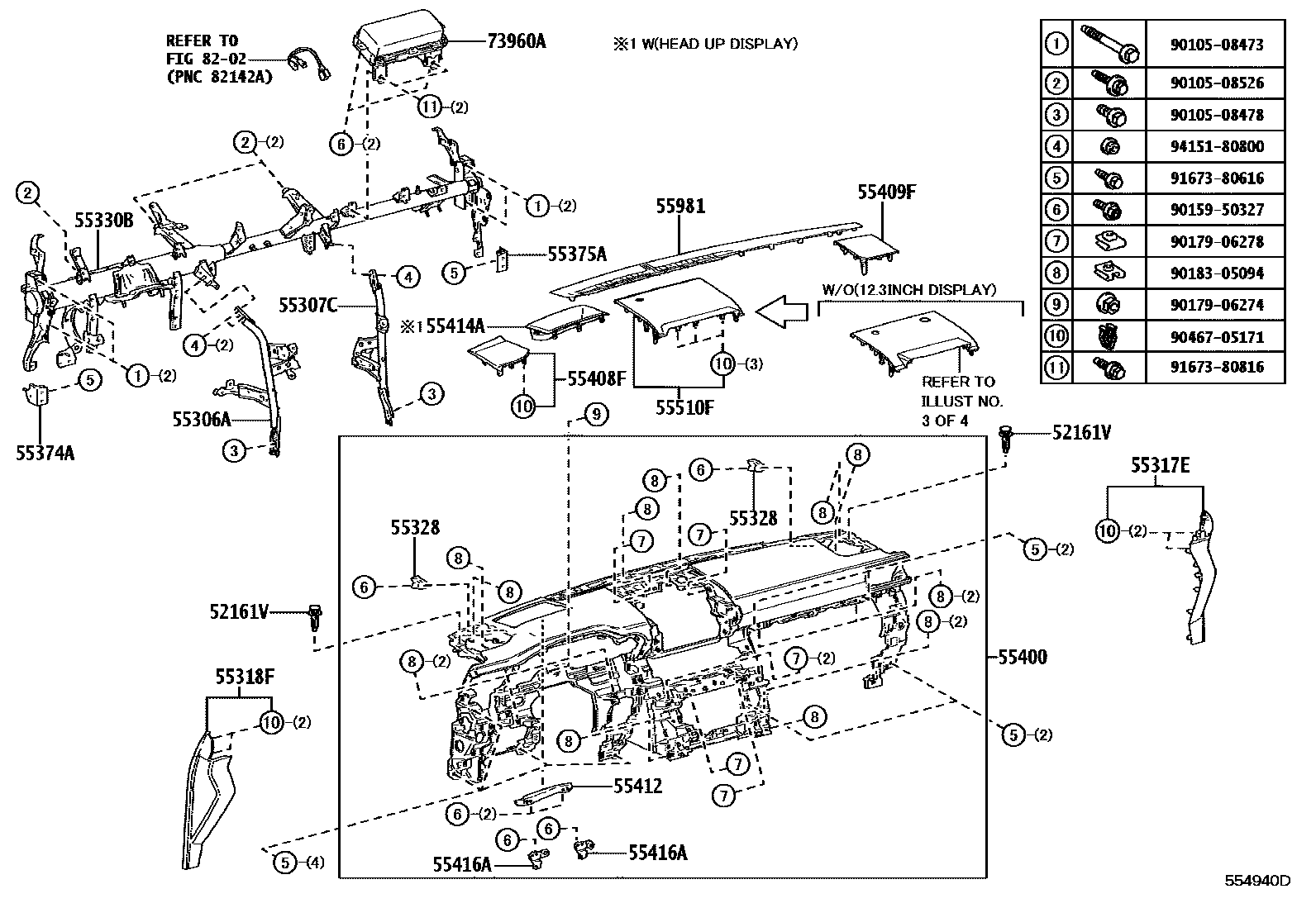

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
main52161-16010×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-60140iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-60090-C0iFJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300..Z..EUR;VJA300..LHD..Z;FJA300..LHD..7S..(S,Z);FJA300,VJA300..LHD..5S..S;VJA300..LHD..S..(GCC,GEN)202411
BLACK,TRIM2#; BLACK,TRIM2#,3#
main55317-60090-C1iVJA300..LHD..(A,G,V,Z);FJA300..5S..(A,G,V,Z)..(EUR,GCC);FJA300,GRJ300..LHD..7S..(A,G,V,Z)202411
BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM4#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM2#,3#
BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM4#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-28130×2iFJA300..S..GCC;VJA300..LHD..S..(GCC,GEN);FJA300,VJA300..5S..(S,V)..EUR;VJA300..LHD..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN); VJA300..RHD;FJA300..5S..S..GEN;FJA300..RHD..Z..GEN;FJA300..RHD..(A,G,S,V);FJA300,VJA300..Z..(ARL,EUR,GCC)202411
HEAD-UP DISPLAY-WITH
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
main55374-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
main55375-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
55400PAD ASSY, INSTRUMENT PANEL SAFETY
main55400-60090-C0supersedes 55400-60100-C0iFJA300,VJA300..LHD..7S..Z..GEN; FJA300,VJA300..LHD..V..(EUR,GEN); FJA300,VJA300..Z..(EUR,GCC)202104-202411
BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main55400-60240-C0supersedes 55400-60250-C0iFJA300,VJA300..LHD..7S..Z..GEN; FJA300,VJA300..LHD..V..(EUR,GEN); FJA300,VJA300..Z..(EUR,GCC); FJA300..5S..S..GEN; VJA300..5S..S;FJA300..S..(EUR,GCC);FJA300..LHD..7S..S..GEN;VJA300..LHD..S..(GCC,GEN)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55400-60250-C0iFJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..LHD..7S..Z..GEN; VJA300..5S..S;FJA300..S..(EUR,GCC);FJA300..LHD..7S..S..GEN;VJA300..LHD..S..(GCC,GEN)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main55400-60260-C0supersedes 55400-60270-C0iFJA300,VJA300..RHD..S..GEN; FJA300,VJA300..RHD..Z..GEN; FJA300..S..ARL; FJA300..V..ARL; FJA300..Z..ARL202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55400-60270-C0iFJA300,VJA300..RHD..(A,G,V); FJA300,VJA300..RHD..S..GEN; FJA300,VJA300..RHD..Z..GEN202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4#; AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4#; BLACK,TRIM2#,4#
main55408-60290-C0iFJA300,VJA300..RHD..Z..GEN; FJA300..RHD..(A,G);VJA300..RHD..(A,V);FJA300..RHD..V..GEN202104-202411
AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main55408-60310-C0supersedes 55408-60270-C0iFJA300,GRJ300,VJA300..LHD..V; FJA300,VJA300..A..GCC; FJA300..Z..EUR;VJA300..LHD..Z;FJA300..LHD..7S..Z; VJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN)202411
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER,BLACK,TRIM2#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main55408-60320-C0supersedes 55408-60290-C0iFJA300,VJA300..RHD..S; FJA300,VJA300..RHD..V; FJA300,VJA300..RHD..Z; FJA300..G..ARL202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; INDIA SPEC,BLACK,TRIM2#,4#
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,4#
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4#; AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4#; BLACK,TRIM2#,4#
main55409-60160-C0iFJA300,VJA300..RHD..Z..GEN; FJA300..RHD..(A,G);VJA300..RHD..(A,V);FJA300..RHD..V..GEN202104-202411
AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main55409-60180-C0supersedes 55409-60140-C0iFJA300,GRJ300,VJA300..LHD..V; FJA300,VJA300..A..GCC; FJA300..Z..EUR;VJA300..LHD..Z;FJA300..LHD..7S..Z; VJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN)202411
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER,BLACK,TRIM2#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,4#
main55409-60170-C0supersedes 55409-60190-C0iFJA300,VJA300..RHD..V; FJA300,VJA300..RHD..Z..GEN202104-202411
AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2#,4#
55412PANEL, INSTRUMENT CLUSTER FINISH, END
main55414-60220iFJA300,VJA300..Z..(EUR,GCC); FJA300..S..GCC;VJA300..LHD..S..(GCC,GEN);FJA300,VJA300..LHD..5S..(S,V);VJA300..LHD..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202104-202411
HEAD-UP DISPLAY-WITH
55414APANEL, INSTRUMENT CLUSTER FINISH, END
main55414-60200-C0iFJA300,VJA300..LHD..7S..Z..GEN; FJA300,VJA300..LHD..V..(EUR,GEN); FJA300,VJA300..Z..(EUR,GCC); FJA300..5S..S..GEN; VJA300..5S..S;FJA300..S..(EUR,GCC);FJA300..LHD..7S..S..GEN;VJA300..LHD..S..(GCC,GEN)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55414-60210-C0iFJA300,VJA300..RHD..S..GEN; FJA300,VJA300..RHD..Z..GEN; FJA300..S..ARL; FJA300..V..ARL; FJA300..Z..ARL202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,3#,4#; HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
55416ARETAINER, METER HOOD, NO.1
main55416-60120×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
main55416-60210iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411
LH
main55416-60220iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411
RH
55510FCOVER ASSY, SPEAKER OPENING, NO.1
main55510-60150-C0iFJA300,VJA300..S..(ARL,GCC,GEN); FJA300,VJA300..S..(GCC,GEN); FJA300,VJA300..S..GCC202107-202411
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3#; AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3#; BLACK,TRIM2#,3#
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,3#,4#; AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,BLACK,TRIM2#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-60070iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-60410iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
8202WIRING & CLAMP
9010508473
main90105-08473
9010508478
main90105-08478
9010508526
main90105-08526
9015950327
main90159-50327
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9167380616
main91673-80616
9167380816
main91673-80816
9415180800
main94151-80800
30 parts on this diagram · 8 diagrams in section
