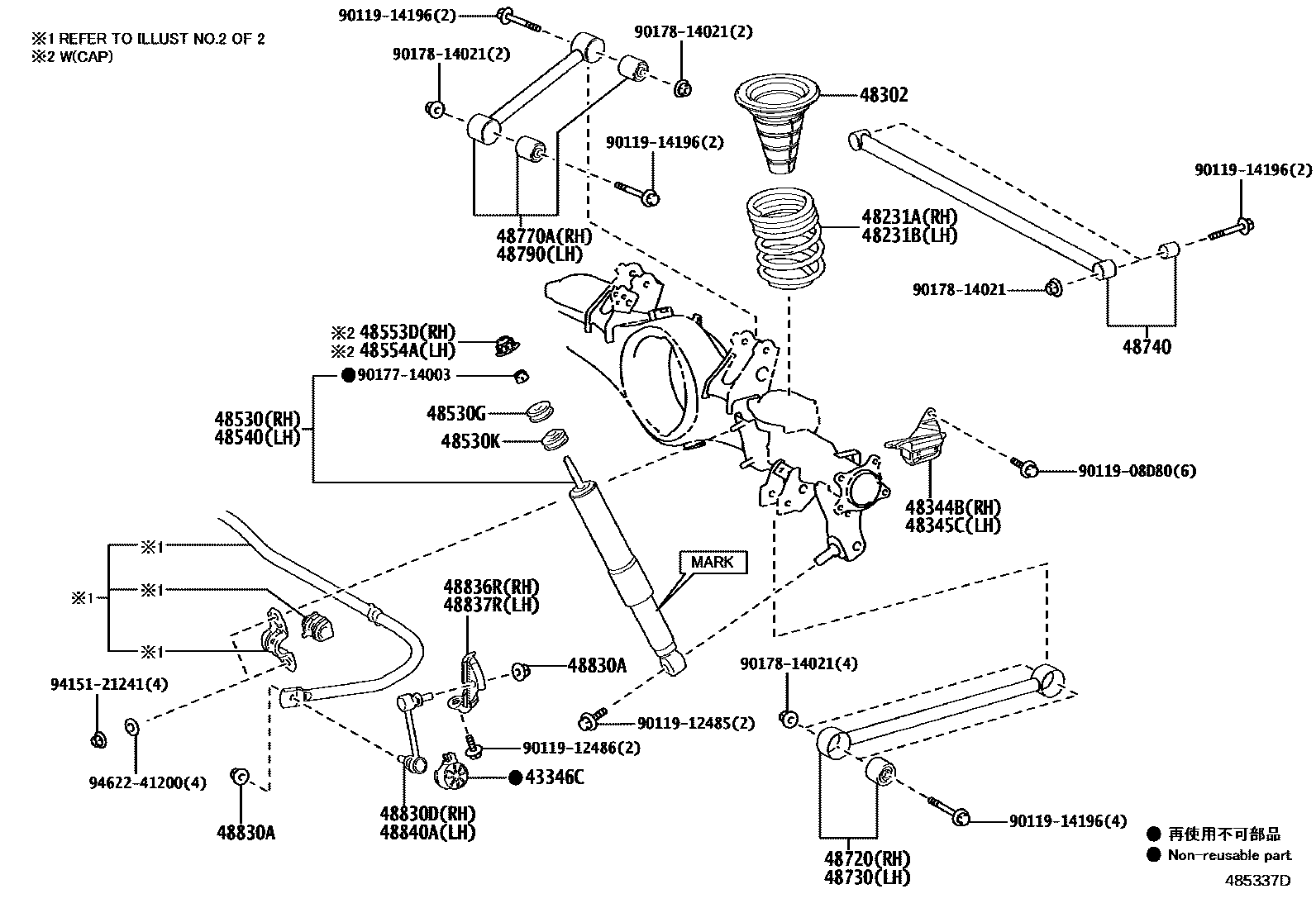

REAR SPRING & SHOCK ABSORBER
43346CPROTECTOR, LOWER BALL JOINT DUST COVER
main43346-60030×2iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202411
48231ASPRING, COIL, REAR RH
ELECTRICAL WINCH-WITH
main48231-60K00iFJA300..(A,Z)..ARL;FJA300..LHD..A..GEN;FJA300..LHD..5S..(V,Z);FJA300..RHD..(A,V)..GEN202104-202108
main48231-60K01iFJA300..5S..V; FJA300..LHD..7S..V..(EUR,GEN); FJA300..RHD..Z..GEN; FJA300..Z..EUR;VJA300..RHD..V;FJA300..LHD..A..GEN;VJA300..5S..(S,V,Z);FJA300..(A,S,Z)..ARL;FJA300..LHD..5S..(S,V);FJA300..RHD..(A,V)..GEN; VJA300..7S..V..EUR202411
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-GASOLINE(SINGLE TANK)
main48231-60K10iFJA300..7S..EUR; FJA300..RHD..(S,V)..GEN; FJA300..RHD..Z..GEN; FJA300..S..ARL; FJA300..V..ARL;VJA300..RHD..(S,Z);FJA300..RHD..Z..GEN;VJA300..LHD..S..GEN;VJA300..LHD..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202411
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-DIESEL(DUAL TANK); EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-DIESEL(DUAL TANK); INDIA SPEC
ELECTRICAL WINCH-WITH; EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
FUEL TANK-DIESEL(SINGLE TANK)
main48231-60L00supersedes 48231-60P60iFJA300..RHD..S..GEN; VJA300..S..GEN;FJA300..LHD..7S..S..GEN202107-202411
FUEL TANK-DIESEL(DUAL TANK)
FUEL TANK-DIESEL(SINGLE TANK)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS; FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS; REAR SEAT ENTERTAINMENT-WITH
FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)
48231BSPRING, COIL, REAR LH
main48231-60J80iFJA300..G..GEN;FJA300..RHD..S..GEN; FJA300..LHD..7S..S..GEN;FJA300..LHD..5S..(A,S,V)202107-202411
FUEL TANK-DIESEL(SINGLE TANK)
main48231-60J90supersedes 48231-60K01iFJA300,VJA300..5S..V; FJA300..5S..V; FJA300..RHD..Z..GEN; FJA300..Z..EUR;FJA300..LHD..7S..V..(EUR,GEN); VJA300..5S..S;FJA300..(A,S)..EUR;FJA300..RHD..V..GEN;VJA300..A..(EUR,GEN);FJA300..5S..(G,S)..(ARL,GEN); VJA300..7S..V..EUR202411
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK); EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS; FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS; FUEL TANK-GASOLINE(SINGLE TANK); SUSPENSION-E-KDSS
main48231-60K01iFJA300..7S..EUR; FJA300..LHD..7S..Z..GEN; FJA300..S..ARL; VJA300..RHD..(S,V);FJA300..RHD..7S..(A,S,Z);FJA300,VJA300..LHD..7S..(A,S)..GEN;FJA300,VJA300..5S..(V,Z)..(ARL,EUR)202411
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK); FUEL TANK-DIESEL(SINGLE TANK); INDIA SPEC
main48231-60K10iFJA300..V..ARL;VJA300..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(V,Z)..(EUR,GEN)202104-202411
FUEL TANK-DIESEL(SINGLE TANK)
AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); ELECTRICAL WINCH-WITH; EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
FUEL TANK-DIESEL(DUAL TANK)
FUEL TANK-DIESEL(SINGLE TANK)
48302SPRING SUB-ASSY, HOLLOW
main48302-60120×2iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202411
48344BSTOPPER, BUMPER, REAR RH
main48344-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
48345CSTOPPER, BUMPER, REAR LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60480
MARK 48530-60540
main48530-80C00iFJA300,VJA300..5S..V; VJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411
MARK 48530-60700; MARK 48530-60700,SUSPENSION-E-KDSS
MARK 48530-60580,EGYPT SPEC
MARK 48530-60490,EGYPT SPEC
MARK 48530-60510,UKRAINE SPEC
MARK 48530-60710,INDONESIA SPEC
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main48505-60071×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60480
MARK 48540-60010
main48540-69065iFJA300,VJA300..5S..V; VJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411
MARK 48540-60060; MARK 48540-60060,SUSPENSION-E-KDSS
MARK 48530-60490,EGYPT SPEC
MARK 48530-60510,MOLDOVA SPEC
MARK 48540-60030,EGYPT SPEC
MARK 48540-60070,INDONESIA SPEC
48553DCAP, REAR SHOCK ABSORBER, RH
main48553-60020iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR; GRJ300; GRJ300..A; GRJ300..A;FJA300,VJA300..(S,Z)..GCC202411
ARMENIA SPEC; AZERBAIJAN, GEORGEA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; TAJIKISTAN, TURKMENISTAN SPEC; UZBEKISTAN SPEC
48554ACAP, REAR SHOCK ABSORBER, LH
ARMENIA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; TAJIKISTAN, TURKMENISTAN SPEC; UZBEKISTAN SPEC
48720ARM ASSY, LOWER CONTROL, RH
main48720-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
main48710-60180iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
48790ARM ASSY, UPPER CONTROL, REAR LH
main48710-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
48830ANUT(FOR REAR STABILIZER LINK)
main94151-21241iFJA300,VJA300..5S..V; FJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN); GRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202411
SUSPENSION-E-KDSS
48830DLINK ASSY, REAR STABILIZER, RH
main48830-60070iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202411
48836RBRACKET, REAR STABILIZER END, RH
SUSPENSION-E-KDSS
main48836-60150iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202411
48837RBRACKET, REAR STABILIZER END, LH
main48837-60090iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
48840ALINK ASSY, REAR STABILIZER, LH
main48840-60010iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
9011908D80
main90119-08D80
9011912485
main90119-12485
9011912486
main90119-12486
9011914196
main90119-14196
9017714003
main90177-14003
9017814021
main90178-14021
9415121241
main94151-21241
9462241200
main94622-41200
30 parts on this diagram · 10 diagrams in section
