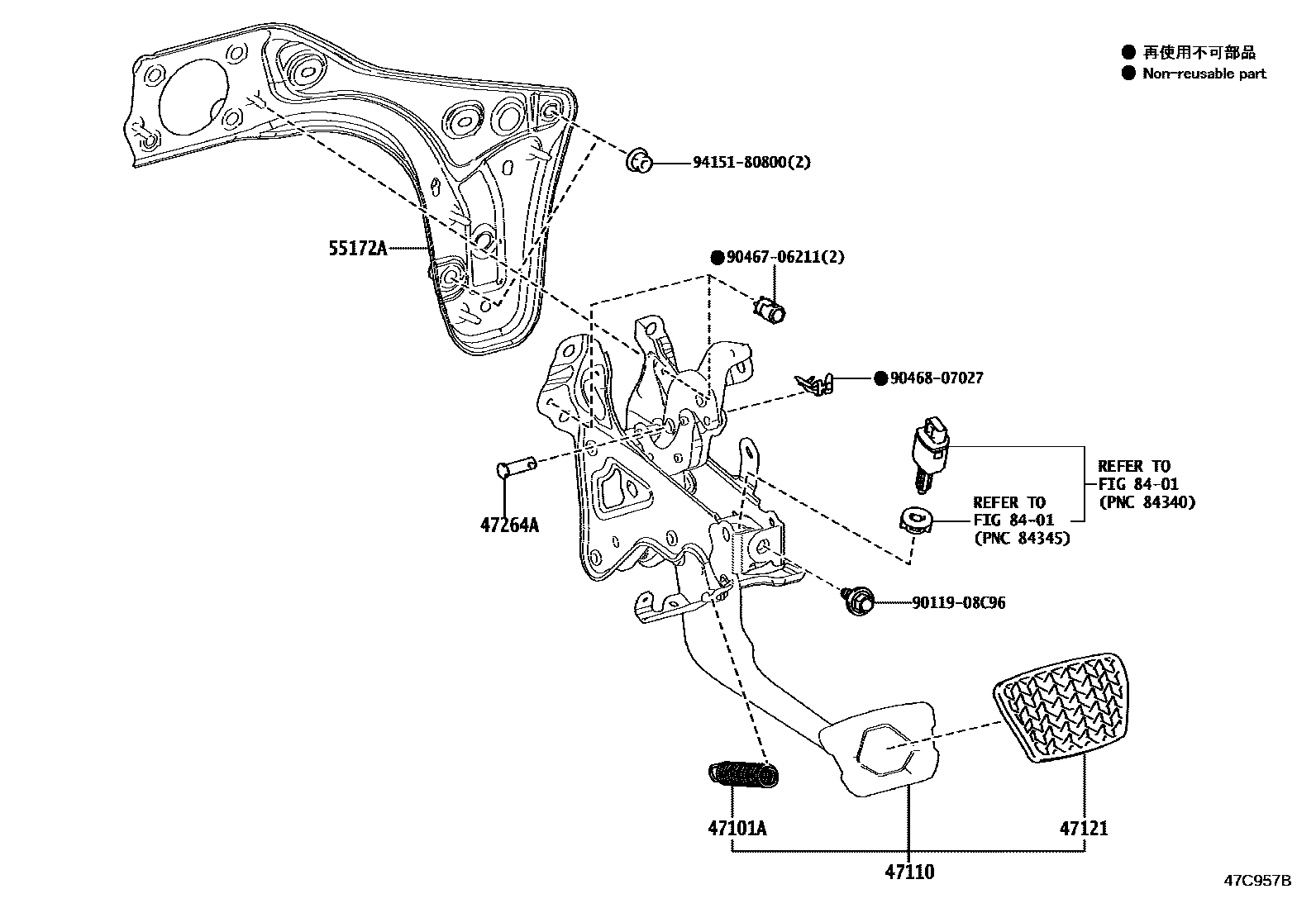

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-19006iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60710iFJA300,VJA300..RHD202104-202411

main47110-60720iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

47121PAD, BRAKE PEDAL

main47121-62010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

47264APIN(FOR PUSH ROD)

main90240-08082iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

55172ABASE, BRAKE PEDAL SUPPORT

main55172-60050iFJA300,GRJ300,VJA300..LHD202104-202211

main55172-60051iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411

main55172-60060iFJA300,VJA300..RHD202104-202211

main55172-60061iFJA300,VJA300..RHD202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
