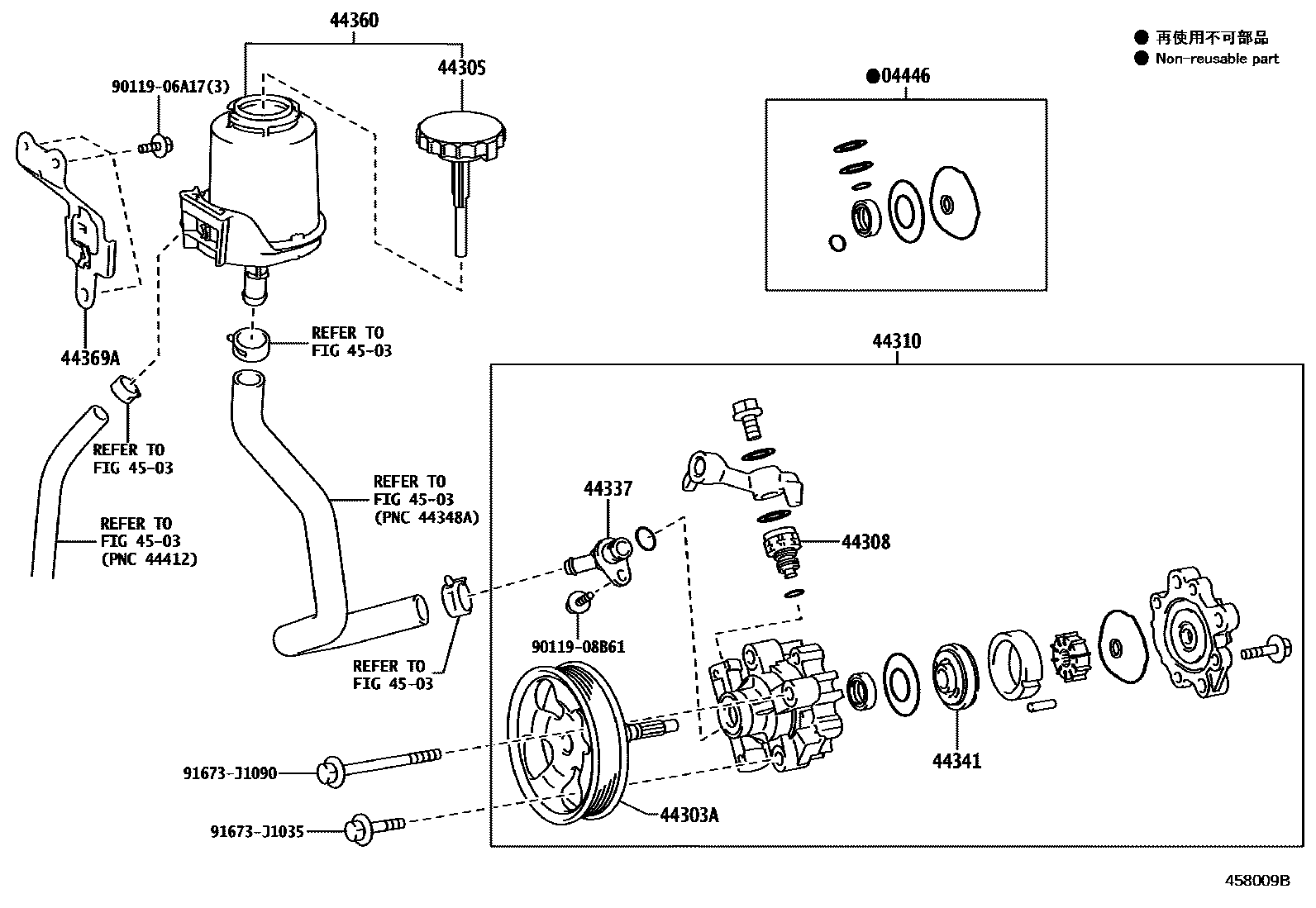

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-35080iGRJ300202411

main04446-60130iFJA300..5S..Z..GEN202107

main04446-60330iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60020iGRJ300202411

main44303-60040iVJA300..7S..S..EUR202104

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37031iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

44308UNION SUB-ASSY, PRESSURE PORT

main44308-60170iGRJ300202411

44310PUMP ASSY, VANE

main44310-60690iFJA300..5S..Z..GEN202107

main44310-60700iFJA300..EUR,GCC202411

main44310-60710iVJA300..5S..(S,Z);VJA300..7S..V..EUR202104-202411

TAJIKISTAN, TURKMENISTAN SPEC

main44310-60720iVJA300..5S..S;VJA300..S..GCC;VJA300..(A,G,V,Z)..(EUR,GCC)202411

main44310-60740iGRJ300202411

44337UNION, POWER STEERING SUCTION PORT

main44337-60200iGRJ300202104-202411

main44337-60280iFJA300..5S..Z..GEN202107

main44337-60290iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202411

44341PLATE, VANE PUMP SIDE, FRONT

main44341-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60350iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202411

main44360-60360iVJA300..7S..S..EUR202104

main44360-60370iGRJ300202411

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-60050iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202411

4503

9011906A17

main90119-06A17

9011908B61

main90119-08B61

91673J1035

main91673-J1035

91673J1090

main91673-J1090

14 parts on this diagram · 3 diagrams in section
