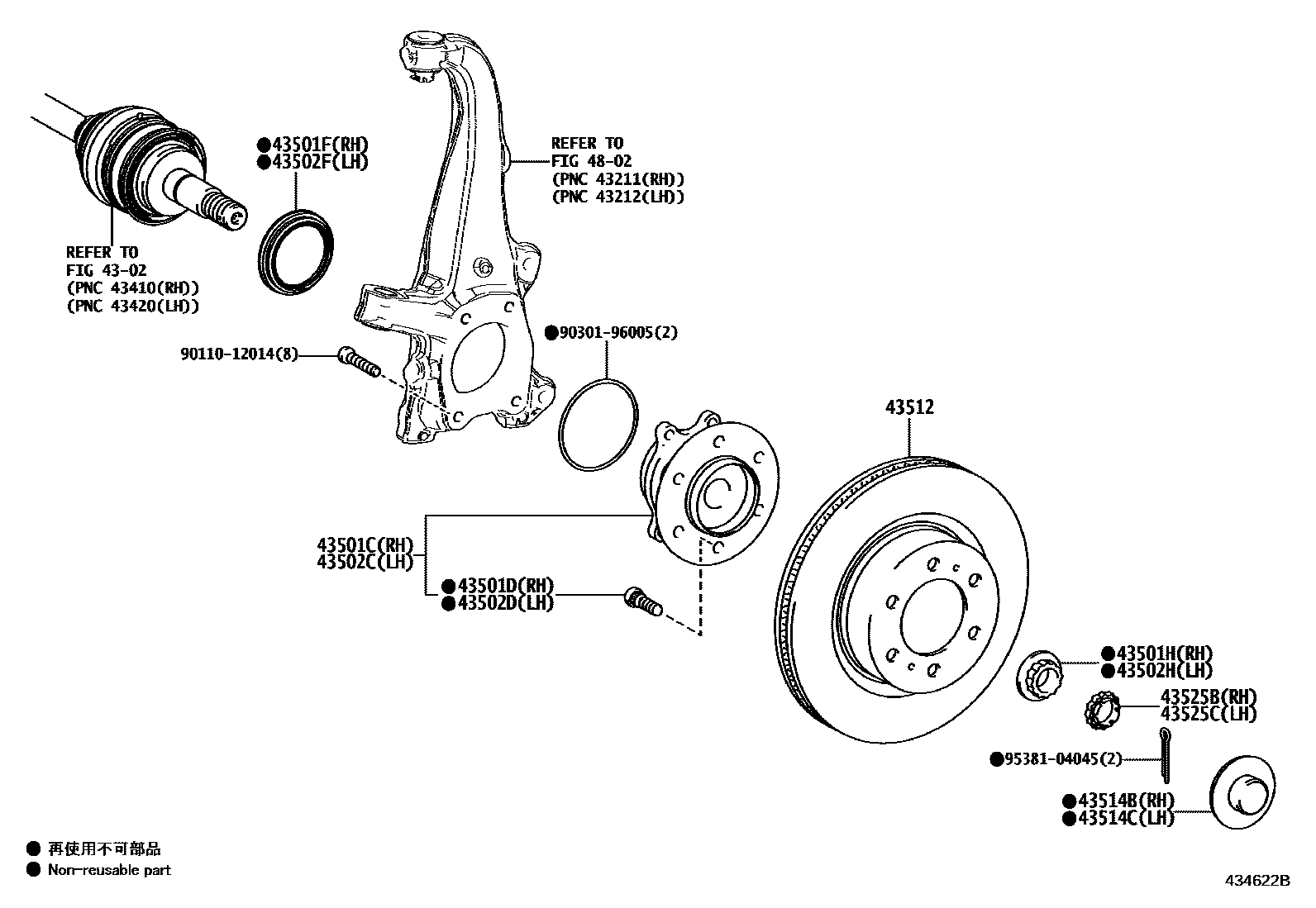

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×6iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90316-83001iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-32007iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×6iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90316-83001iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-32007iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43512DISC, FRONT

main43512-60280×2iGRJ300202104-202305

main43512-60281×2iFJA300..G..ARL;FJA300..RHD..A..GEN;FJA300..7S..(A,G)..GCC; GRJ300202411

TIRE & DISC WHEEL-245/75R17, 7J, STEEL

main43512-60290×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-60010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011012014

main90110-12014

9030196005

main90301-96005

9538104045

main95381-04045

18 parts on this diagram · 1 diagram in section
